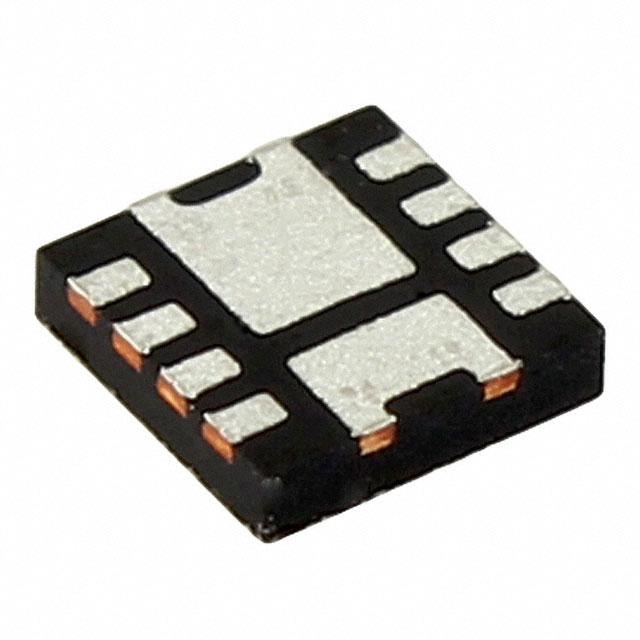

Dual N-Channel MOSFET, 26 A, 30 V, 8-Pin Power 33 onsemi FDPC8013S
Product Information
Maximum Continuous Drain Current:
26 A
Transistor Material:
Si
Width:
3.4mm
Transistor Configuration:
Series
Maximum Drain Source Voltage:
30 V
Package Type:
Power 33
Number of Elements per Chip:
2
Minimum Gate Threshold Voltage:
1.2V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
13 nC @ 10 V
Channel Type:
N
Length:
3.4mm
Pin Count:
8
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
2 W
Series:
PowerTrench
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
0.75mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
9.2 mΩ
FET Feature:
Logic Level Gate
HTSUS:
8541.21.0095
Vgs(th) (Max) @ Id:
3V @ 250µA
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
8-PowerWDFN
Rds On (Max) @ Id, Vgs:
6.4mOhm @ 13A, 10V
Gate Charge (Qg) (Max) @ Vgs:
13nC @ 10V
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Unaffected
Current - Continuous Drain (Id) @ 25°C:
13A, 26A
Configuration:
2 N-Channel (Dual)
Package:
Tape & Reel (TR)
Drain to Source Voltage (Vdss):
30V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Input Capacitance (Ciss) (Max) @ Vds:
827pF @ 15V
standardLeadTime:
32 Weeks
Mounting Type:
Surface Mount
Series:
PowerTrench®
Supplier Device Package:
Powerclip-33
Power - Max:
800mW, 900mW
Technology:
MOSFET (Metal Oxide)
Base Product Number:
FDPC8013
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search FDPC8013S on website for other similar products.
We accept all major payment methods for all products including ET21470134. Please check your shopping cart at the time of order.
You can order onsemi brand products with FDPC8013S directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Dual N-Channel MOSFET, 26 A, 30 V, 8-Pin Power 33 onsemi FDPC8013S. You can also check on our website or by contacting our customer support team for further order details on Dual N-Channel MOSFET, 26 A, 30 V, 8-Pin Power 33 onsemi FDPC8013S.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET21470134 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "onsemi" products on our website by using Enrgtech's Unique Manufacturing Part Number ET21470134.
Yes. We ship FDPC8013S Internationally to many countries around the world.
This is Dual N-Channel MOSFET 26 A 30 V 8-Pin Power 33 manufactured by onsemi. The manufacturer part number is FDPC8013S. While 26 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 3.4mm wide. The product offers series transistor configuration. It has a maximum of 30 v drain source voltage. The package is a sort of power 33. It consists of 2 elements per chip. Whereas its minimum gate threshold voltage includes 1.2v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 13 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 3.4mm. It contains 8 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 2 w maximum power dissipation. The product powertrench, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 0.75mm. Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 9.2 mω maximum drain source resistance. The FET features of the product include logic level gate. It is assigned with possible HTSUS value of 8541.21.0095. The typical Vgs (th) (max) of the product is 3v @ 250µa. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 8-powerwdfn. It has a maximum Rds On and voltage of 6.4mohm @ 13a, 10v. The maximum gate charge and given voltages include 13nc @ 10v. The product is rohs3 compliant. In addition, it is reach unaffected. The continuous current drain at 25°C is 13a, 26a. The product is available in 2 n-channel (dual) configuration. It is shipped in tape & reel (tr) package . The product has a 30v drain to source voltage. Its typical moisture sensitivity level is 1 (unlimited). The product's input capacitance at maximum includes 827pf @ 15v. It has a long 32 weeks standard lead time. The product powertrench®, is a highly preferred choice for users. powerclip-33 is the supplier device package value. The maximum power of the product is 800mw, 900mw. This product use mosfet (metal oxide) technology. Moreover, it corresponds to fdpc8013, a base product number of the product. The product is designated with the ear99 code number.
