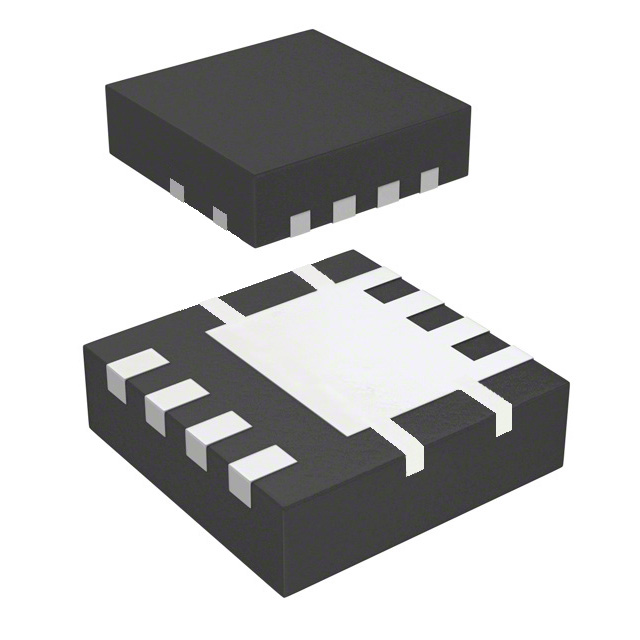

P-Channel MOSFET, 4.4 A, 100 V, 8-Pin Power 33 onsemi FDMC86139P
Product Information
Maximum Continuous Drain Current:
4.4 A
Transistor Material:
Si
Width:
3.3mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
100 V
Package Type:
Power 33
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
16 nC @ 10 V
Channel Type:
P
Length:
3.3mm
Pin Count:
8
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
40 W
Series:
PowerTrench
Maximum Gate Source Voltage:
-25 V, +25 V
Height:
0.725mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
104 mΩ
FET Feature:
-
HTSUS:
8541.29.0095
Vgs(th) (Max) @ Id:
4V @ 250µA
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
8-PowerWDFN
Rds On (Max) @ Id, Vgs:
67mOhm @ 4.4A, 10V
Gate Charge (Qg) (Max) @ Vgs:
22 nC @ 10 V
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Unaffected
edacadModel:
FDMC86139P Models
FET Type:
P-Channel
Drive Voltage (Max Rds On, Min Rds On):
6V, 10V
edacadModelUrl:
/en/models/4580881
Package:
Tape & Reel (TR)
Drain to Source Voltage (Vdss):
100 V
Vgs (Max):
±25V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Power Dissipation (Max):
2.3W (Ta), 40W (Tc)
Input Capacitance (Ciss) (Max) @ Vds:
1335 pF @ 50 V
standardLeadTime:
16 Weeks
Mounting Type:
Surface Mount
Series:
PowerTrench®
Supplier Device Package:
8-MLP (3.3x3.3)
Current - Continuous Drain (Id) @ 25°C:
4.4A (Ta), 15A (Tc)
Technology:
MOSFET (Metal Oxide)
Base Product Number:
FDMC86139
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search FDMC86139P on website for other similar products.
We accept all major payment methods for all products including ET21458977. Please check your shopping cart at the time of order.
You can order onsemi brand products with FDMC86139P directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of P-Channel MOSFET, 4.4 A, 100 V, 8-Pin Power 33 onsemi FDMC86139P. You can also check on our website or by contacting our customer support team for further order details on P-Channel MOSFET, 4.4 A, 100 V, 8-Pin Power 33 onsemi FDMC86139P.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET21458977 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "onsemi" products on our website by using Enrgtech's Unique Manufacturing Part Number ET21458977.
Yes. We ship FDMC86139P Internationally to many countries around the world.
This is P-Channel MOSFET 4.4 A 100 V 8-Pin Power 33 manufactured by onsemi. The manufacturer part number is FDMC86139P. While 4.4 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 3.3mm wide. The product offers single transistor configuration. It has a maximum of 100 v drain source voltage. The package is a sort of power 33. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 2v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 16 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 3.3mm. It contains 8 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 40 w maximum power dissipation. The product powertrench, is a highly preferred choice for users. It features a maximum gate source voltage of -25 v, +25 v. In addition, the height is 0.725mm. Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 104 mω maximum drain source resistance. It is assigned with possible HTSUS value of 8541.29.0095. The typical Vgs (th) (max) of the product is 4v @ 250µa. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 8-powerwdfn. It has a maximum Rds On and voltage of 67mohm @ 4.4a, 10v. The maximum gate charge and given voltages include 22 nc @ 10 v. The product is rohs3 compliant. In addition, it is reach unaffected. It carries FET type p-channel. The drive voltage (maximum and minimum Rds On) of the product includes 6v, 10v. It is shipped in tape & reel (tr) package . The product has a 100 v drain to source voltage. The maximum Vgs rate is ±25v. Its typical moisture sensitivity level is 1 (unlimited). The product carries maximum power dissipation 2.3w (ta), 40w (tc). The product's input capacitance at maximum includes 1335 pf @ 50 v. It has a long 16 weeks standard lead time. The product powertrench®, is a highly preferred choice for users. 8-mlp (3.3x3.3) is the supplier device package value. The continuous current drain at 25°C is 4.4a (ta), 15a (tc). This product use mosfet (metal oxide) technology. Moreover, it corresponds to fdmc86139, a base product number of the product. The product is designated with the ear99 code number.
