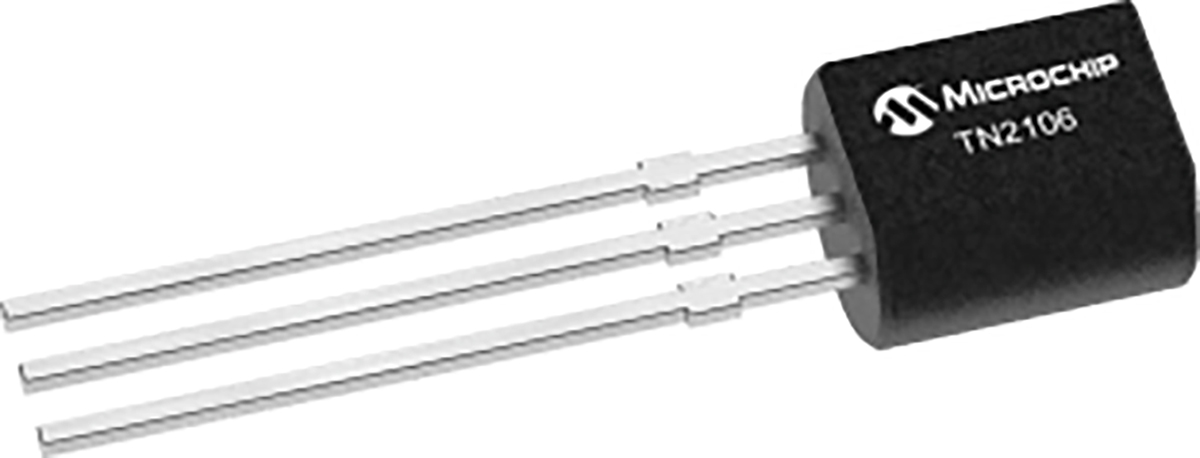

N-Channel MOSFET, 300 mA, 60 V, 3-Pin TO-92 Microchip TN2106N3-G

TN2106N3-G N-Channel MOSFET, 300 mA, 60 V, 3-Pin TO-92 Microchip
Microchip

Product Information

Maximum Drain Source Voltage:
60 V
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
740 mW
Series:
TN2106
Maximum Gate Source Voltage:
20 V
Maximum Gate Threshold Voltage:
2V
Height:
5.33mm
Width:
4.06mm
Length:
5.08mm
Maximum Drain Source Resistance:
5 Ω
Package Type:
TO-92
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
300 mA
Minimum Gate Threshold Voltage:
0.6V
Forward Diode Voltage:
1.8V
Channel Type:
N
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
Checking for live stock

This is N-Channel MOSFET 300 mA 60 V 3-Pin TO-92 manufactured by Microchip. The manufacturer part number is TN2106N3-G. It has a maximum of 60 v drain source voltage. The product is available in through hole configuration. The product carries enhancement channel mode. Provides up to 740 mw maximum power dissipation. The product tn2106, is a highly preferred choice for users. It features a maximum gate source voltage of 20 v. The product carries 2v of maximum gate threshold voltage. In addition, the height is 5.33mm. Furthermore, the product is 4.06mm wide. Its accurate length is 5.08mm. It provides up to 5 ω maximum drain source resistance. The package is a sort of to-92. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. While 300 ma of maximum continuous drain current. Whereas its minimum gate threshold voltage includes 0.6v. Its forward diode voltage is 1.8v . The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.
