Automotive Standard:
AEC-Q101
Maximum Drain Source Voltage:
200 (Channel 3) V, 40 (Channel 1) V, 40 (Channel 2) V
Typical Gate Charge @ Vgs:
14 nC @ 100 V (Channel 3), 23 nC @ 20 V (Channel 2), 30.2 nC @ 20 V (Channel 1)
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
48 W, 48 W, 60 W
Maximum Gate Source Voltage:
20 V
Channel Type:
NPN
Maximum Gate Threshold Voltage:
2.5 (Channel 1) V, 2.5 (Channel 2) V, 3.5 (Channel 3) V
Maximum Drain Source Resistance:
0.0135 (Channel 2) Ω, 0.048 (Channel 1) Ω, 0.06 (Channel 3) Ω

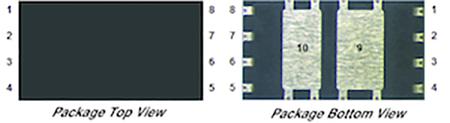

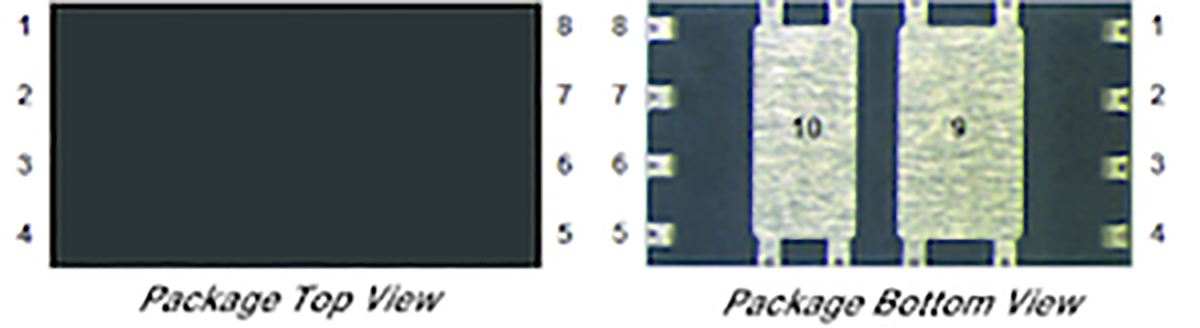

Package Type:
Triple Die
Number of Elements per Chip:
3
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
30 A, 30 A, 20 A
Minimum Gate Threshold Voltage:
1.5 (Channel 1) V, 1.5 (Channel 2) V, 2.5 (Channel 3) V
Maximum Operating Temperature:
+175 °C
Pin Count:
10
Transistor Configuration:
Common Drain
This is 40 V N- and P-Channel Common Drain MOSFE manufactured by Vishay. The manufacturer part number is SQUN702E-T1_GE3. The product complies with automotive standard - aec-q101. It has a maximum of 200 (channel 3) v, 40 (channel 1) v, 40 (channel 2) v drain source voltage. With a typical gate charge at Vgs includes 14 nc @ 100 v (channel 3), 23 nc @ 20 v (channel 2), 30.2 nc @ 20 v (channel 1). The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 48 w, 48 w, 60 w maximum power dissipation. It features a maximum gate source voltage of 20 v. The product is available in [Cannel Type] channel. The product carries 2.5 (channel 1) v, 2.5 (channel 2) v, 3.5 (channel 3) v of maximum gate threshold voltage. It provides up to 0.0135 (channel 2) ω, 0.048 (channel 1) ω, 0.06 (channel 3) ω maximum drain source resistance. The package is a sort of triple die. It consists of 3 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. While 30 a, 30 a, 20 a of maximum continuous drain current. Whereas its minimum gate threshold voltage includes 1.5 (channel 1) v, 1.5 (channel 2) v, 2.5 (channel 3) v. It has a maximum operating temperature of +175 °c. It contains 10 pins. The product offers common drain transistor configuration.
