Maximum Continuous Drain Current:
20 A, 60 A
Width:
4.47mm
Automotive Standard:
AEC-Q101
Transistor Configuration:
Dual
Maximum Drain Source Voltage:
40 (Channel 1) V, 40 (Channel 2) V
Maximum Gate Threshold Voltage:
2.3 (Channel 1) V, 2.4 (Channel 2) V
Package Type:
PowerPAK SO-8L Dual
Number of Elements per Chip:
2
Minimum Gate Threshold Voltage:
1.3 (Channel 1) V, 1.4 (Channel 2) V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
22 nC @ 10 V (Channel 1), 48.2 nC @ 10 V (Channel 2)
Channel Type:
N
Length:
5mm
Pin Count:
6
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
27 W, 48 W
Maximum Gate Source Voltage:
±20 V
Height:
1.01mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
0.0067 (Channel 2) Ω, 0.016 (Channel 1) Ω

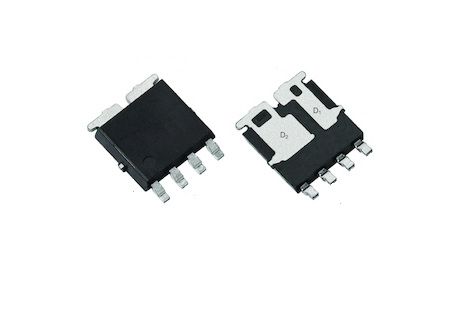

This is Automotive Dual N-Channel 40 V (D-S) 175 manufactured by Vishay. The manufacturer part number is SQJ208EP-T1_GE3. While 20 a, 60 a of maximum continuous drain current. Furthermore, the product is 4.47mm wide. The product complies with automotive standard - aec-q101. The product offers dual transistor configuration. It has a maximum of 40 (channel 1) v, 40 (channel 2) v drain source voltage. The product carries 2.3 (channel 1) v, 2.4 (channel 2) v of maximum gate threshold voltage. The package is a sort of powerpak so-8l dual. It consists of 2 elements per chip. Whereas its minimum gate threshold voltage includes 1.3 (channel 1) v, 1.4 (channel 2) v. It has a maximum operating temperature of +175 °c. With a typical gate charge at Vgs includes 22 nc @ 10 v (channel 1), 48.2 nc @ 10 v (channel 2). The product is available in [Cannel Type] channel. Its accurate length is 5mm. It contains 6 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 27 w, 48 w maximum power dissipation. It features a maximum gate source voltage of ±20 v. In addition, the height is 1.01mm. Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 0.0067 (channel 2) ω, 0.016 (channel 1) ω maximum drain source resistance.
