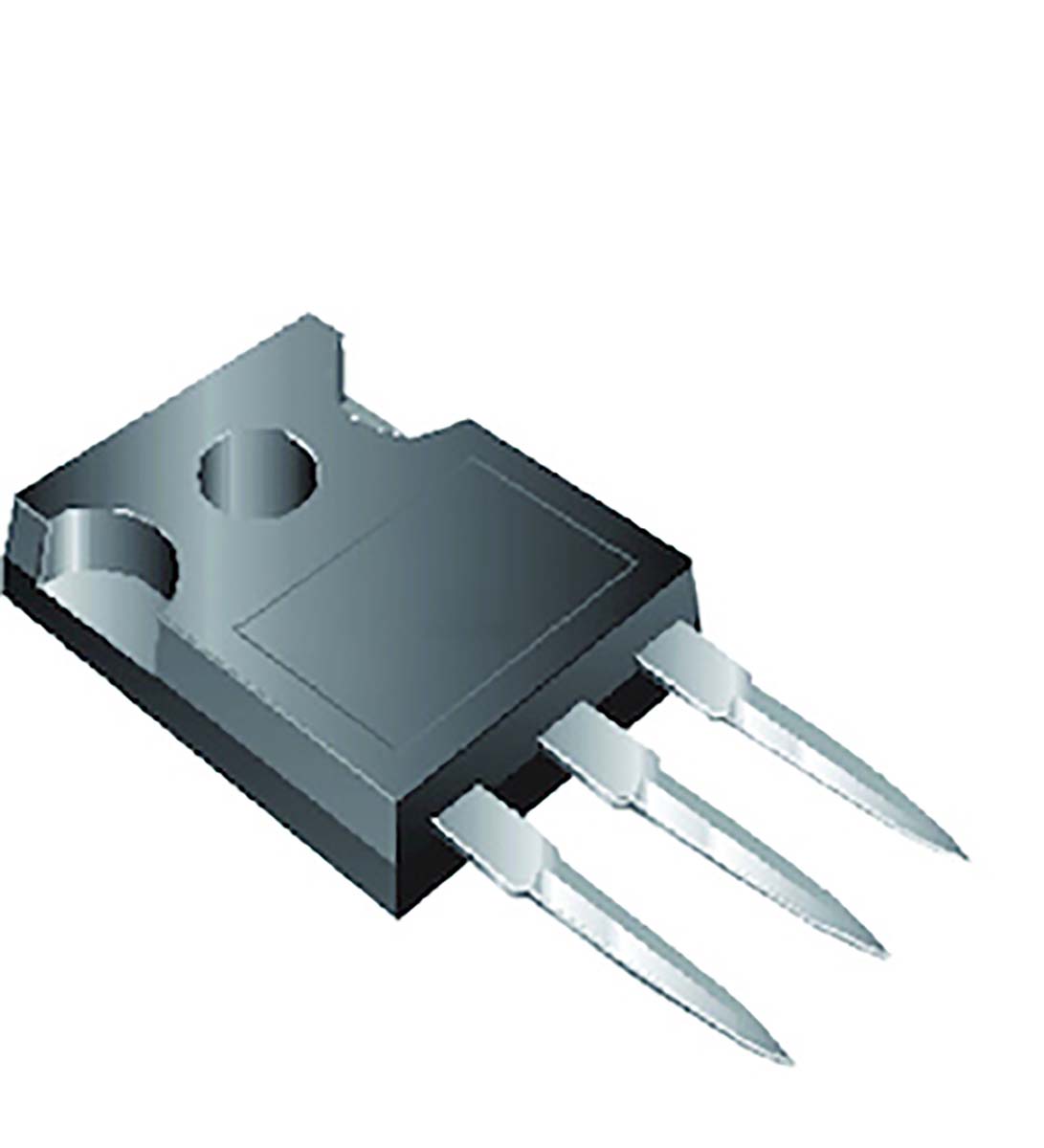

E Series Power MOSFET TO-247AC

SIHG21N80AE-GE3 E Series Power MOSFET TO-247AC
SIHG21N80AE-GE3 E Series Power MOSFET TO-247AC
Vishay

Product Information

Maximum Drain Source Voltage:
800 V
Typical Gate Charge @ Vgs:
48 nC @ 10 V
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
32 W
Maximum Gate Source Voltage:
±30 V
Maximum Gate Threshold Voltage:
4V
Channel Type:
N
Width:
5.31mm
Length:
15.87mm
Maximum Drain Source Resistance:
235 mΩ
Package Type:
TO-247AC
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
17.4 A
Minimum Gate Threshold Voltage:
2V
Forward Diode Voltage:
1.2V
Height:
20.82mm
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
Checking for live stock

This is E Series Power MOSFET TO-247AC manufactured by Vishay. The manufacturer part number is SIHG21N80AE-GE3. It has a maximum of 800 v drain source voltage. With a typical gate charge at Vgs includes 48 nc @ 10 v. The product is available in through hole configuration. The product carries enhancement channel mode. Provides up to 32 w maximum power dissipation. It features a maximum gate source voltage of ±30 v. The product carries 4v of maximum gate threshold voltage. The product is available in [Cannel Type] channel. Furthermore, the product is 5.31mm wide. Its accurate length is 15.87mm. It provides up to 235 mω maximum drain source resistance. The package is a sort of to-247ac. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. While 17.4 a of maximum continuous drain current. Whereas its minimum gate threshold voltage includes 2v. Its forward diode voltage is 1.2v . In addition, the height is 20.82mm. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.

pdf icon
Datasheet SIHG21N80AE-GE3(Technical Reference)
