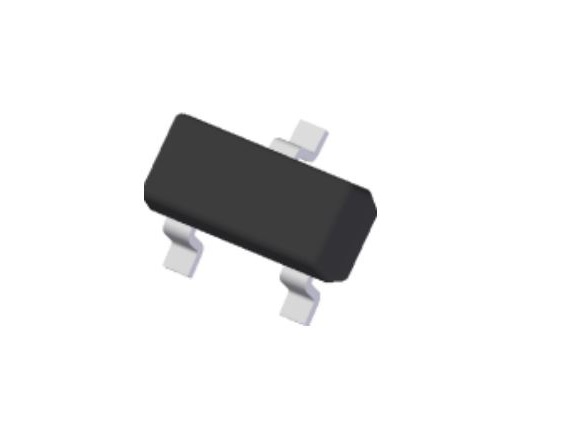

MOSFET BVDSS: 8V-24V SOT23 T&R 3K

DMP2120U-7 MOSFET BVDSS: 8V-24V SOT23 T&R 3K
DiodesZetex

Product Information

Maximum Continuous Drain Current:
3.8 A
Width:
1.4mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
20 V
Maximum Gate Threshold Voltage:
1V
Package Type:
SOT-23
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
0.4V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
6.3 nC @ 4.5V
Channel Type:
P
Length:
3mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
1.3 W
Maximum Gate Source Voltage:
±8 V
Height:
1mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.1V
Maximum Drain Source Resistance:
150 mΩ
RoHs Compliant
Checking for live stock

This is MOSFET BVDSS: 8V-24V SOT23 T&R 3K manufactured by DiodesZetex. The manufacturer part number is DMP2120U-7. While 3.8 a of maximum continuous drain current. Furthermore, the product is 1.4mm wide. The product offers single transistor configuration. It has a maximum of 20 v drain source voltage. The product carries 1v of maximum gate threshold voltage. The package is a sort of sot-23. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 0.4v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 6.3 nc @ 4.5v. The product is available in [Cannel Type] channel. Its accurate length is 3mm. It contains 3 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 1.3 w maximum power dissipation. It features a maximum gate source voltage of ±8 v. In addition, the height is 1mm. Whereas, the minimum operating temperature of the product is -55 °c. Its forward diode voltage is 1.1v . It provides up to 150 mω maximum drain source resistance.
