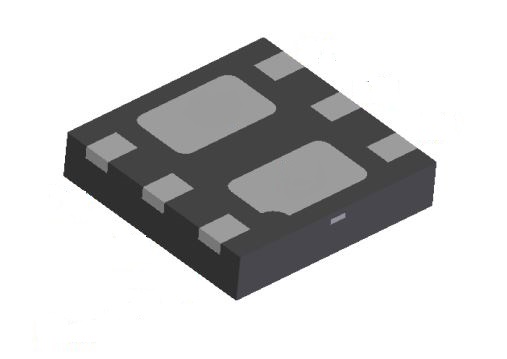

MOSFET BVDSS: 8V-24V U-DFN2020-6 T&R 3K

DMP2075UFDB-7 MOSFET BVDSS: 8V-24V U-DFN2020-6 T&R 3K
DiodesZetex

Product Information

Maximum Drain Source Voltage:
20 V
Typical Gate Charge @ Vgs:
15 nC @ 8V
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
1.4 W
Maximum Gate Source Voltage:
±8 V
Maximum Gate Threshold Voltage:
1.4V
Height:
0.55mm
Width:
2.07mm
Length:
2.07mm
Maximum Drain Source Resistance:
137 mΩ
Package Type:
U-DFN2020
Number of Elements per Chip:
2
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
3.8 A
Minimum Gate Threshold Voltage:
0.35V
Forward Diode Voltage:
1.2V
Channel Type:
P
Maximum Operating Temperature:
+150 °C
Pin Count:
6
RoHs Compliant
Checking for live stock

This is MOSFET BVDSS: 8V-24V U-DFN2020-6 T&R 3K manufactured by DiodesZetex. The manufacturer part number is DMP2075UFDB-7. It has a maximum of 20 v drain source voltage. With a typical gate charge at Vgs includes 15 nc @ 8v. The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 1.4 w maximum power dissipation. It features a maximum gate source voltage of ±8 v. The product carries 1.4v of maximum gate threshold voltage. In addition, the height is 0.55mm. Furthermore, the product is 2.07mm wide. Its accurate length is 2.07mm. It provides up to 137 mω maximum drain source resistance. The package is a sort of u-dfn2020. It consists of 2 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. While 3.8 a of maximum continuous drain current. Whereas its minimum gate threshold voltage includes 0.35v. Its forward diode voltage is 1.2v . The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 6 pins.

pdf icon
Datasheet DMP2075UFDB-7(Technical Reference)
