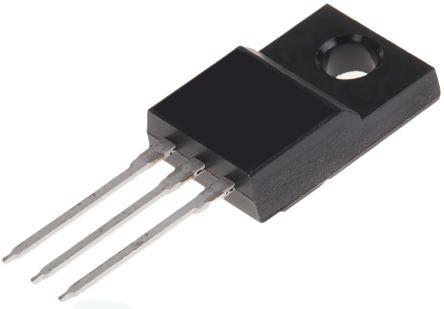

Toshiba TK5A60W5,S5VX(M N-channel MOSFET, 4.5 A, 600 V DTMOSIV, 3-Pin TO-220SIS

TK5A60W5-S5VX-M Toshiba TK5A60W5,S5VX(M N-channel MOSFET, 4.5 A, 600 V DTMOSIV, 3-Pin TO-220SIS
TK5A60W5,S5VX(M
Toshiba

Product Information

Maximum Continuous Drain Current:
4.5 A
Transistor Material:
Si
Width:
4.5mm
Maximum Drain Source Voltage:
600 V
Maximum Gate Threshold Voltage:
4.5V
Package Type:
TO-220SIS
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
3V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
11.5 nC @ 10 V
Channel Type:
N
Length:
10mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Through Hole
Maximum Power Dissipation:
30 W
Series:
DTMOSIV
Maximum Gate Source Voltage:
-30 V, +30 V
Height:
15mm
Forward Diode Voltage:
1.7V
Maximum Drain Source Resistance:
950 mΩ
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 4.5 A 600 V DTMOSIV 3-Pin TO-220SIS manufactured by Toshiba. The manufacturer part number is TK5A60W5,S5VX(M. While 4.5 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 4.5mm wide. It has a maximum of 600 v drain source voltage. The product carries 4.5v of maximum gate threshold voltage. The package is a sort of to-220sis. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 3v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 11.5 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 10mm. It contains 3 pins. The product carries enhancement channel mode. The product is available in through hole configuration. Provides up to 30 w maximum power dissipation. The product dtmosiv, is a highly preferred choice for users. It features a maximum gate source voltage of -30 v, +30 v. In addition, the height is 15mm. Its forward diode voltage is 1.7v . It provides up to 950 mω maximum drain source resistance.

pdf icon
TK5A60W5,S5VX(M(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
