Category:
Switching Regulator
Dimensions:
15.94 x 5.02 x 20.95mm
Maximum Continuous Drain Current:
13.7 A
Transistor Material:
Si
Width:
5.02mm
Maximum Drain Source Voltage:
650 V
Maximum Gate Threshold Voltage:
4.5V
Package Type:
TO-247
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
3V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
40 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
1300 pF @ 300 V
Length:
15.94mm
Pin Count:
3
Typical Turn-Off Delay Time:
110 ns
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
130 W
Series:
DTMOSIV
Maximum Gate Source Voltage:
-30 V, +30 V
Height:
20.95mm
Typical Turn-On Delay Time:
90 ns
Forward Diode Voltage:
1.7V
Maximum Drain Source Resistance:
300 mΩ

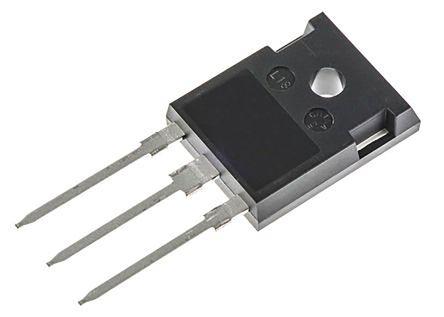

This is N-channel MOSFET 13.7 A 650 V DTMOSIV 3-Pin TO-247 manufactured by Toshiba. The manufacturer part number is TK14N65W5,S1F(S. It is of switching regulator category . The given dimensions of the product include 15.94 x 5.02 x 20.95mm. While 13.7 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 5.02mm wide. It has a maximum of 650 v drain source voltage. The product carries 4.5v of maximum gate threshold voltage. The package is a sort of to-247. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 3v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 40 nc @ 10 v. The product is available in [Cannel Type] channel. Its typical input capacitance @ Vds is 1300 pf @ 300 v . Its accurate length is 15.94mm. It contains 3 pins. Whereas, its typical turn-off delay time is about 110 ns . The product is available in through hole configuration. The product carries enhancement channel mode. Provides up to 130 w maximum power dissipation. The product dtmosiv, is a highly preferred choice for users. It features a maximum gate source voltage of -30 v, +30 v. In addition, the height is 20.95mm. In addition, it has a typical 90 ns turn-on delay time . Its forward diode voltage is 1.7v . It provides up to 300 mω maximum drain source resistance.
