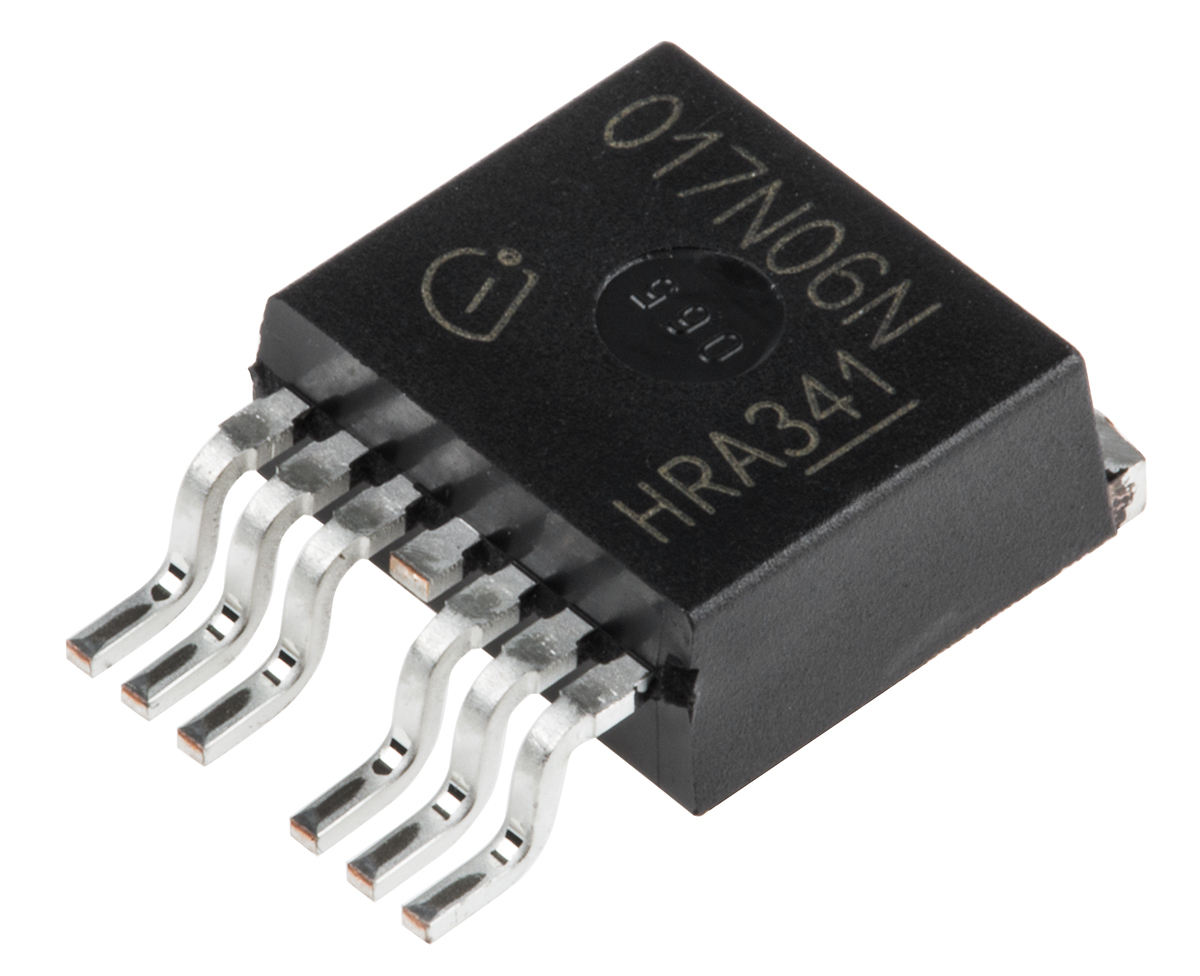

Infineon IPB017N06N3GATMA1 N-channel MOSFET, 180 A, 60 V OptiMOS 3, 7-Pin D2PAK

IPB017N06N3GATMA1 Infineon N-channel MOSFET, 180 A, 60 V OptiMOS 3, 7-Pin D2PAK
IPB017N06N3GATMA1 Infineon N-channel MOSFET, 180 A, 60 V OptiMOS 3, 7-Pin D2PAK
Infineon

Product Information

Maximum Drain Source Voltage:
60 V
Typical Gate Charge @ Vgs:
206 nC @ 10 V
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
250 W
Series:
OptiMOS™ 3
Maximum Gate Source Voltage:
-20 V, +20 V
Maximum Gate Threshold Voltage:
4V
Height:
4.57mm
Width:
9.45mm
Length:
10.31mm
Maximum Drain Source Resistance:
1.7 mΩ
Package Type:
D2PAK-7
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
180 A
Minimum Gate Threshold Voltage:
2V
Channel Type:
N
Maximum Operating Temperature:
+175 °C
Pin Count:
7
Transistor Configuration:
Single
Checking for live stock

This is N-channel MOSFET 180 A 60 V OptiMOS 3 7-Pin D2PAK manufactured by Infineon. The manufacturer part number is IPB017N06N3GATMA1. It has a maximum of 60 v drain source voltage. With a typical gate charge at Vgs includes 206 nc @ 10 v. The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 250 w maximum power dissipation. The product optimos™ 3, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. The product carries 4v of maximum gate threshold voltage. In addition, the height is 4.57mm. Furthermore, the product is 9.45mm wide. Its accurate length is 10.31mm. It provides up to 1.7 mω maximum drain source resistance. The package is a sort of d2pak-7. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. While 180 a of maximum continuous drain current. Whereas its minimum gate threshold voltage includes 2v. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +175 °c. It contains 7 pins. The product offers single transistor configuration.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship IPB017N06N3GATMA1 Internationally to many countries around the world.
Yes. You can also search IPB017N06N3GATMA1 on website for other similar products.
We accept all major payment methods for all products including ET16793097. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16793097 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Infineon" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16793097.
You can order Infineon brand products with IPB017N06N3GATMA1 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Infineon IPB017N06N3GATMA1 N-channel MOSFET, 180 A, 60 V OptiMOS 3, 7-Pin D2PAK. You can also check on our website or by contacting our customer support team for further order details on Infineon IPB017N06N3GATMA1 N-channel MOSFET, 180 A, 60 V OptiMOS 3, 7-Pin D2PAK.
