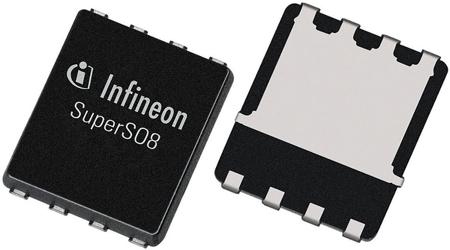

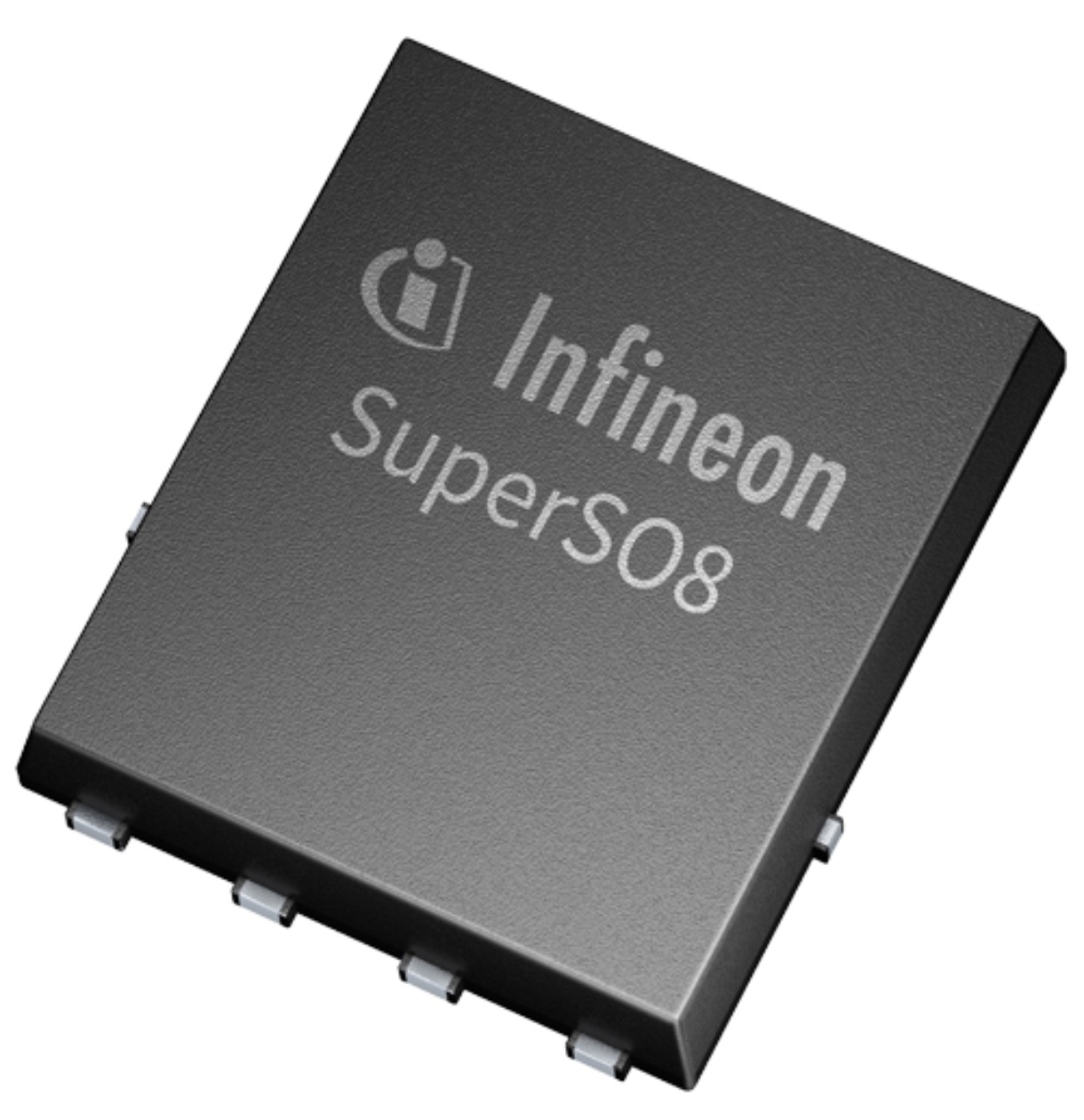

Infineon BSC009NE2LS5ATMA1 N-channel MOSFET, 100 A, 25 V OptiMOS 5, 8-Pin SuperSO
Product Information
Maximum Continuous Drain Current:
100 A
Transistor Material:
Si
Width:
6.35mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
25 V
Maximum Gate Threshold Voltage:
2V
Package Type:
SuperSO8 5 x 6
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1.2V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
43 nC @ 10 V
Channel Type:
N
Length:
5.49mm
Pin Count:
8
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
74 W
Series:
OptiMOS 5
Maximum Gate Source Voltage:
+16 V
Height:
1.1mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1V
Maximum Drain Source Resistance:
1.25 mΩ
Checking for live stock
FAQs
Yes. You can also search BSC009NE2LS5ATMA1 on website for other similar products.
We accept all major payment methods for all products including ET16792430. Please check your shopping cart at the time of order.
You can order Infineon brand products with BSC009NE2LS5ATMA1 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Infineon BSC009NE2LS5ATMA1 N-channel MOSFET, 100 A, 25 V OptiMOS 5, 8-Pin SuperSO. You can also check on our website or by contacting our customer support team for further order details on Infineon BSC009NE2LS5ATMA1 N-channel MOSFET, 100 A, 25 V OptiMOS 5, 8-Pin SuperSO.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16792430 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Infineon" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16792430.
Yes. We ship BSC009NE2LS5ATMA1 Internationally to many countries around the world.
This is N-channel MOSFET 100 A 25 V OptiMOS 5 8-Pin SuperSO manufactured by Infineon. The manufacturer part number is BSC009NE2LS5ATMA1. While 100 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 6.35mm wide. The product offers single transistor configuration. It has a maximum of 25 v drain source voltage. The product carries 2v of maximum gate threshold voltage. The package is a sort of superso8 5 x 6. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 1.2v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 43 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 5.49mm. It contains 8 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 74 w maximum power dissipation. The product optimos 5, is a highly preferred choice for users. It features a maximum gate source voltage of +16 v. In addition, the height is 1.1mm. Whereas, the minimum operating temperature of the product is -55 °c. Its forward diode voltage is 1v . It provides up to 1.25 mω maximum drain source resistance.
