Category:
Power MOSFET
Dimensions:
10 x 4.6 x 15mm
Maximum Continuous Drain Current:
11 A
Width:
4.6mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
600 V
Maximum Gate Threshold Voltage:
4V
Package Type:
ITO-220S
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
20.5 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
1040 pF @ 100 V
Length:
10mm
Pin Count:
3
Typical Turn-Off Delay Time:
70 ns
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
33 W
Maximum Gate Source Voltage:
±30 V
Height:
15mm
Typical Turn-On Delay Time:
24 ns
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.4V
Maximum Drain Source Resistance:
380 mΩ

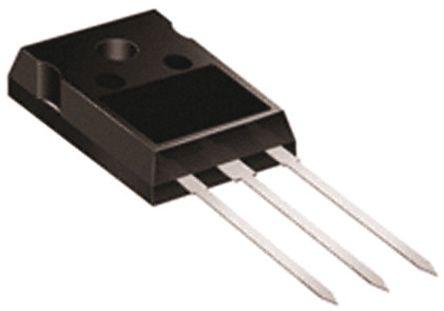

This is Taiwan Semi N-channel MOSFET 11 A 600 V 3-Pin ITO-220S manufactured by Taiwan Semiconductor. The manufacturer part number is TSM60N380CI C0G. It is of power mosfet category . The given dimensions of the product include 10 x 4.6 x 15mm. While 11 a of maximum continuous drain current. Furthermore, the product is 4.6mm wide. The product offers single transistor configuration. It has a maximum of 600 v drain source voltage. The product carries 4v of maximum gate threshold voltage. The package is a sort of ito-220s. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 2v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 20.5 nc @ 10 v. The product is available in [Cannel Type] channel. Its typical input capacitance @ Vds is 1040 pf @ 100 v . Its accurate length is 10mm. It contains 3 pins. Whereas, its typical turn-off delay time is about 70 ns . The product is available in through hole configuration. The product carries enhancement channel mode. Provides up to 33 w maximum power dissipation. It features a maximum gate source voltage of ±30 v. In addition, the height is 15mm. In addition, it has a typical 24 ns turn-on delay time . Whereas, the minimum operating temperature of the product is -55 °c. Its forward diode voltage is 1.4v . It provides up to 380 mω maximum drain source resistance.
