Forward Voltage Vf:
-0.7V
Width:
2 mm
Automotive Standard:
AEC-Q100, AEC-Q200, AEC-Q101
Transistor Configuration:
Dual
Typical Gate Charge Qg @ Vgs:
10.2nC

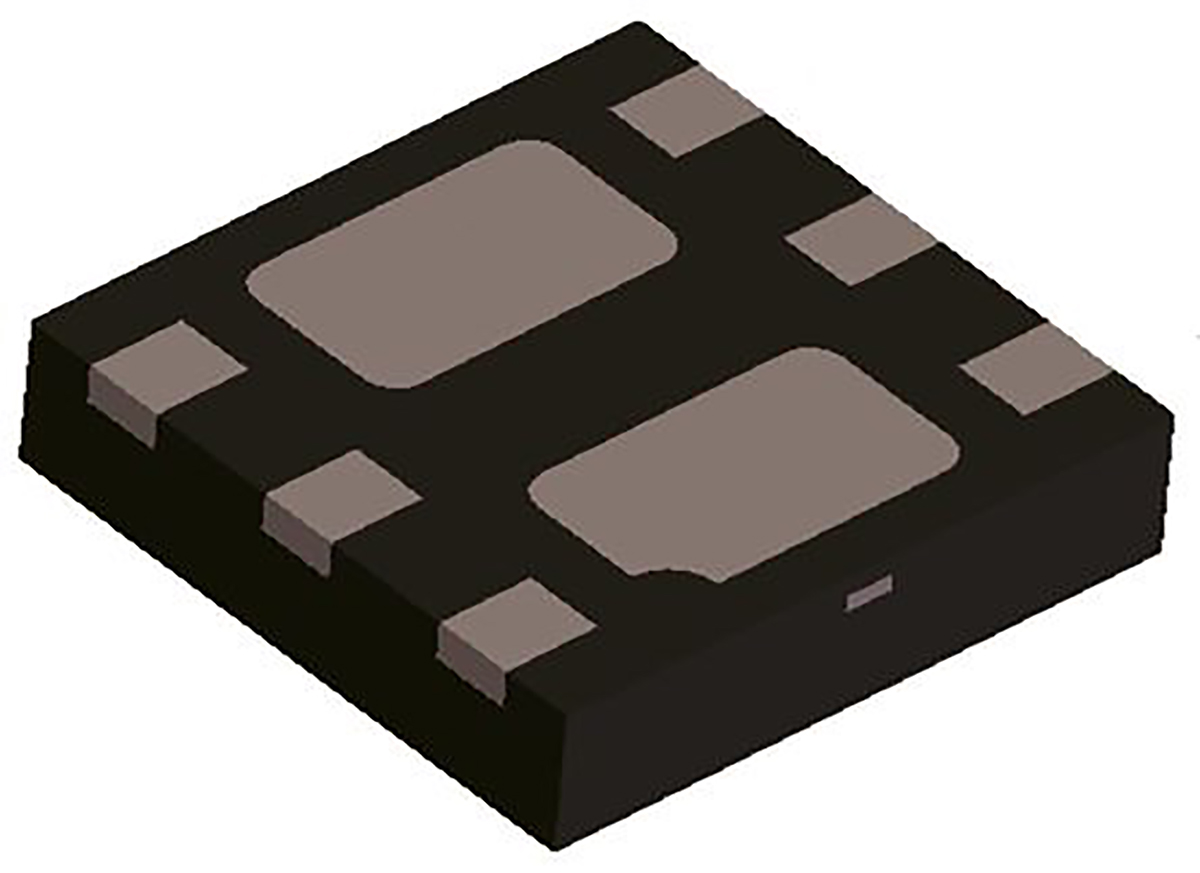

Package Type:
DFN
Number of Elements per Chip:
2
Maximum Continuous Drain Current Id:
-4.5A
Product Type:
MOSFET
Maximum Operating Temperature:
-55°C
Maximum Drain Source Voltage Vds:
20V
Channel Type:
Type P
Length:
2mm
Standards/Approvals:
UL 94V-0, RoHS, AEC-Q101, J-STD-020, MIL-STD-202
Pin Count:
6
Mount Type:
Surface
Maximum Power Dissipation Pd:
1.5W
Channel Mode:
Enhancement
Maximum Gate Source Voltage Vgs:
12 V
Height:
0.56mm
Minimum Operating Temperature:
150°C
