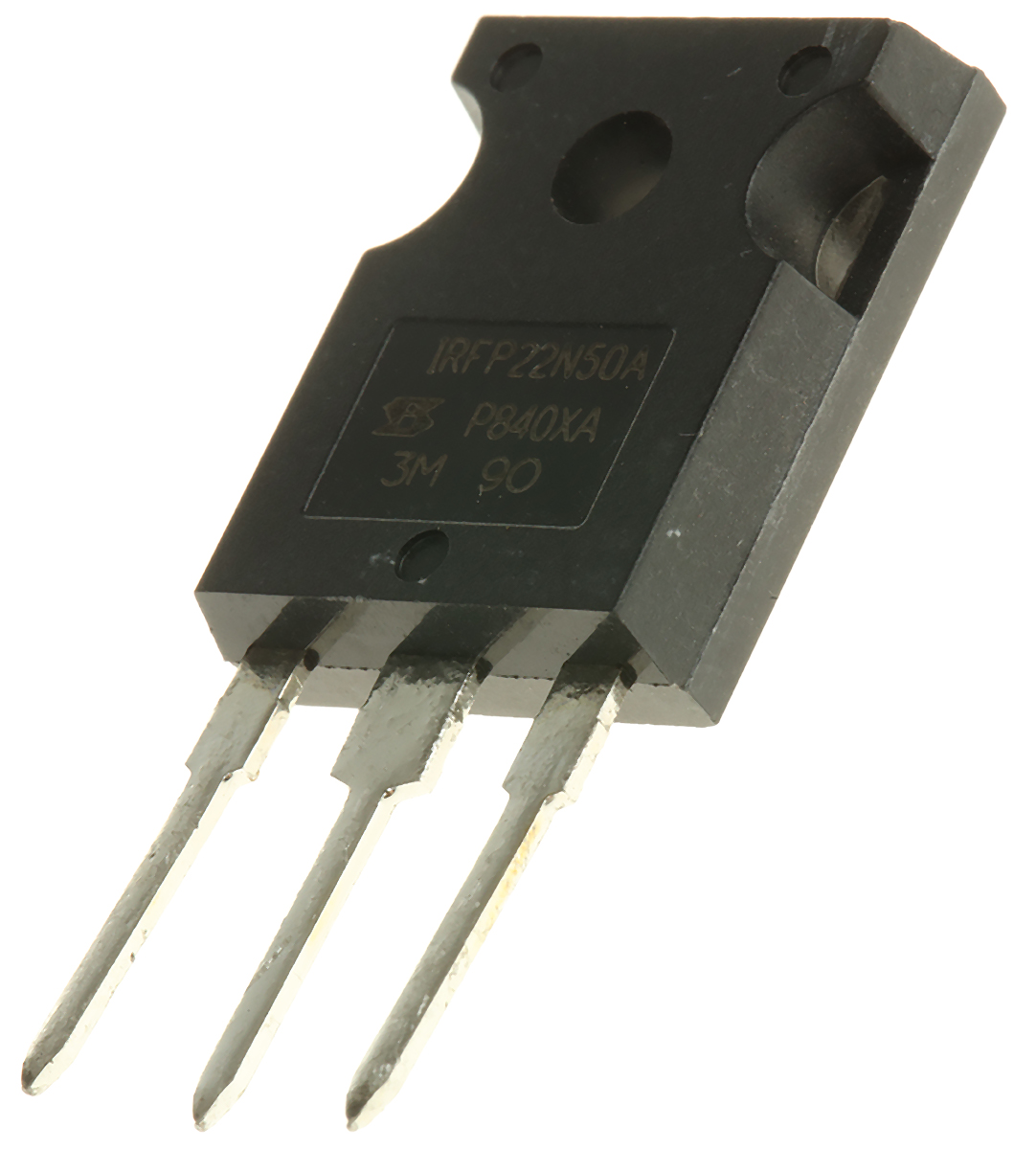

Vishay IRFP22N50APBF N-channel MOSFET, 22 A, 500 V, 3-Pin TO-247AC
Product Information
Maximum Drain Source Voltage:
500 V
Typical Gate Charge @ Vgs:
120 nC @ 10 V
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
277 W
Maximum Gate Source Voltage:
-30 V, +30 V
Height:
20.7mm
Width:
5.31mm
Length:
15.87mm
Minimum Gate Threshold Voltage:
2V
Package Type:
TO-247AC
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
22 A
Transistor Material:
Si
Maximum Drain Source Resistance:
230 mΩ
Channel Type:
N
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
Checking for live stock
FAQs
Yes. You can also search IRFP22N50APBF on website for other similar products.
We accept all major payment methods for all products including ET16722553. Please check your shopping cart at the time of order.
You can order Vishay brand products with IRFP22N50APBF directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Vishay IRFP22N50APBF N-channel MOSFET, 22 A, 500 V, 3-Pin TO-247AC. You can also check on our website or by contacting our customer support team for further order details on Vishay IRFP22N50APBF N-channel MOSFET, 22 A, 500 V, 3-Pin TO-247AC.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16722553 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Vishay" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16722553.
Yes. We ship IRFP22N50APBF Internationally to many countries around the world.
This is N-channel MOSFET 22 A 500 V 3-Pin TO-247AC manufactured by Vishay. The manufacturer part number is IRFP22N50APBF. It has a maximum of 500 v drain source voltage. With a typical gate charge at Vgs includes 120 nc @ 10 v. The product is available in through hole configuration. The product carries enhancement channel mode. Provides up to 277 w maximum power dissipation. It features a maximum gate source voltage of -30 v, +30 v. In addition, the height is 20.7mm. Furthermore, the product is 5.31mm wide. Its accurate length is 15.87mm. Whereas its minimum gate threshold voltage includes 2v. The package is a sort of to-247ac. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. While 22 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. It provides up to 230 mω maximum drain source resistance. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.
