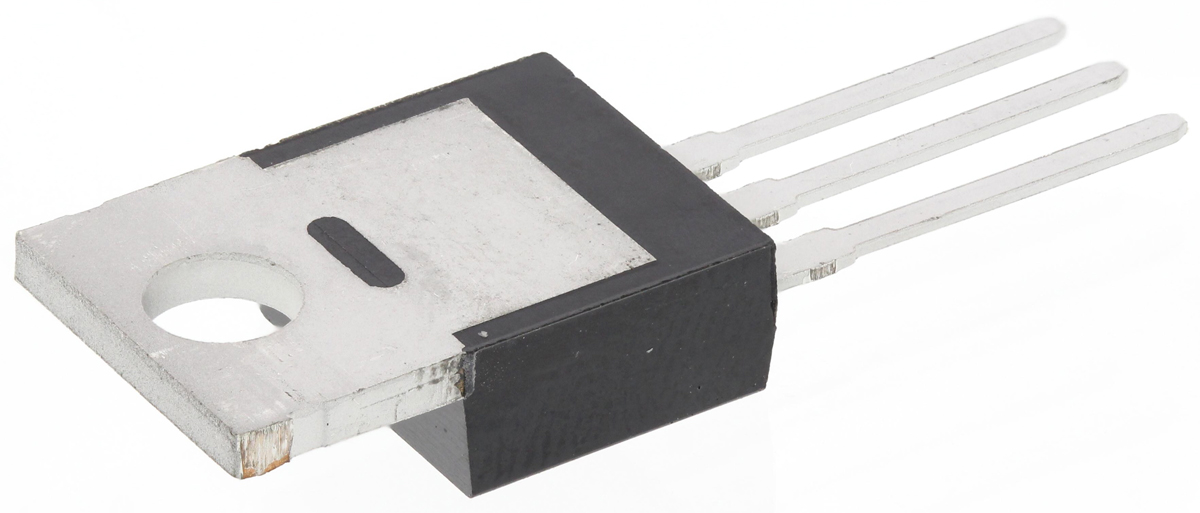

Infineon IRL1404ZPBF N-channel MOSFET, 200 A, 40 V HEXFET, 3-Pin TO-220

IRL1404ZPBF Infineon N-channel MOSFET, 200 A, 40 V HEXFET, 3-Pin TO-220
IRL1404ZPBF
Infineon

Product Information

Maximum Drain Source Voltage:
40 V
Typical Gate Charge @ Vgs:
75 nC @ 5 V
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
230 W
Series:
HEXFET
Maximum Gate Source Voltage:
-16 V, +16 V
Channel Type:
N
Minimum Gate Threshold Voltage:
1.4V
Maximum Gate Threshold Voltage:
2.7V
Maximum Drain Source Resistance:
3 mΩ
Package Type:
TO-220
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
200 A
Transistor Material:
Si
Height:
8.77mm
Maximum Operating Temperature:
+175 °C
Pin Count:
3
Transistor Configuration:
Single
Checking for live stock

This is N-channel MOSFET 200 A 40 V HEXFET 3-Pin TO-220 manufactured by Infineon. The manufacturer part number is IRL1404ZPBF. It has a maximum of 40 v drain source voltage. With a typical gate charge at Vgs includes 75 nc @ 5 v. The product is available in through hole configuration. The product carries enhancement channel mode. Provides up to 230 w maximum power dissipation. The product hexfet, is a highly preferred choice for users. It features a maximum gate source voltage of -16 v, +16 v. The product is available in [Cannel Type] channel. Whereas its minimum gate threshold voltage includes 1.4v. The product carries 2.7v of maximum gate threshold voltage. It provides up to 3 mω maximum drain source resistance. The package is a sort of to-220. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. While 200 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. In addition, the height is 8.77mm. It has a maximum operating temperature of +175 °c. It contains 3 pins. The product offers single transistor configuration.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search IRL1404ZPBF on website for other similar products.
We accept all major payment methods for all products including ET14141894. Please check your shopping cart at the time of order.
You can order Infineon brand products with IRL1404ZPBF directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Infineon IRL1404ZPBF N-channel MOSFET, 200 A, 40 V HEXFET, 3-Pin TO-220. You can also check on our website or by contacting our customer support team for further order details on Infineon IRL1404ZPBF N-channel MOSFET, 200 A, 40 V HEXFET, 3-Pin TO-220.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14141894 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Infineon" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14141894.
Yes. We ship IRL1404ZPBF Internationally to many countries around the world.
