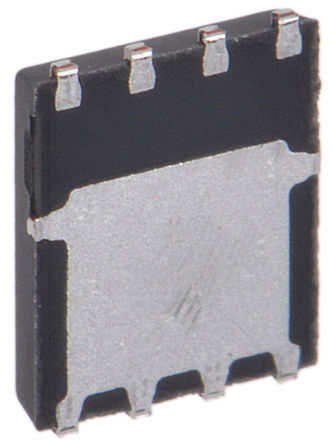

Vishay SISA10DN-T1-GE3 N-channel MOSFET, 30 A, 30 V TrenchFET, 8-Pin PowerPAK 1212

SISA10DN-T1-GE3 Vishay  N-channel MOSFET, 30 A, 30 V TrenchFET, 8-Pin PowerPAK 1212
Vishay

Product Information

Maximum Continuous Drain Current:
30 A
Transistor Material:
Si
Width:
3.4mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
30 V
Package Type:
PowerPAK 1212-8
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1.1V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
34 nC @ 10 V
Channel Type:
N
Length:
3.4mm
Pin Count:
8
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
39 W
Series:
TrenchFET
Maximum Gate Source Voltage:
-16 V, +20 V
Height:
1.12mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
5 mΩ
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 30 A 30 V TrenchFET 8-Pin PowerPAK 1212 manufactured by Vishay. The manufacturer part number is SISA10DN-T1-GE3. While 30 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 3.4mm wide. The product offers single transistor configuration. It has a maximum of 30 v drain source voltage. The package is a sort of powerpak 1212-8. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 1.1v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 34 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 3.4mm. It contains 8 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 39 w maximum power dissipation. The product trenchfet, is a highly preferred choice for users. It features a maximum gate source voltage of -16 v, +20 v. In addition, the height is 1.12mm. Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 5 mω maximum drain source resistance.

pdf icon
SiSA10DN, N-Channel 30V (Drain-Source) MOSFET Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
