Maximum Drain Source Voltage:
30 V
Typical Gate Charge @ Vgs:
6 nC @ 10 V, 7.8 nC @ 10 V
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
2.78 W
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
1.5mm
Width:
4mm
Length:
5mm
Minimum Gate Threshold Voltage:
1V
Package Type:
SOIC
Number of Elements per Chip:
2
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
4.3 A, 6 A
Transistor Material:
Si
Maximum Drain Source Resistance:
65 mΩ, 140 mΩ
Channel Type:
N, P
Maximum Operating Temperature:
+150 °C
Pin Count:
8
Transistor Configuration:
Isolated

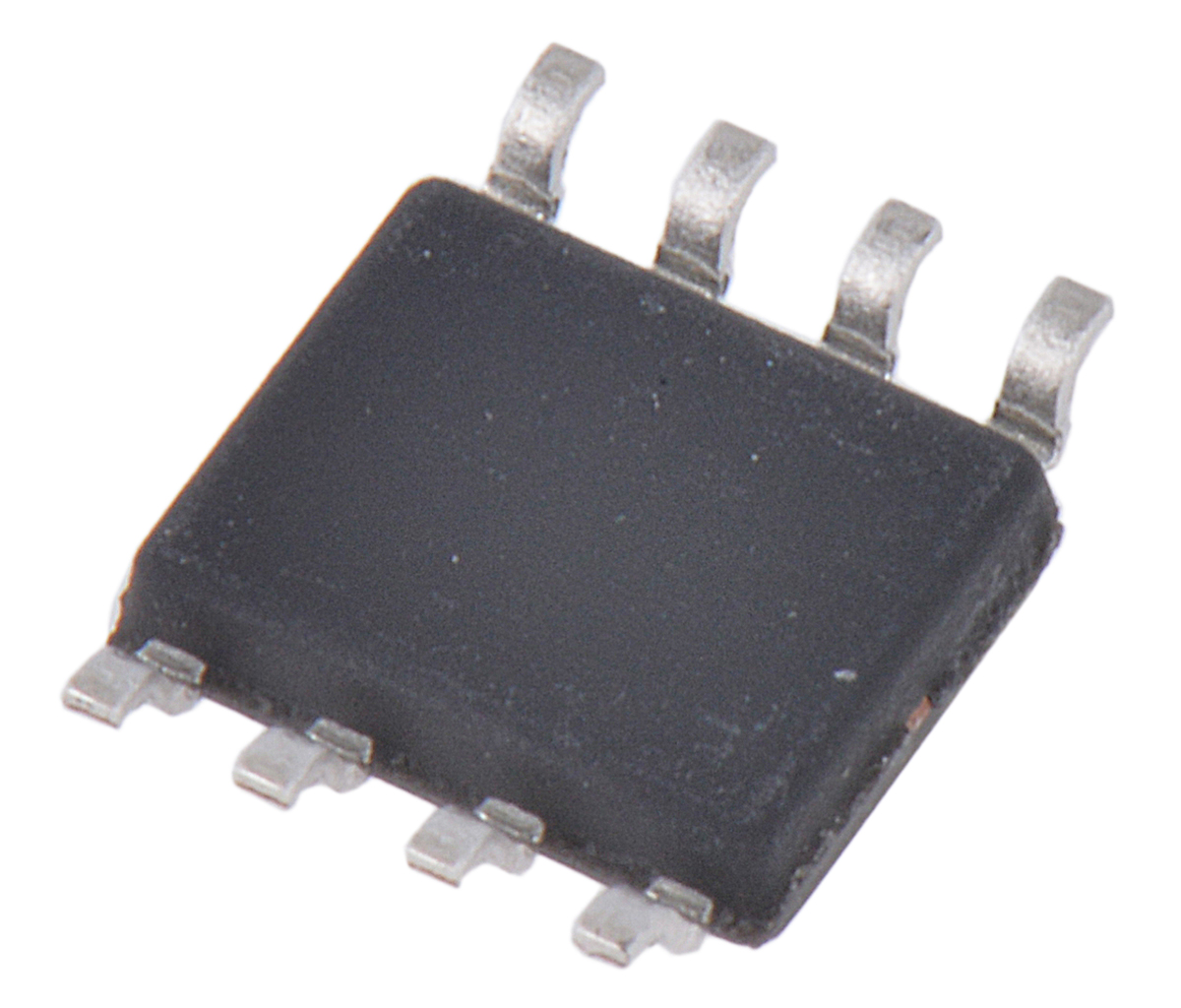

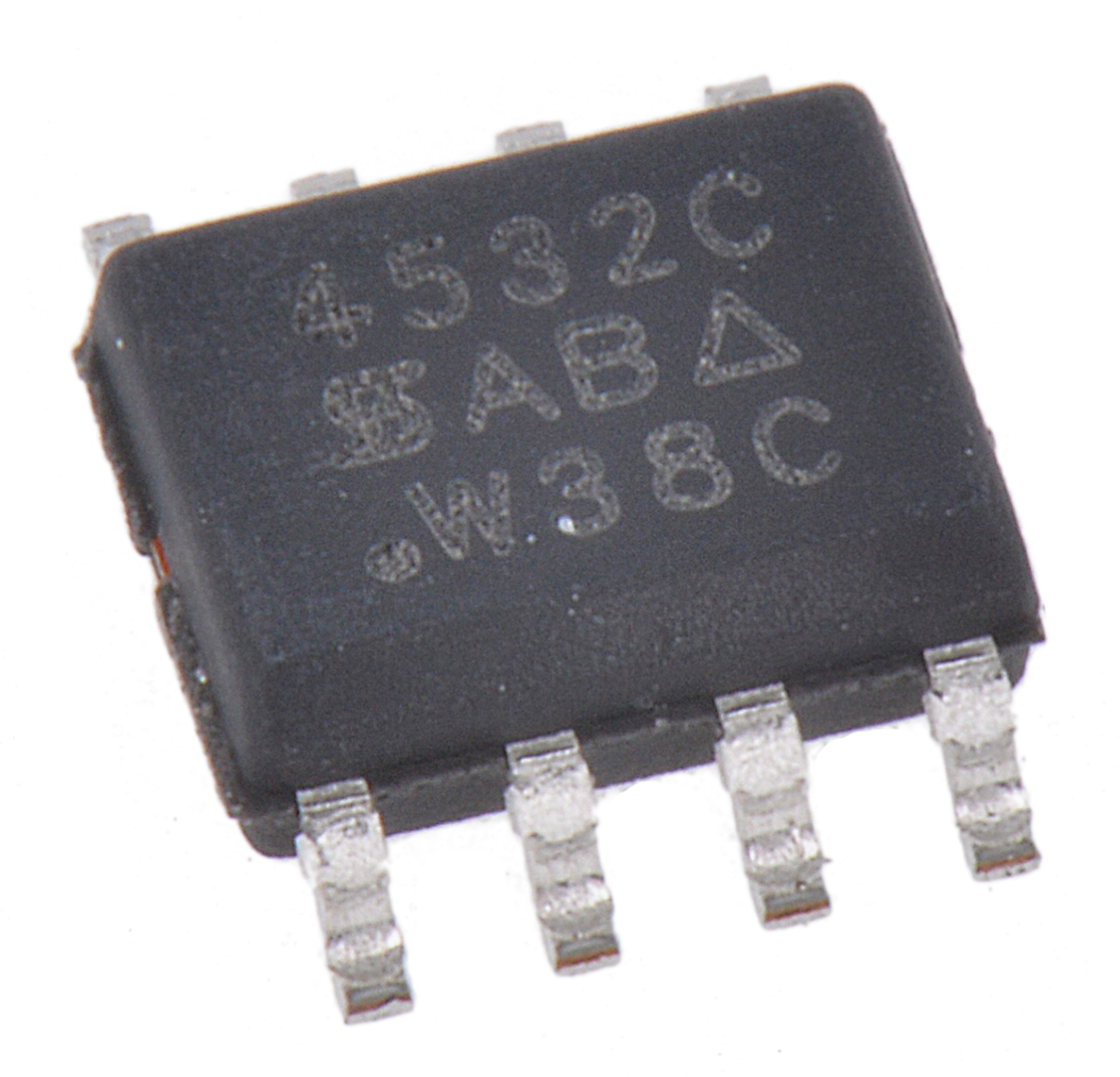

This is Dual N/P-channel MOSFET 4.3 A 6 A 30 V 8-Pin SOIC manufactured by Vishay. The manufacturer part number is SI4532CDY-T1-GE3. It has a maximum of 30 v drain source voltage. With a typical gate charge at Vgs includes 6 nc @ 10 v, 7.8 nc @ 10 v. The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 2.78 w maximum power dissipation. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 1.5mm. Furthermore, the product is 4mm wide. Its accurate length is 5mm. Whereas its minimum gate threshold voltage includes 1v. The package is a sort of soic. It consists of 2 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. While 4.3 a, 6 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. It provides up to 65 mω, 140 mω maximum drain source resistance. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 8 pins. The product offers isolated transistor configuration.
