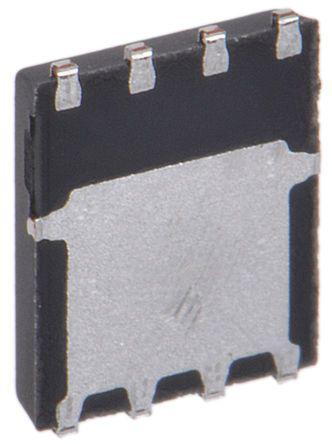

Fairchild FDMS86105 N-channel MOSFET, 6 A, 100 V PowerTrench, 8-Pin Power 56

FDMS86105 Fairchild  N-channel MOSFET, 6 A, 100 V PowerTrench, 8-Pin Power 56
Fairchild Semiconductor

Product Information

Maximum Continuous Drain Current:
6 A
Transistor Material:
Si
Width:
6mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
100 V
Package Type:
Power 56
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
4.2 nC @ 5 V, 7.5 nC @ 10 V
Channel Type:
N
Length:
5mm
Pin Count:
8
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
48 W
Series:
PowerTrench
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
1.05mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
57 mΩ
RoHs Compliant
Checking for live stock

This is Fairchild N-channel MOSFET 6 A 100 V PowerTrench 8-Pin Power 56 manufactured by Fairchild Semiconductor. The manufacturer part number is FDMS86105. While 6 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 6mm wide. The product offers single transistor configuration. It has a maximum of 100 v drain source voltage. The package is a sort of power 56. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 2v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 4.2 nc @ 5 v, 7.5 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 5mm. It contains 8 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 48 w maximum power dissipation. The product powertrench, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 1.05mm. Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 57 mω maximum drain source resistance.
