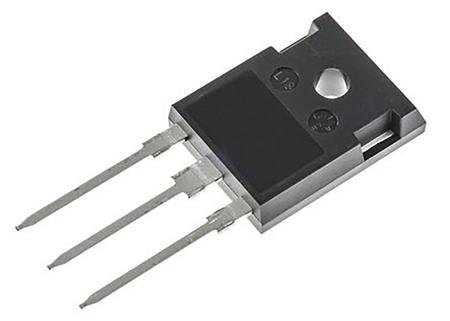

Toshiba TK20N60W,S1VF(S N-channel MOSFET, 20 A, 600 V TK, 3-Pin TO-247

TK20N60W-S1VF-S Toshiba TK20N60W,S1VF(S N-channel MOSFET, 20 A, 600 V TK, 3-Pin TO-247
TK20N60W,S1VF(S
TK20N60W-S1VF-S Toshiba TK20N60W,S1VF(S N-channel MOSFET, 20 A, 600 V TK, 3-Pin TO-247
Toshiba

Product Information

Forward Voltage Vf:
-1.7V
Width:
5.02 mm
Automotive Standard:
No
Typical Gate Charge Qg @ Vgs:
48nC
Package Type:
TO-247
Maximum Continuous Drain Current Id:
20A
Product Type:
MOSFET
Maximum Drain Source Resistance Rds:
155mΩ
Maximum Operating Temperature:
150°C
Maximum Drain Source Voltage Vds:
600V
Channel Type:
Type N
Length:
15.94mm
Standards/Approvals:
No
Pin Count:
3
Mount Type:
Through Hole
Maximum Power Dissipation Pd:
165W
Channel Mode:
Enhancement
Maximum Gate Source Voltage Vgs:
30 V
Series:
TK
Height:
20.95mm
Minimum Operating Temperature:
-55°C
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 20 A 600 V TK 3-Pin TO-247 manufactured by Toshiba. The manufacturer part number is TK20N60W,S1VF(S. Furthermore, the product is 5.02 mm wide. The product complies with automotive standard - no. The package is a sort of to-247. mosfet is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 150°c. The product is available in [Cannel Type] channel. Its accurate length is 15.94mm. It contains 3 pins. It has a through hole type mount . The product carries enhancement channel mode. The product tk, is a highly preferred choice for users. In addition, the height is 20.95mm. Whereas, the minimum operating temperature of the product is -55°c.

pdf icon
TK20N60W, Silicon N-Channel DTMOS MOSFET(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
