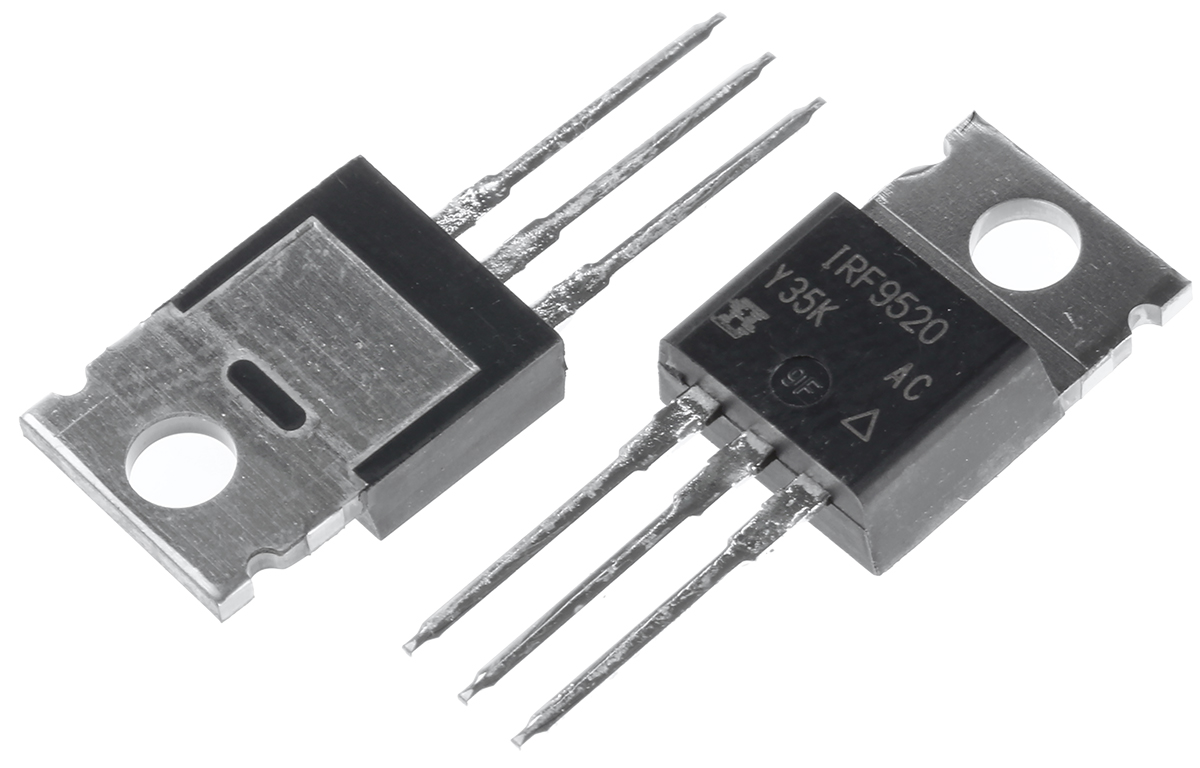

Vishay IRF9520PBF P-channel MOSFET, 6.8 A, 100 V, 3-Pin TO-220AB

IRF9520PBF Vishay P-channel MOSFET, 6.8 A, 100 V, 3-Pin TO-220AB
IRF9520PBF Vishay P-channel MOSFET, 6.8 A, 100 V, 3-Pin TO-220AB
Vishay

Product Information

Maximum Drain Source Resistance Rds:
600mΩ
Forward Voltage Vf:
-6.3V
Width:
4.7 mm
Distrelec Product Id:
304-36-068
Automotive Standard:
No
Typical Gate Charge Qg @ Vgs:
18nC
Package Type:
TO-220
Maximum Continuous Drain Current Id:
6.8A
Product Type:
MOSFET
Maximum Operating Temperature:
175°C
Maximum Drain Source Voltage Vds:
100V
Channel Type:
Type P
Length:
10.41mm
Standards/Approvals:
No
Pin Count:
3
Mount Type:
Through Hole
Maximum Power Dissipation Pd:
60W
Channel Mode:
Enhancement
Maximum Gate Source Voltage Vgs:
20 V
Series:
IRF
Height:
9.01mm
Minimum Operating Temperature:
-55°C
Checking for live stock

This is P-channel MOSFET 6.8 A 100 V 3-Pin TO-220AB manufactured by Vishay. The manufacturer part number is IRF9520PBF. Furthermore, the product is 4.7 mm wide. The product complies with automotive standard - no. The package is a sort of to-220. mosfet is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 175°c. The product is available in [Cannel Type] channel. Its accurate length is 10.41mm. It contains 3 pins. It has a through hole type mount . The product carries enhancement channel mode. The product irf, is a highly preferred choice for users. In addition, the height is 9.01mm. Whereas, the minimum operating temperature of the product is -55°c.
