Category:
Power MOSFET
Dimensions:
2.92 x 1.4 x 0.94mm
Maximum Continuous Drain Current:
1.7 A
Transistor Material:
Si
Width:
1.4mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
60 V
Maximum Gate Threshold Voltage:
3V
Package Type:
SOT-23
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
9.2 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
475 pF @ 15 V
Length:
2.92mm
Pin Count:
3
Typical Turn-Off Delay Time:
5.2 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
1.1 W
Series:
PowerTrench
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
0.94mm
Typical Turn-On Delay Time:
15 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
135 mΩ

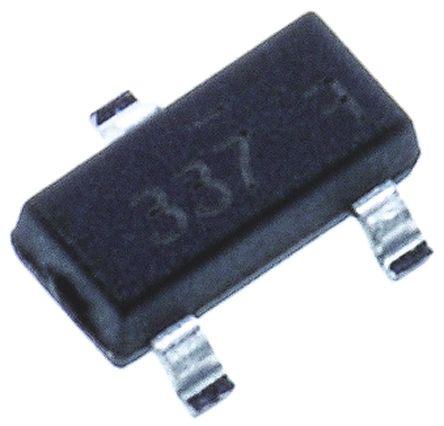

This is Fairchild N-channel MOSFET 1.7 A 60 V PowerTrench 3-Pin SOT-23 manufactured by Fairchild Semiconductor. The manufacturer part number is FDN5632N_F085. It is of power mosfet category . The given dimensions of the product include 2.92 x 1.4 x 0.94mm. While 1.7 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 1.4mm wide. The product offers single transistor configuration. It has a maximum of 60 v drain source voltage. The product carries 3v of maximum gate threshold voltage. The package is a sort of sot-23. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 1v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 9.2 nc @ 10 v. The product is available in [Cannel Type] channel. Its typical input capacitance @ Vds is 475 pf @ 15 v . Its accurate length is 2.92mm. It contains 3 pins. Whereas, its typical turn-off delay time is about 5.2 ns . The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 1.1 w maximum power dissipation. The product powertrench, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 0.94mm. In addition, it has a typical 15 ns turn-on delay time . Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 135 mω maximum drain source resistance.
