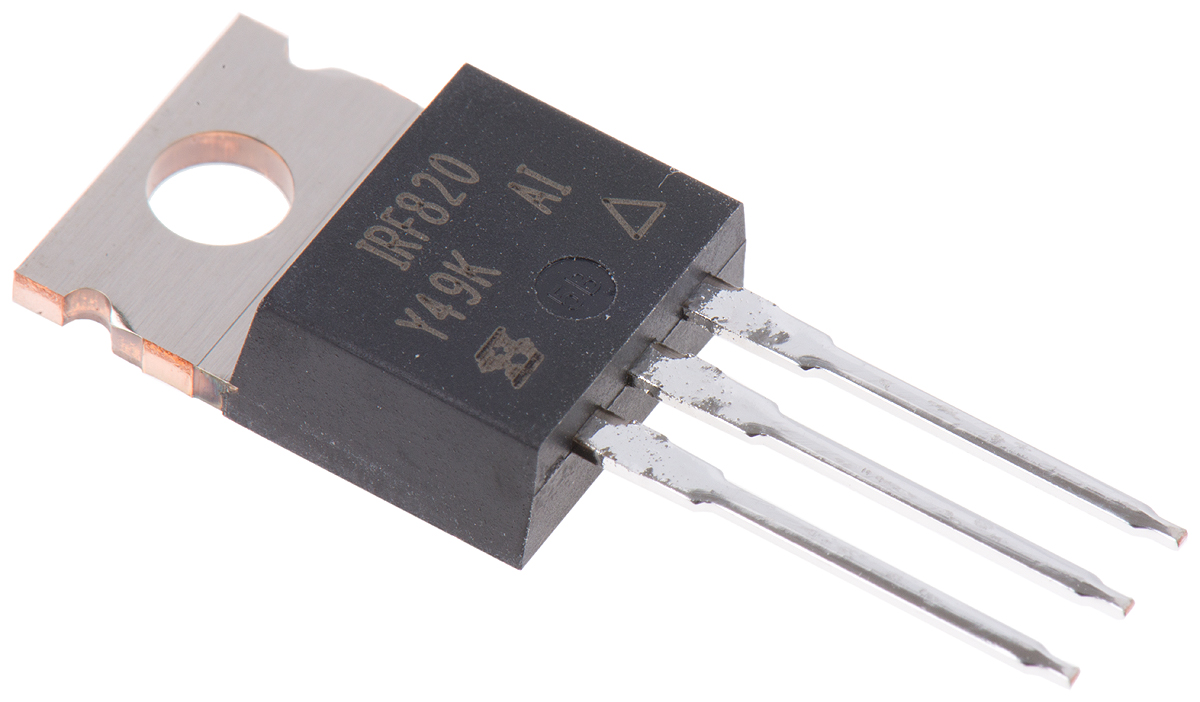

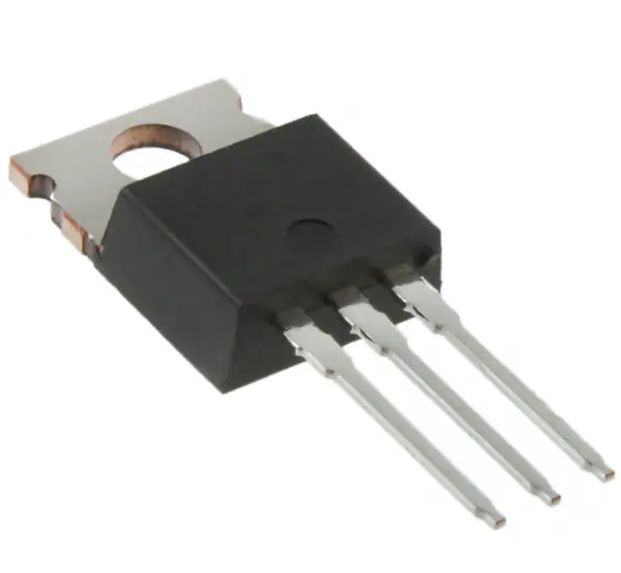

Vishay IRF820PBF N-channel MOSFET, 2.5 A, 500 V, 3-Pin TO-220AB

IRF820PBF Vishay N-channel MOSFET, 2.5 A, 500 V, 3-Pin TO-220AB
IRF820PBF
Vishay

Product Information

Maximum Drain Source Voltage:
500 V
Typical Gate Charge @ Vgs:
24 nC @ 10 V
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
50 W
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
9.01mm
Width:
4.7mm
Length:
10.41mm
Minimum Gate Threshold Voltage:
2V
Package Type:
TO-220AB
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
2.5 A
Transistor Material:
Si
Maximum Drain Source Resistance:
3 Ω
Channel Type:
N
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 2.5 A 500 V 3-Pin TO-220AB manufactured by Vishay. The manufacturer part number is IRF820PBF. It has a maximum of 500 v drain source voltage. With a typical gate charge at Vgs includes 24 nc @ 10 v. The product is available in through hole configuration. The product carries enhancement channel mode. Provides up to 50 w maximum power dissipation. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 9.01mm. Furthermore, the product is 4.7mm wide. Its accurate length is 10.41mm. Whereas its minimum gate threshold voltage includes 2v. The package is a sort of to-220ab. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. While 2.5 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. It provides up to 3 ω maximum drain source resistance. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.

pdf icon
IRF820PBF Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search IRF820PBF on website for other similar products.
We accept all major payment methods for all products including ET13834022. Please check your shopping cart at the time of order.
You can order Vishay brand products with IRF820PBF directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Vishay IRF820PBF N-channel MOSFET, 2.5 A, 500 V, 3-Pin TO-220AB. You can also check on our website or by contacting our customer support team for further order details on Vishay IRF820PBF N-channel MOSFET, 2.5 A, 500 V, 3-Pin TO-220AB.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13834022 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Vishay" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13834022.
Yes. We ship IRF820PBF Internationally to many countries around the world.
