Maximum Continuous Drain Current:
50 A
Transistor Material:
Si
Width:
23mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
600 V
Maximum Gate Threshold Voltage:
3.5V
Package Type:
SMPD
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
150 nC @ 10 V
Channel Type:
N
Length:
25mm
Pin Count:
9
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Gate Source Voltage:
-20 V, +20 V
Series:
CoolMOS
Height:
5.5mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1V
Maximum Drain Source Resistance:
45 mΩ
Rds On (Max) @ Id, Vgs:
45mOhm @ 44A, 10V
Detailed Description:
N-Channel 600V 50A (Tc) Surface Mount ISOPLUS-SMPD™.B
Input Capacitance (Ciss) (Max) @ Vds:
6800pF @ 100V
Mounting Type:
Surface Mount
Vgs(th) (Max) @ Id:
3.5V @ 3mA
Series:
CoolMOS™
Vgs (Max):
±20V
Gate Charge (Qg) (Max) @ Vgs:
190nC @ 10V
Supplier Device Package:
ISOPLUS-SMPD™.B
Drive Voltage (Max Rds On, Min Rds On):
10V
Packaging:
Tray
Operating Temperature:
-55°C ~ 150°C (TJ)
FET Type:
N-Channel
Package / Case:
9-SMD Module
Drain to Source Voltage (Vdss):
600V
Current - Continuous Drain (Id) @ 25°C:
50A (Tc)
Technology:
MOSFET (Metal Oxide)
Manufacturer:
IXYS

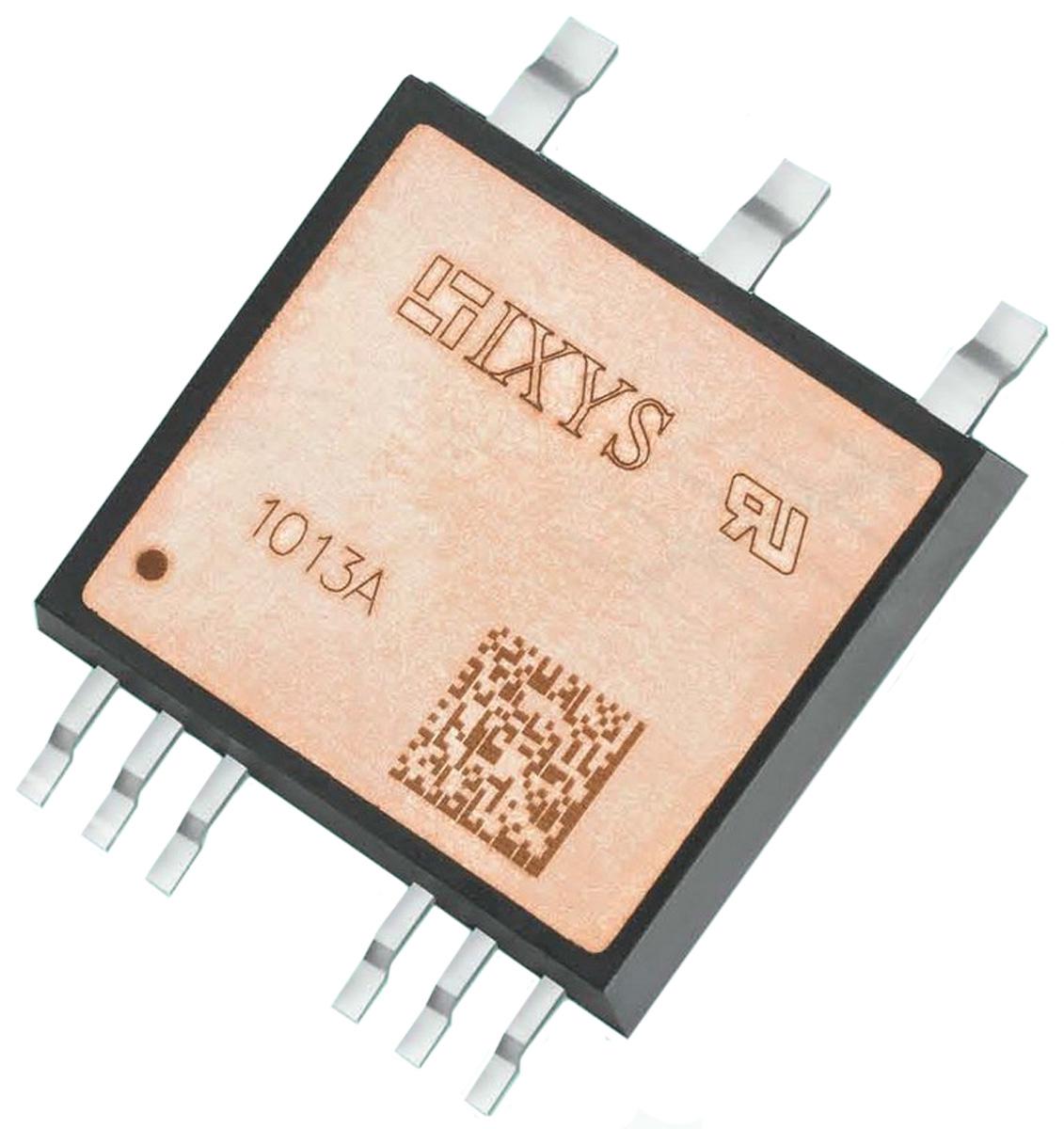

This is manufactured by IXYS. The manufacturer part number is MKE38RK600DFELB. While 50 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 23mm wide. The product offers single transistor configuration. It has a maximum of 600 v drain source voltage. The product carries 3.5v of maximum gate threshold voltage. The package is a sort of smpd. It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 150 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 25mm. It contains 9 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. It features a maximum gate source voltage of -20 v, +20 v. The product coolmos, is a highly preferred choice for users. In addition, the height is 5.5mm. Whereas, the minimum operating temperature of the product is -55 °c. Its forward diode voltage is 1v . It provides up to 45 mω maximum drain source resistance. It has a maximum Rds On and voltage of 45mohm @ 44a, 10v. It features n-channel 600v 50a (tc) surface mount isoplus-smpd™.b. The product's input capacitance at maximum includes 6800pf @ 100v. The typical Vgs (th) (max) of the product is 3.5v @ 3ma. The product coolmos™, is a highly preferred choice for users. The maximum Vgs rate is ±20v. The maximum gate charge and given voltages include 190nc @ 10v. isoplus-smpd™.b is the supplier device package value. The minimum and maximum Rds On drive voltage includes [Drive Voltage (Max Rds On, Min Rds On)]. In addition, tray is the available packaging type of the product. The product has -55°c ~ 150°c (tj) operating temperature range. It carries FET type n-channel. Moreover, the product comes in 9-smd module. The product has a 600v drain to source voltage. The continuous current drain at 25°C is 50a (tc). This product use mosfet (metal oxide) technology. The ixys's product offers user-desired applications.
