Manufacturer : Vishay
Manufacturer Part No : SQD40N06-14L-GE3
Enrgtech Part No : ET10003294
Product Range : PolySwitch RXEF Series

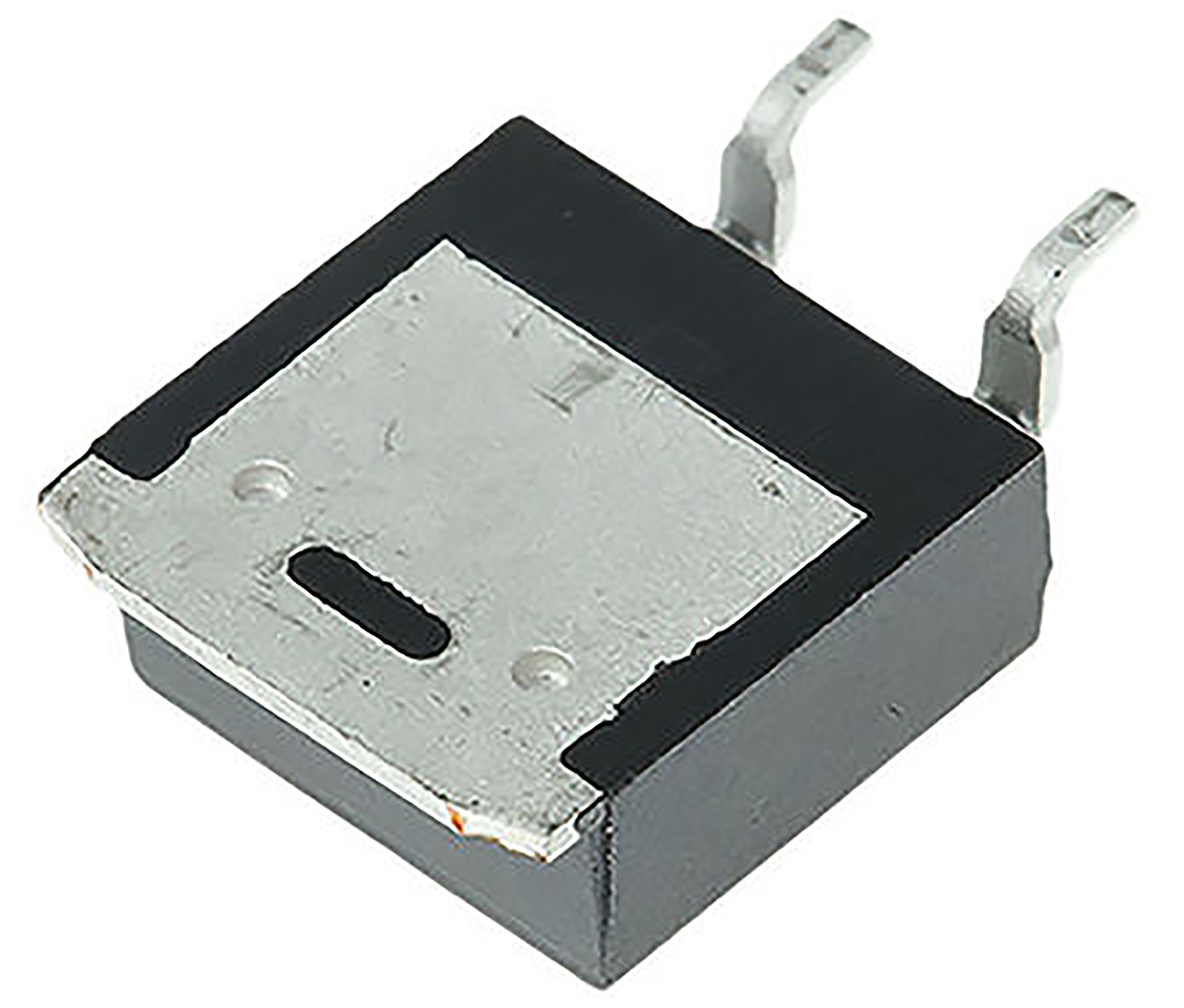

Vishay SQD40N06-14L-GE3 N-channel MOSFET, 40 A, 60 V SQ Rugged, 3-Pin DPAK

N-Channel MOSFET, Automotive SQ Rugged Series, Vishay Semiconductor The SQ series of MOSFETs from Vishay Semiconductor are designed for all automotive applications requiring ruggedness and high reliability. Advantages of SQ Rugged Series MOSFETs • AEC-Q101 qualified • Junction temperature up to +175°C • Low on-resistance n- and p-channel TrenchFET® technologies • Innovative space-saving package options Approvals AEC-Q101 MOSFET Transistors, Vishay Semiconductor

Product Information

Maximum Continuous Drain Current : 40 A
Transistor Material : Si
Width : 6.22mm
Automotive Standard : AEC-Q101
Transistor Configuration : Single
Maximum Drain Source Voltage : 60 V
Package Type : DPAK (TO-252)
Number of Elements per Chip : 1
Minimum Gate Threshold Voltage : 1.5V
Maximum Operating Temperature : +175 °C
rohs : RoHS Certificate of Compliance
Typical Gate Charge @ Vgs : 34 nC @ 10 V
Channel Type : N
Length : 6.73mm
Pin Count : 3
Channel Mode : Enhancement
Mounting Type : Surface Mount
Maximum Power Dissipation : 75 W
Series : SQ Rugged
Maximum Gate Source Voltage : -20 V, +20 V
Height : 2.38mm
Minimum Operating Temperature : -55 °C
Maximum Drain Source Resistance : 29 mΩ
