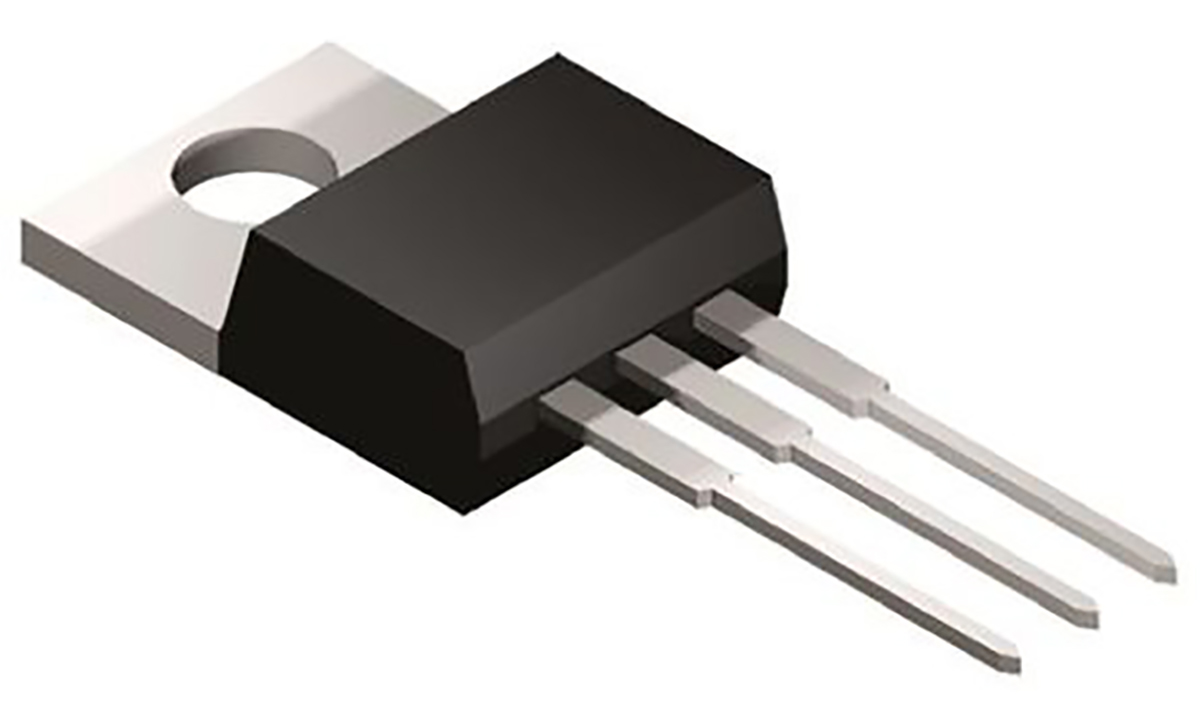

Vishay IRL630PBF N-channel MOSFET, 9 A, 200 V, 3-Pin TO-220AB
Product Information
Maximum Drain Source Voltage:
200 V
Typical Gate Charge @ Vgs:
40 nC @ 10 V
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
74 W
Maximum Gate Source Voltage:
-10 V, +10 V
Height:
9.01mm
Width:
4.7mm
Length:
10.41mm
Minimum Gate Threshold Voltage:
1V
Package Type:
TO-220AB
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
9 A
Transistor Material:
Si
Maximum Drain Source Resistance:
400 mΩ
Channel Type:
N
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
Checking for live stock
FAQs
Yes. You can also search IRL630PBF on website for other similar products.
We accept all major payment methods for all products including ET10002372. Please check your shopping cart at the time of order.
You can order Vishay brand products with IRL630PBF directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Vishay IRL630PBF N-channel MOSFET, 9 A, 200 V, 3-Pin TO-220AB. You can also check on our website or by contacting our customer support team for further order details on Vishay IRL630PBF N-channel MOSFET, 9 A, 200 V, 3-Pin TO-220AB.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10002372 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Vishay" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10002372.
Yes. We ship IRL630PBF Internationally to many countries around the world.
This is N-channel MOSFET 9 A 200 V 3-Pin TO-220AB manufactured by Vishay. The manufacturer part number is IRL630PBF. It has a maximum of 200 v drain source voltage. With a typical gate charge at Vgs includes 40 nc @ 10 v. The product is available in through hole configuration. The product carries enhancement channel mode. Provides up to 74 w maximum power dissipation. It features a maximum gate source voltage of -10 v, +10 v. In addition, the height is 9.01mm. Furthermore, the product is 4.7mm wide. Its accurate length is 10.41mm. Whereas its minimum gate threshold voltage includes 1v. The package is a sort of to-220ab. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. While 9 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. It provides up to 400 mω maximum drain source resistance. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.
