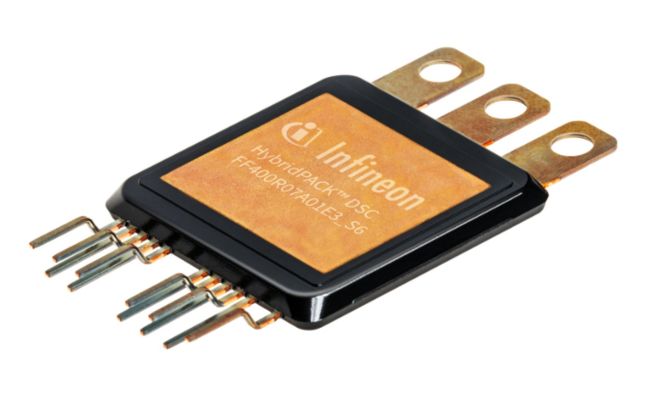

Infineon FF400R07A01E3S6XKSA2 Dual IGBT Module, 400 A 700 V, 14-Pin PG-MDIP-14

FF400R07A01E3S6XKSA2 Infineon Dual IGBT Module, 400 A 700 V, 14-Pin PG-MDIP-14
Infineon

Product Information

Dimensions:
42 x 42 x 4.7mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
1.5 kW
Maximum Operating Temperature:
+175 °C
Maximum Collector Emitter Voltage:
700 V
Number of Transistors:
2
Channel Type:
N
Maximum Continuous Collector Current:
400 A
Maximum Gate Emitter Voltage:
+/-20V
Package Type:
PG-MDIP-14
Minimum Operating Temperature:
-40 °C
Configuration:
Dual
Gate Capacitance:
18nF
Pin Count:
14
Transistor Configuration:
Dual
RoHs Compliant
Checking for live stock

This is Dual IGBT Module 400 A 700 V 14-Pin PG-MDIP-14 manufactured by Infineon. The manufacturer part number is FF400R07A01E3S6XKSA2. The given dimensions of the product include 42 x 42 x 4.7mm. The product is available in surface mount configuration. Provides up to 1.5 kw maximum power dissipation. It has a maximum operating temperature of +175 °c. Whereas features a 700 v of collector emitter voltage (max). It has 2 transistors . The product is available in [Cannel Type] channel. The product has a maximum 400 a continuous collector current . It offers a maximum +/-20v gate emitter voltage . The package is a sort of pg-mdip-14. Whereas, the minimum operating temperature of the product is -40 °c. The product is available in dual configuration. It has approximately 18nf gate capacitance . It contains 14 pins. The product offers dual transistor configuration.

pdf icon
Datasheet - FF400R07A01E3S6XKSA2(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship FF400R07A01E3S6XKSA2 Internationally to many countries around the world.
Yes. You can also search FF400R07A01E3S6XKSA2 on website for other similar products.
We accept all major payment methods for all products including ET21647422. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET21647422 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Infineon" products on our website by using Enrgtech's Unique Manufacturing Part Number ET21647422.
You can order Infineon brand products with FF400R07A01E3S6XKSA2 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in IGBTs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Infineon FF400R07A01E3S6XKSA2 Dual IGBT Module, 400 A 700 V, 14-Pin PG-MDIP-14. You can also check on our website or by contacting our customer support team for further order details on Infineon FF400R07A01E3S6XKSA2 Dual IGBT Module, 400 A 700 V, 14-Pin PG-MDIP-14.
