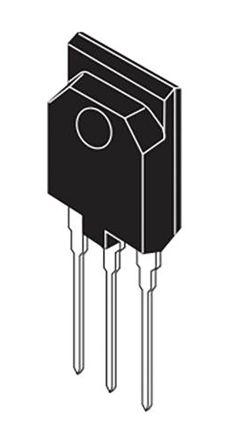

Renesas Electronics RJP65T43DPM-00#T1 IGBT, 40 A 650 V, 3+Tab-Pin TO-3PFM

RJP65T43DPM-00-T1 Renesas Electronics RJP65T43DPM-00#T1 IGBT, 40 A 650 V, 3+Tab-Pin TO-3PFM
Renesas Electronics

Product Information

Maximum Continuous Collector Current:
40 A
Dimensions:
15.6 x 5.5 x 19.9mm
Mounting Type:
Through Hole
Maximum Power Dissipation:
68.8 W
Maximum Operating Temperature:
+175 °C
Maximum Collector Emitter Voltage:
650 V
Height:
19.9mm
Width:
5.5mm
Length:
15.6mm
Maximum Gate Emitter Voltage:
±30V
Package Type:
TO-3PFM
Channel Type:
N
Gate Capacitance:
1550pF
Pin Count:
3+Tab
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is IGBT 40 A 650 V 3+Tab-Pin TO-3PFM manufactured by Renesas Electronics. The manufacturer part number is RJP65T43DPM-00#T1. The product has a maximum 40 a continuous collector current . The given dimensions of the product include 15.6 x 5.5 x 19.9mm. The product is available in through hole configuration. Provides up to 68.8 w maximum power dissipation. It has a maximum operating temperature of +175 °c. Whereas features a 650 v of collector emitter voltage (max). In addition, the height is 19.9mm. Furthermore, the product is 5.5mm wide. Its accurate length is 15.6mm. It offers a maximum ±30v gate emitter voltage . The package is a sort of to-3pfm. The product is available in [Cannel Type] channel. It has approximately 1550pf gate capacitance . It contains 3+tab pins. The product offers single transistor configuration.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search RJP65T43DPM-00#T1 on website for other similar products.
We accept all major payment methods for all products including ET16888109. Please check your shopping cart at the time of order.
You can order Renesas Electronics brand products with RJP65T43DPM-00#T1 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in IGBTs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Renesas Electronics RJP65T43DPM-00#T1 IGBT, 40 A 650 V, 3+Tab-Pin TO-3PFM. You can also check on our website or by contacting our customer support team for further order details on Renesas Electronics RJP65T43DPM-00#T1 IGBT, 40 A 650 V, 3+Tab-Pin TO-3PFM.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16888109 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Renesas Electronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16888109.
Yes. We ship RJP65T43DPM-00#T1 Internationally to many countries around the world.
