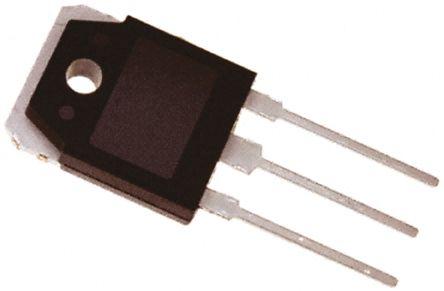

This is Fairchild IGBT 50 A 1000 V 3-Pin TO-3P manufactured by Fairchild Semiconductor. The manufacturer part number is FGA50N100BNTD2. The given dimensions of the product include 15.8 x 5 x 20.1mm. The product is available in through hole configuration. Provides up to 156 w maximum power dissipation. The product has a maximum 50 a continuous collector current . Whereas features a 1000 v of collector emitter voltage (max). In addition, the height is 20.1mm. Furthermore, the product is 5mm wide. Its accurate length is 15.8mm. It offers a maximum ±25v gate emitter voltage . The package is a sort of to-3p. Whereas, the minimum operating temperature of the product is -55 °c. It has about 1mhz switching speed . The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.
FGA50N100BNTD2, 1000V NPT Trench IGBT Data Sheet(Technical Reference)
ESD Control Selection Guide V1(Technical Reference)
