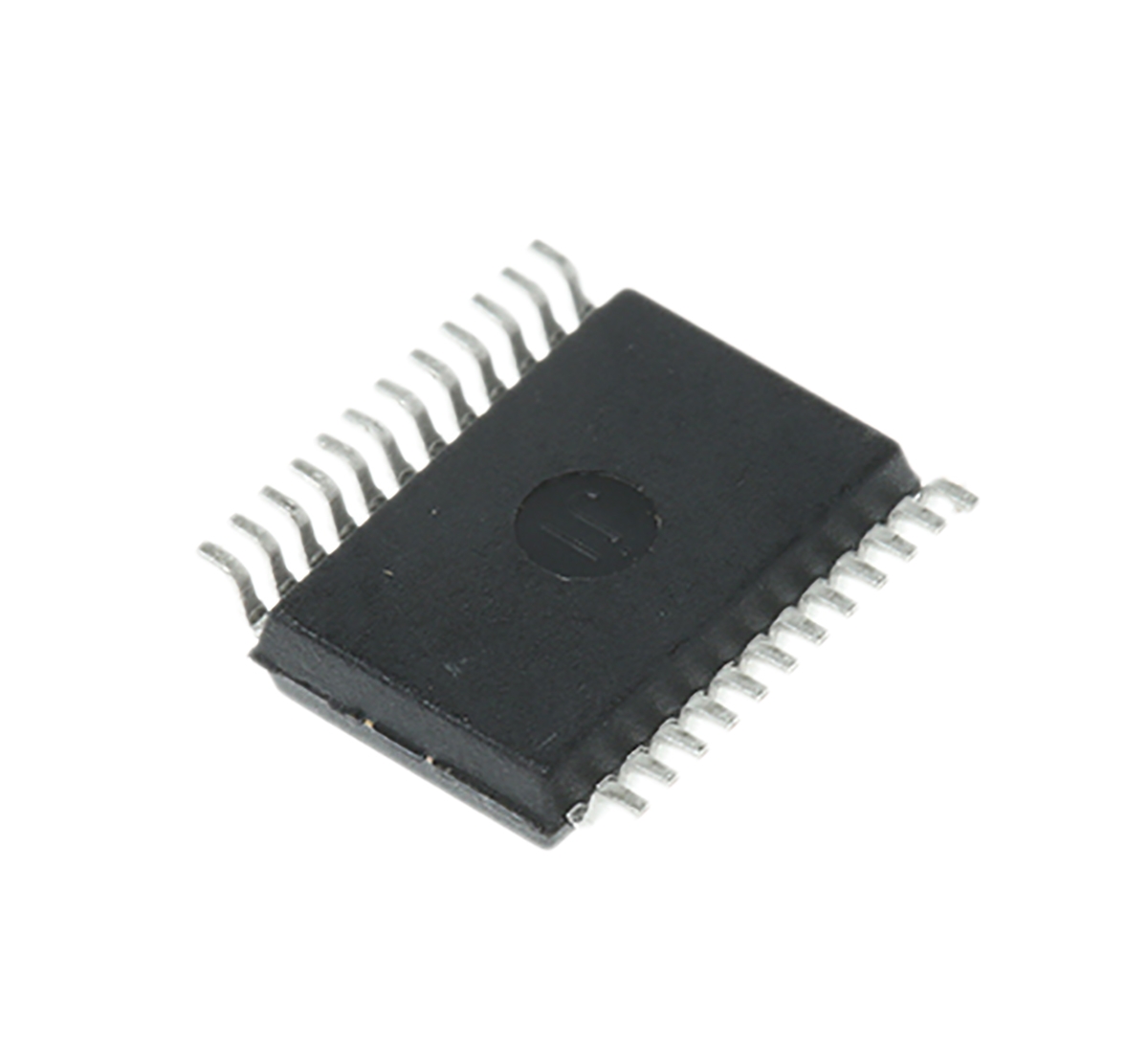

Cirrus Logic CS5463-ISZ, Energy Meter IC, 8 bit, 24-Pin SSOP

Name: CS5463-ISZ, Cirrus Logic
Brand: Cirrus Logic
SKU: ET13955576
Price: 1.79 GBP
Availability: InStock
Rating: 5 (1 reviews)

Enrgtech Part No: ET13955576
|
Manufacturer Part No:
CS5463-ISZ
|
Manufacturer: Cirrus Logic

CS5463-ISZ Cirrus Logic , Energy Meter IC, 8 bit, 24-Pin SSOP

(1)

Product Information

Dimensions:

8.5 x 5.6 x 1.88mm

Mounting Type:

Surface Mount

Maximum Operating Temperature:

+85 °C

Minimum Operating Supply Voltage:

+3.3 (Digital) V, 0 (Analogue) V

Height:

1.88mm

Width:

5.6mm

Length:

8.5mm

Package Type:

SSOP

Minimum Operating Temperature:

-40 °C

Maximum Operating Supply Voltage:

+5 (Analogue) V, +5 (Digital) V

Resolution:

8 bit

Pin Count:

Checking for live stock

The Cirrus Logic CS5463-ISZ is a high-precision energy meter IC engineered to meet modern energy measurement demands with efficiency and accuracy. Housed in a compact 24-pin SSOP package, this 8-bit IC integrates a powerful analogue front end and digital processing engine, ideal for single-phase power measurement applications. With its on-chip calibration, low power consumption, and superior signal-to-noise ratio, the CS5463 is widely utilised in smart metres, power monitoring units, and industrial energy systems in the UK. It ensures consistent performance across diverse electrical infrastructures.

Standout Features of the Cirrus Logic CS5463-ISZ, Energy Meter IC, 8-bit, 24-Pin SSOP

24-pin SSOP package for space-constrained applications.
On-chip calibration and temperature sensor.
Serial Peripheral Interface (SPI) for easy microcontroller communication.
Low power consumption for battery-powered designs.
High signal-to-noise ratio with superior accuracy.

Potential Benefits to Users

Combines metering functionality into one IC, reducing BOM costs.
24-pin SSOP package fits compact circuit layouts.
Ensures precise energy measurements in smart systems.
Built-in features reduce development time.
SPI compatibility for easy integration into embedded systems.

Versatile Uses of the Cirrus Logic CS5463-ISZ, Energy Metre IC, 8-bit, 24-Pin SSOP

Smart electricity meters (single-phase)
Power monitoring systems in smart homes and buildings
Industrial energy tracking and load management
Consumer energy use feedback devices
Renewable energy systems (solar, wind, etc.)
Embedded systems requiring real-time energy data
