Maximum Temperature:
+70°C
AC or DC Output Voltage:
dc
Minimum Temperature:
-10°C
Width:
124mm
MTBF:
434000h
Electrical Phase:
1
Type:
Switch Mode
Load Regulation:
150mV
Standards Met:
CE Certified, cULus Listed, cULus Recognised, EN 50178, EN 55011, EN 55022, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-3, EN 61000-6-4, FCC, IEC 60068-2-27, IEC 60068-2-30, IEC 60068-2-6, IEC 62103, IEC/CISPR 16-1-2, IEC/CISPR 16-2-1, LVD, MIL HDBK 217F, SEMI F47 0706, UL 508, UL 60950-1, VDE 0160
Input Voltage:
230V ac
Number of Outputs:
1
Output Voltage Adjustment Range:
24 → 28V
Ripple And Noise:
100mV Pk-Pk
Depth:
124mm
Special Features:
Compact Design, Cost Effective Power Source, DC OK Relay Contact
Mounting Type:
DIN Rail Mount
Output Current:
5A
Series:
PIANO
Height:
124mm
Output Voltage:
24V dc
Power Rating:
120W

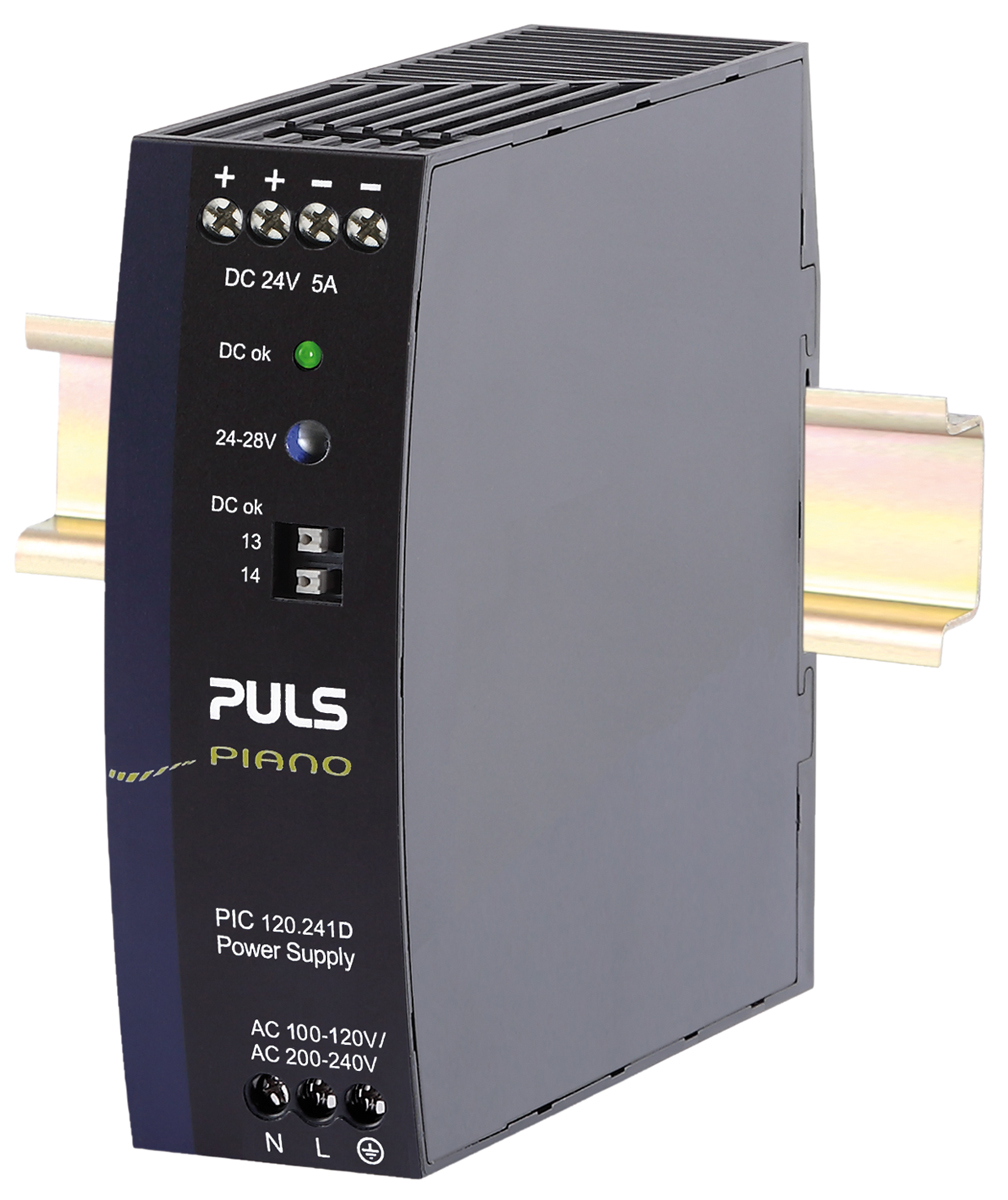

This is PIANO DIN Rail Power Supply 120W 24V dc/ 5A manufactured by PULS. The manufacturer part number is PIC120.241D. The product has +70°c maximum temperature. It has a/an dc output voltage . While its minimum temperature is -10°c. Furthermore, the product is 124mm wide. The MTBF values include 434000h. Its electrical phase configuration includes 1. It comes in switch mode configuration. Load Regulation - 150mv. The product complies with all safety standards, such as ce certified, culus listed, culus recognised, en 50178, en 55011, en 55022, en 61000-3-2, en 61000-3-3, en 61000-4-11, en 61000-4-2, en 61000-4-3, en 61000-4-4, en 61000-4-5, en 61000-4-6, en 61000-6-3, en 61000-6-4, fcc, iec 60068-2-27, iec 60068-2-30, iec 60068-2-6, iec 62103, iec/cispr 16-1-2, iec/cispr 16-2-1, lvd, mil hdbk 217f, semi f47 0706, ul 508, ul 60950-1, vde 0160. Its input voltage is 230v ac. Additionally, the product is supplied with 1 outputs. It has 24 → 28v of output voltage adjustment range. Carries 100mv pk-pk ripple and noise. The product comes in 124mm depth. The product also provides special features, such as compact design, cost effective power source, dc ok relay contact. The product is available in din rail mount configuration. It carries 5a output current. The product piano, is a highly preferred choice for users. In addition, the height is 124mm. Features a 24v dc output voltage. Feature 120w of power rating.
