Microchip MCP4921-E/SN, 12 bit Serial DAC, 8-Pin SOIC

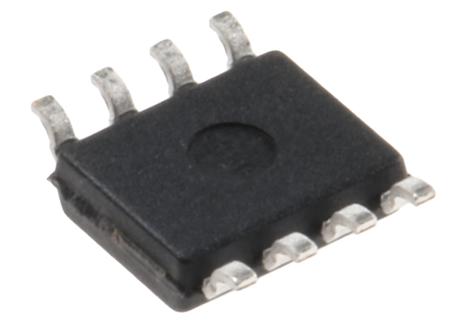

MCP4921-E-SN Microchip MCP4921-E/SN, 12 bit Serial DAC, 8-Pin SOIC
MCP4921-E/SN
Microchip

Product Information

Voltage Reference:
External
Integral Nonlinearity Error:
+12LSB
Dimensions:
4.9 x 3.9 x 1.5mm
Mounting Type:
Surface Mount
Number of DAC Channels:
1
Power Supply Type:
Single
Minimum Operating Temperature:
-40 °C
Maximum Settling Time:
4.5µs
Digital Interface Type:
Serial (SPI/Microwire)
Typical Single Supply Voltage:
2.7 to 5.5 V
Full Scale Error:
1%FSR
Package Type:
SOIC
Architecture:
Resistor String
Output Polarity:
Bipolar
Maximum Operating Temperature:
125 °C
Resolution:
12 bit
Pin Count:
8
RoHs Compliant
Checking for live stock

This is 12 bit Serial DAC 8-Pin SOIC manufactured by Microchip. The manufacturer part number is MCP4921-E/SN. The product has external voltage reference. Its integral nonlinearity error is +12lsb . The given dimensions of the product include 4.9 x 3.9 x 1.5mm. The product is available in surface mount configuration. Additionally, it includes 1 standard DAC channels . It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 4.5µs setting time . Additionally, the product has a/an serial (spi/microwire) type digital interface . It has a typical single supply voltage of 2.7 to 5.5 v. It has a full scale error of 1%fsr . The package is a sort of soic. The product has been designed as resistor string. It has bipolar polarity . It has a maximum operating temperature of 125 °c. Features 12 bit resolution. It contains 8 pins.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search MCP4921-E/SN on website for other similar products.
We accept all major payment methods for all products including ET14062827. Please check your shopping cart at the time of order.
You can order Microchip brand products with MCP4921-E/SN directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Digital to Analogue Converters category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Microchip MCP4921-E/SN, 12 bit Serial DAC, 8-Pin SOIC. You can also check on our website or by contacting our customer support team for further order details on Microchip MCP4921-E/SN, 12 bit Serial DAC, 8-Pin SOIC.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14062827 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Microchip" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14062827.
Yes. We ship MCP4921-E/SN Internationally to many countries around the world.
