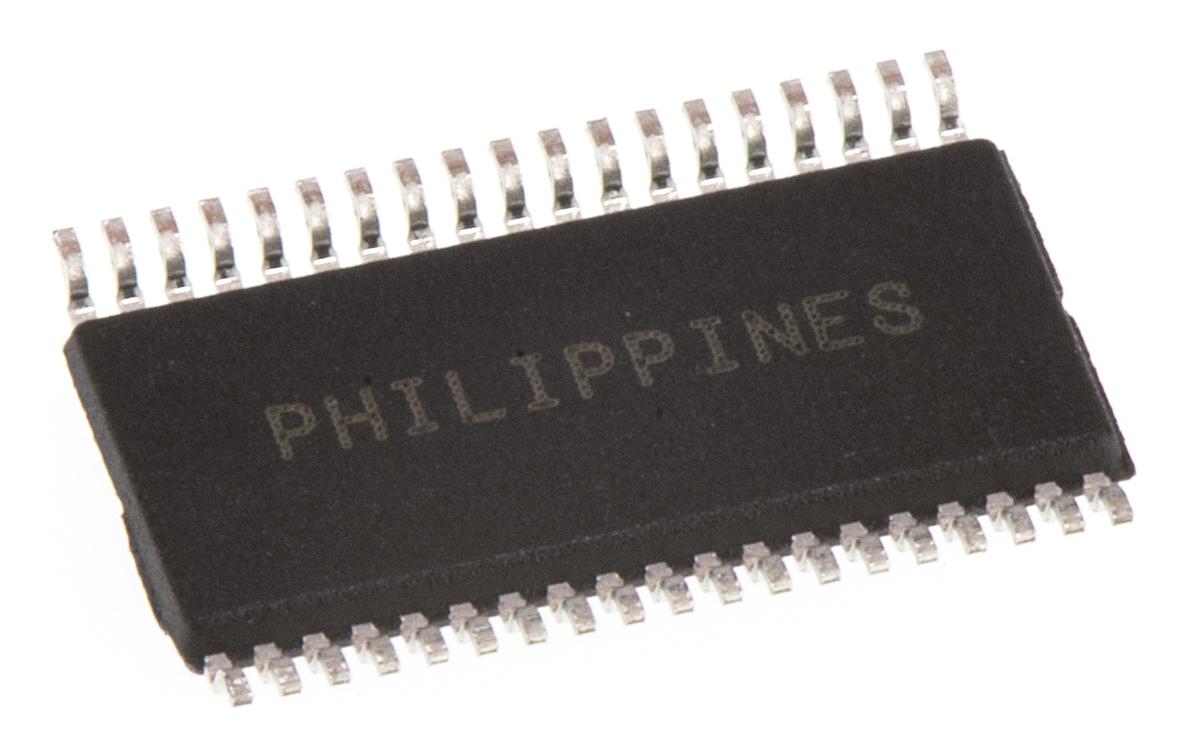

Analog Devices AD5547BRUZ, 2-channel 16 bit Parallel DAC, 2Msps, 38-Pin TSSOP
Product Information
Conversion Rate:
2Msps
Integral Nonlinearity Error:
±2LSB
Dimensions:
9.7 x 4.4 x 1.05mm
Mounting Type:
Surface Mount
Number of DAC Channels:
2
Power Supply Type:
Single
Minimum Operating Temperature:
-40 °C
Maximum Settling Time:
0.5µs
Digital Interface Type:
Parallel
Typical Single Supply Voltage:
5 V
Full Scale Error:
±4mV
Package Type:
TSSOP
Architecture:
R-2R, Resistor String
Output Polarity:
Unipolar
Voltage Reference:
External
Maximum Operating Temperature:
125 °C
Resolution:
16 bit
Pin Count:
38
Checking for live stock
FAQs
Yes. You can also search AD5547BRUZ on website for other similar products.
We accept all major payment methods for all products including ET13948506. Please check your shopping cart at the time of order.
You can order Analog Devices brand products with AD5547BRUZ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Digital to Analogue Converters category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices AD5547BRUZ, 2-channel 16 bit Parallel DAC, 2Msps, 38-Pin TSSOP. You can also check on our website or by contacting our customer support team for further order details on Analog Devices AD5547BRUZ, 2-channel 16 bit Parallel DAC, 2Msps, 38-Pin TSSOP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13948506 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13948506.
Yes. We ship AD5547BRUZ Internationally to many countries around the world.
This is 2-channel 16 bit Parallel DAC 2Msps 38-Pin TSSOP manufactured by Analog Devices. The manufacturer part number is AD5547BRUZ. Its conversion rate is 2msps . Its integral nonlinearity error is ±2lsb . The given dimensions of the product include 9.7 x 4.4 x 1.05mm. The product is available in surface mount configuration. Additionally, it includes 2 standard DAC channels . It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 0.5µs setting time . Additionally, the product has a/an parallel type digital interface . It has a typical single supply voltage of 5 v. It has a full scale error of ±4mv . The package is a sort of tssop. The product has been designed as r-2r, resistor string. It has unipolar polarity . The product has external voltage reference. It has a maximum operating temperature of 125 °c. Features 16 bit resolution. It contains 38 pins.
