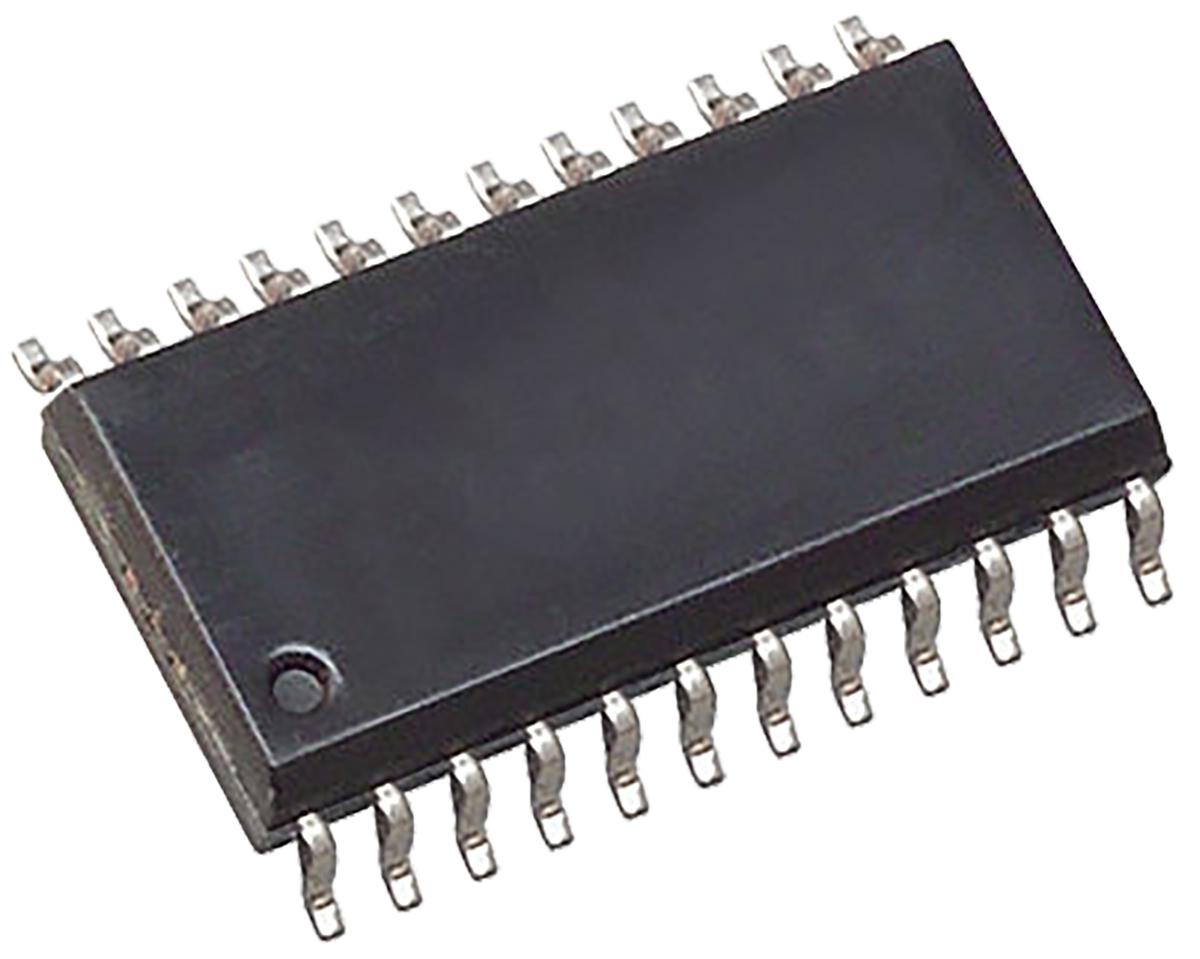

Analog Devices AD8842ARZ, 8-channel 8 bit Serial DAC, 500ksps, 24-Pin SOIC W

Enrgtech Part No: ET13813656
|
Manufacturer Part No:
AD8842ARZ
|
Manufacturer: Analog Devices

AD8842ARZ Analog Devices , 8-channel 8 bit Serial DAC, 500ksps, 24-Pin SOIC W

Product Information

Conversion Rate:

500ksps

Integral Nonlinearity Error:

±1LSB

Dimensions:

15.6 x 7.6 x 2.35mm

Mounting Type:

Surface Mount

Number of DAC Channels:

Power Supply Type:

Dual

Minimum Operating Temperature:

-40 °C

Maximum Settling Time:

5.4µs

Digital Interface Type:

Serial (SPI)

Full Scale Error:

2LSB

Package Type:

SOIC W

Architecture:

R-2R, Resistor String

Checking for live stock

This is 8-channel 8 bit Serial DAC 500ksps 24-Pin SOIC W manufactured by Analog Devices. The manufacturer part number is AD8842ARZ. Its conversion rate is 500ksps . Its integral nonlinearity error is ±1lsb . The given dimensions of the product include 15.6 x 7.6 x 2.35mm. The product is available in surface mount configuration. Additionally, it includes 8 standard DAC channels . It is a type of dual power supply. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 5.4µs setting time . Additionally, the product has a/an serial (spi) type digital interface . It has a full scale error of 2lsb . The package is a sort of soic w. The product has been designed as r-2r, resistor string. It has bipolar polarity . The product has external voltage reference. It has a maximum operating temperature of 85 °c. Features 8 bit resolution. It contains 24 pins.

AD8842 8-Bit Octal, 4-Quadrant Multiplying, CMOS TrimDAC Data Sheet(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search AD8842ARZ on website for other similar products.

We accept all major payment methods for all products including ET13813656. Please check your shopping cart at the time of order.

You can order Analog Devices brand products with AD8842ARZ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Digital to Analogue Converters category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Analog Devices AD8842ARZ, 8-channel 8 bit Serial DAC, 500ksps, 24-Pin SOIC W. You can also check on our website or by contacting our customer support team for further order details on Analog Devices AD8842ARZ, 8-channel 8 bit Serial DAC, 500ksps, 24-Pin SOIC W.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET13813656 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13813656.

Yes. We ship AD8842ARZ Internationally to many countries around the world.
