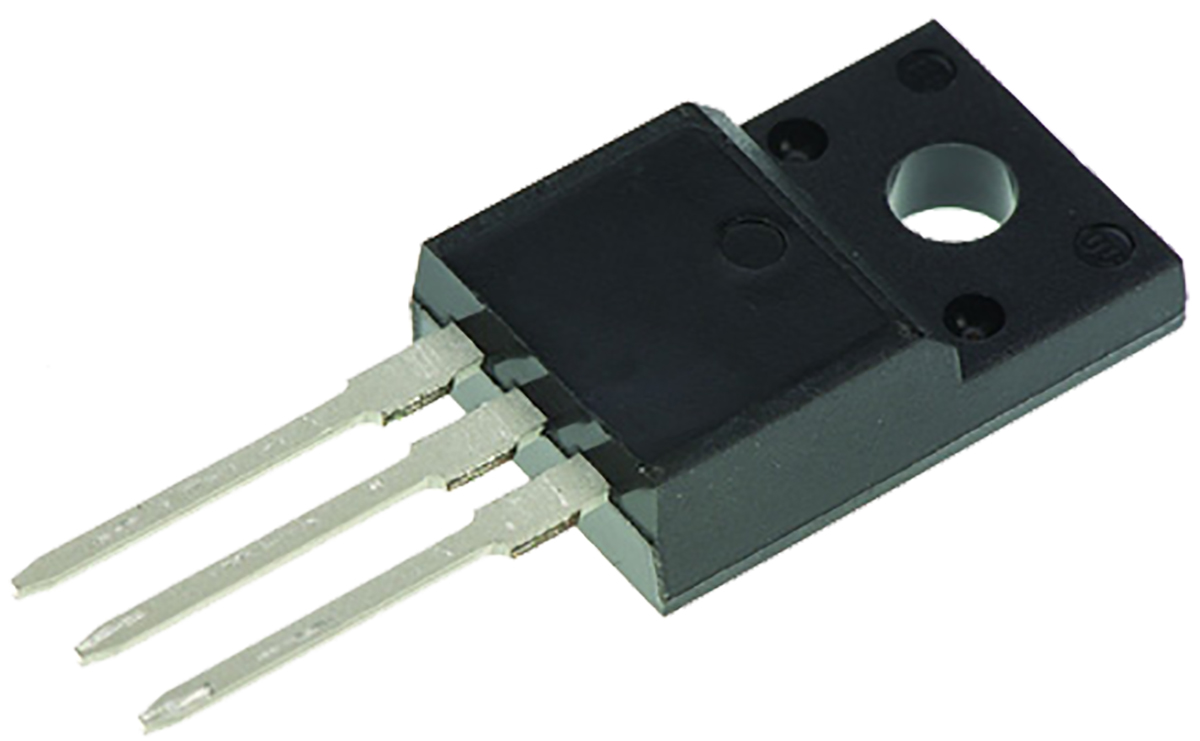

Toshiba TTD1409B,S4X(S Dual NPN Darlington Pair, 6 A 400 V HFE:100, 3-Pin TO-220SIS

TTD1409B-S4X-S Toshiba TTD1409B,S4X(S Dual NPN Darlington Pair, 6 A 400 V HFE:100, 3-Pin TO-220SIS
TTD1409B-S4X-S Toshiba TTD1409B,S4X(S Dual NPN Darlington Pair, 6 A 400 V HFE:100, 3-Pin TO-220SIS
Toshiba

Product Information

Maximum Continuous Collector Current:
6 A
Minimum DC Current Gain:
100
Transistor Type:
NPN
Dimensions:
10 x 4.5 x 15mm
Mounting Type:
Through Hole
Maximum Power Dissipation:
25 W @ 25 °C
Maximum Operating Temperature:
+150 °C
Maximum Collector Base Voltage:
600 V
Maximum Collector Emitter Voltage:
400 V
Maximum Base Emitter Saturation Voltage:
2.5 V
Maximum Collector Cut-off Current:
20µA
Height:
15mm
Width:
4.5mm
Length:
10mm
Package Type:
TO-220SIS
Number of Elements per Chip:
2
Maximum Collector Emitter Saturation Voltage:
2 V
Maximum Emitter Base Voltage:
5 V
Configuration:
Single
Base Current:
1A
Pin Count:
3
Checking for live stock

This is Dual NPN Darlington Pair 6 A 400 V HFE:100 3-Pin TO-220SIS manufactured by Toshiba. The manufacturer part number is TTD1409B,S4X(S. The product has a maximum 6 a continuous collector current . It features up to 100 of minimum DC current gain. The transistor is a npn type. The given dimensions of the product include 10 x 4.5 x 15mm. The product is available in through hole configuration. Provides up to 25 w @ 25 °c maximum power dissipation. It has a maximum operating temperature of +150 °c. Additionally, it has 600 v maximum collector base voltage. Whereas features a 400 v of collector emitter voltage (max). In addition, the product has a maximum 2.5 v base emitter saturation voltage . It has a maximum 20µa collector cut-off current . In addition, the height is 15mm. Furthermore, the product is 4.5mm wide. Its accurate length is 10mm. The package is a sort of to-220sis. It consists of 2 elements per chip. The product has a maximum 2 v collector emitter saturation voltage . It features a 5 v of maximum emitter base voltage. The product is available in single configuration. With 1a of base current . It contains 3 pins.

pdf icon
TTD1409B NPN Darlington Transistor Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship TTD1409B,S4X(S Internationally to many countries around the world.
Yes. You can also search TTD1409B,S4X(S on website for other similar products.
We accept all major payment methods for all products including ET16798067. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16798067 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Toshiba" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16798067.
You can order Toshiba brand products with TTD1409B,S4X(S directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Darlington Pairs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Toshiba TTD1409B,S4X(S Dual NPN Darlington Pair, 6 A 400 V HFE:100, 3-Pin TO-220SIS. You can also check on our website or by contacting our customer support team for further order details on Toshiba TTD1409B,S4X(S Dual NPN Darlington Pair, 6 A 400 V HFE:100, 3-Pin TO-220SIS.
