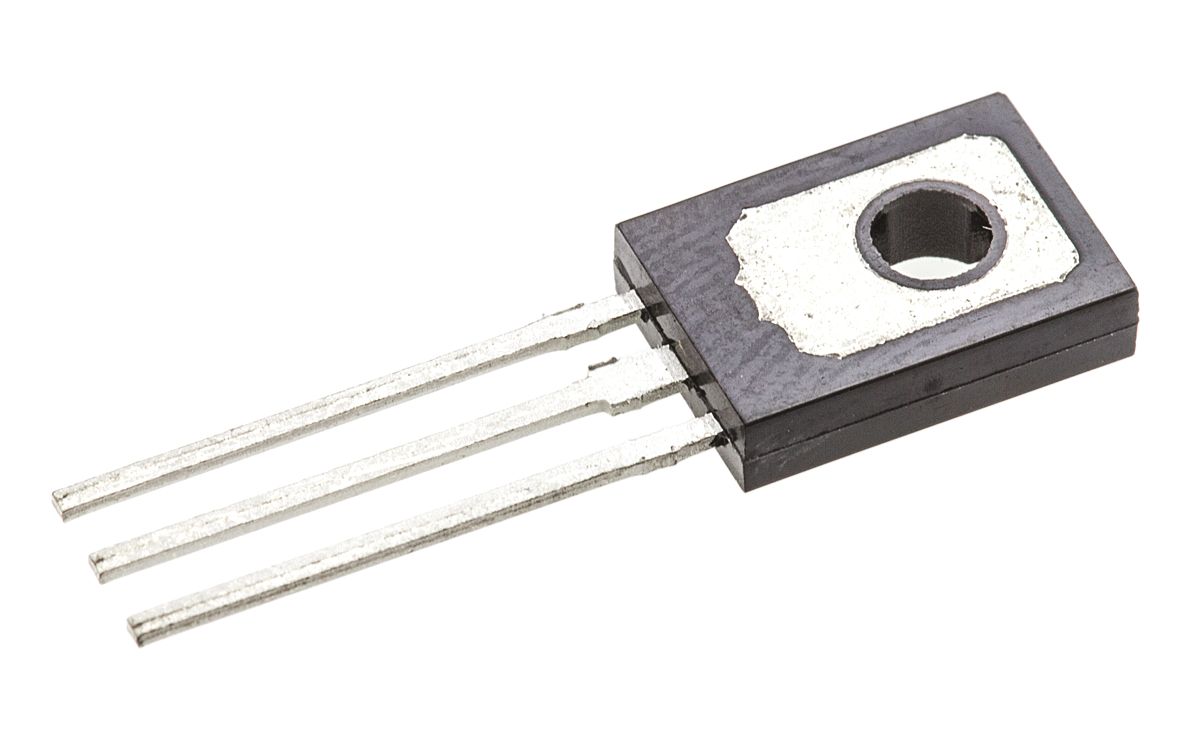

Magnatec BD679 NPN Darlington Pair, 4 A 80 V HFE:750, 3-Pin SOT-32

Enrgtech Part No: ET14070298
|
Manufacturer Part No:
BD679
|
Manufacturer: Magnatec

BD679 Magnatec NPN Darlington Pair, 4 A 80 V HFE:750, 3-Pin SOT-32

Product Information

Minimum DC Current Gain:

750

Transistor Type:

NPN

Dimensions:

7.8 x 2.7 x 10.8mm

Mounting Type:

Through Hole

Maximum Emitter Base Voltage:

5 V

Maximum Continuous Collector Current:

4 A

Maximum Collector Base Voltage:

80 V

Maximum Collector Emitter Voltage:

80 V

Maximum Collector Cut-off Current:

0.2mA

Height:

10.8mm

Width:

2.7mm

Length:

7.8mm

Checking for live stock

The Magnatec BD679 is a high-performance NPN darlington pair transistor designed for power switching and amplifier applications requiring substantial current gain. This robust discrete semiconductor offers a remarkable minimum DC current gain (HFE) of 750, enabling control of large loads from small input signals. Packaged in a compact 3-pin SOT-32 through-hole configuration, the BD679 is rated for a maximum continuous collector current of 4 A and a collector-emitter voltage of 80 V. It operates reliably over a broad temperature range, making it suitable for demanding industrial and consumer electronics applications.

Benefits of Using the Magnatec BD679 NPN Darlington Pair

Using the BD679 darlington pair dramatically simplifies drive circuitry by providing an exceptionally high current gain (HFE: 750). This feature enables microcontrollers or low-current logic circuits to directly switch substantial power loads directly, reducing the need for intermediate driver stages and saving valuable PCB space in power-control designs.

Standout Features & Application Areas of the BD679 NPN Darlington Pair

Standout Features:
- High Current Gain (HFE): Minimum DC current gain of 750 for high-sensitivity switching.
- High Power Ratings: 4 A continuous collector current and 80 V collector-emitter voltage.
- Wide Operating Temperature Range: Operates reliably from -65 °C to +150 °C.
- Industry-standard SOT-32 through-hole package for reliable mounting.
Application Areas:
- Driving high-current loads like relays, solenoids, and DC motors.
- Power supply and voltage regulation circuits.
- High-current switching in industrial and automotive controls.
- Output stages in low- to medium-power audio amplifiers.
