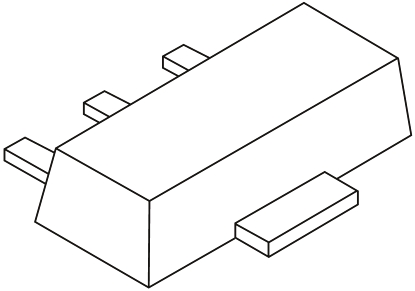

Nexperia BST51 Dual NPN Darlington Pair, 1 A 60 V HFE:1000, 3-Pin SOT-89

BST51 Nexperia  Dual NPN Darlington Pair, 1 A 60 V HFE:1000, 3-Pin SOT-89
Nexperia

Product Information

Dimensions:
4.6 x 2.6 x 1.6mm
Maximum Collector Emitter Saturation Voltage:
1.3 V
Maximum Collector Cut-off Current:
50nA
Width:
2.6mm
Transistor Configuration:
Single
Maximum Continuous Collector Current:
1 A
Package Type:
SOT-89
Number of Elements per Chip:
2
Maximum Operating Temperature:
+150 °C
Transistor Type:
NPN
Maximum Collector Base Voltage:
80 V
Maximum Base Emitter Saturation Voltage:
1.9 V
Maximum Emitter Base Voltage:
5 V
Length:
4.6mm
Pin Count:
3
Minimum DC Current Gain:
1000
Mounting Type:
Surface Mount
Maximum Power Dissipation:
1.3 W
Maximum Collector Emitter Voltage:
60 V
Height:
1.6mm
Minimum Operating Temperature:
-65 °C
RoHs Compliant
Checking for live stock

This is Dual NPN Darlington Pair 1 A 60 V HFE:1000 3-Pin SOT-89 manufactured by Nexperia. The manufacturer part number is BST51. The given dimensions of the product include 4.6 x 2.6 x 1.6mm. The product has a maximum 1.3 v collector emitter saturation voltage . It has a maximum 50na collector cut-off current . Furthermore, the product is 2.6mm wide. The product offers single transistor configuration. The product has a maximum 1 a continuous collector current . The package is a sort of sot-89. It consists of 2 elements per chip. It has a maximum operating temperature of +150 °c. The transistor is a npn type. Additionally, it has 80 v maximum collector base voltage. In addition, the product has a maximum 1.9 v base emitter saturation voltage . It features a 5 v of maximum emitter base voltage. Its accurate length is 4.6mm. It contains 3 pins. It features up to 1000 of minimum DC current gain. The product is available in surface mount configuration. Provides up to 1.3 w maximum power dissipation. Whereas features a 60 v of collector emitter voltage (max). In addition, the height is 1.6mm. Whereas, the minimum operating temperature of the product is -65 °c.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
BST50_51_52(Technical Reference)
