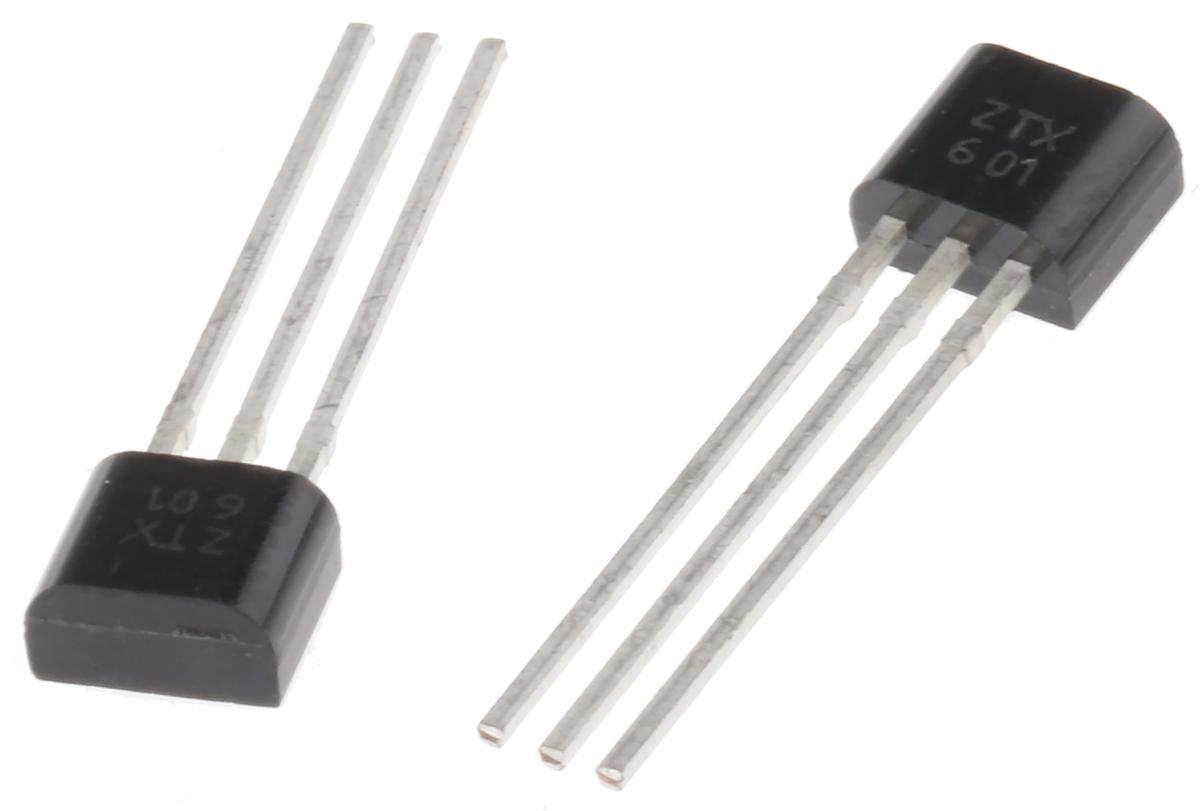

Diodes Inc ZTX601 NPN Darlington Pair, 1 A 160 V HFE:1000, 3-Pin E-Line
Product Information
Minimum DC Current Gain:
1000
Transistor Type:
NPN
Dimensions:
4.77 x 2.41 x 4.01mm
Mounting Type:
Through Hole
Maximum Emitter Base Voltage:
10 V
Maximum Continuous Collector Current:
1 A
Maximum Collector Base Voltage:
180 V
Maximum Collector Emitter Voltage:
160 V
Maximum Base Emitter Saturation Voltage:
1.9 V
Maximum Collector Cut-off Current:
0.00001mA
Height:
4.01mm
Width:
2.41mm
Length:
4.77mm
Package Type:
E-Line
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Collector Emitter Saturation Voltage:
1.2 V
Maximum Operating Temperature:
+200 °C
Pin Count:
3
Transistor Configuration:
Single
Checking for live stock
FAQs
Yes. You can also search ZTX601 on website for other similar products.
We accept all major payment methods for all products including ET13950754. Please check your shopping cart at the time of order.
You can order DiodesZetex brand products with ZTX601 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Darlington Pairs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Diodes Inc ZTX601 NPN Darlington Pair, 1 A 160 V HFE:1000, 3-Pin E-Line. You can also check on our website or by contacting our customer support team for further order details on Diodes Inc ZTX601 NPN Darlington Pair, 1 A 160 V HFE:1000, 3-Pin E-Line.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13950754 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13950754.
Yes. We ship ZTX601 Internationally to many countries around the world.
This is Diodes Inc NPN Darlington Pair 1 A 160 V HFE:1000 3-Pin E-Line manufactured by DiodesZetex. The manufacturer part number is ZTX601. It features up to 1000 of minimum DC current gain. The transistor is a npn type. The given dimensions of the product include 4.77 x 2.41 x 4.01mm. The product is available in through hole configuration. It features a 10 v of maximum emitter base voltage. The product has a maximum 1 a continuous collector current . Additionally, it has 180 v maximum collector base voltage. Whereas features a 160 v of collector emitter voltage (max). In addition, the product has a maximum 1.9 v base emitter saturation voltage . It has a maximum 0.00001ma collector cut-off current . In addition, the height is 4.01mm. Furthermore, the product is 2.41mm wide. Its accurate length is 4.77mm. The package is a sort of e-line. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. The product has a maximum 1.2 v collector emitter saturation voltage . It has a maximum operating temperature of +200 °c. It contains 3 pins. The product offers single transistor configuration.
