Molex MINI-FIT 5556 Crimp Terminal Contact, Female, 0.2mm² to 0.8mm², 24AWG to 18AWG, Tin Plating

Enrgtech Part No: ET16896992
|
Manufacturer Part No:
39-00-0059
|
Manufacturer: Molex

39-00-0059 Molex MINI-FIT 5556 Crimp Terminal Contact, Female, 0.2mm² to 0.8mm², 24AWG to 18AWG, Tin Plating

Product Information

Minimum Wire Size mm²:

0.2mm²

Maximum Wire Size mm²:

0.8mm²

Maximum Current:

Maximum Contact Resistance:

10mΩ

Gender:

Female

Termination Method:

Crimp

Minimum Wire Size AWG:

24AWG

Contact Plating:

Tin

Series:

Mini-Fit

For Use With:

Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings

Maximum Wire Size AWG:

18AWG

Contact Material:

Phosphor Bronze

Checking for live stock

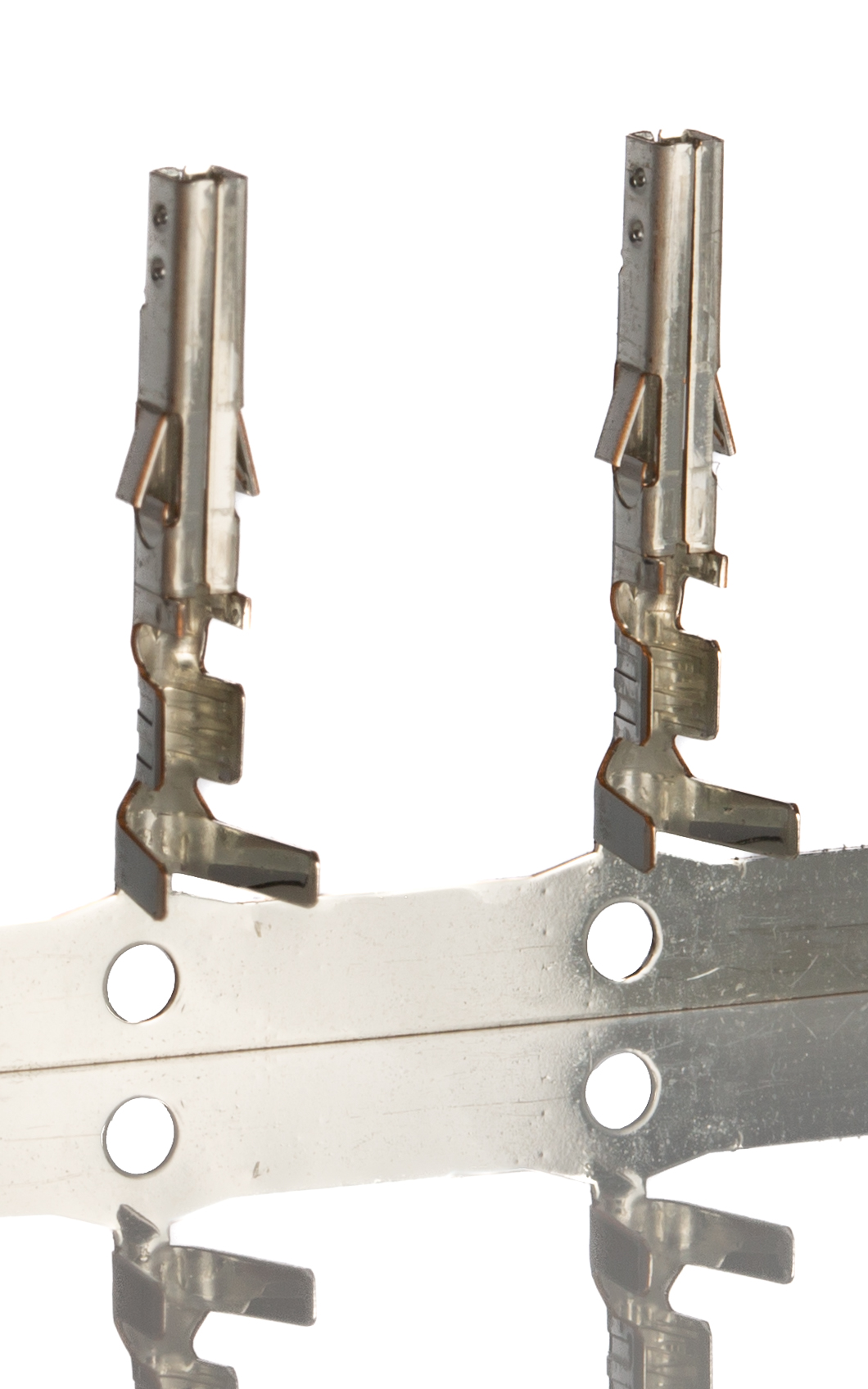

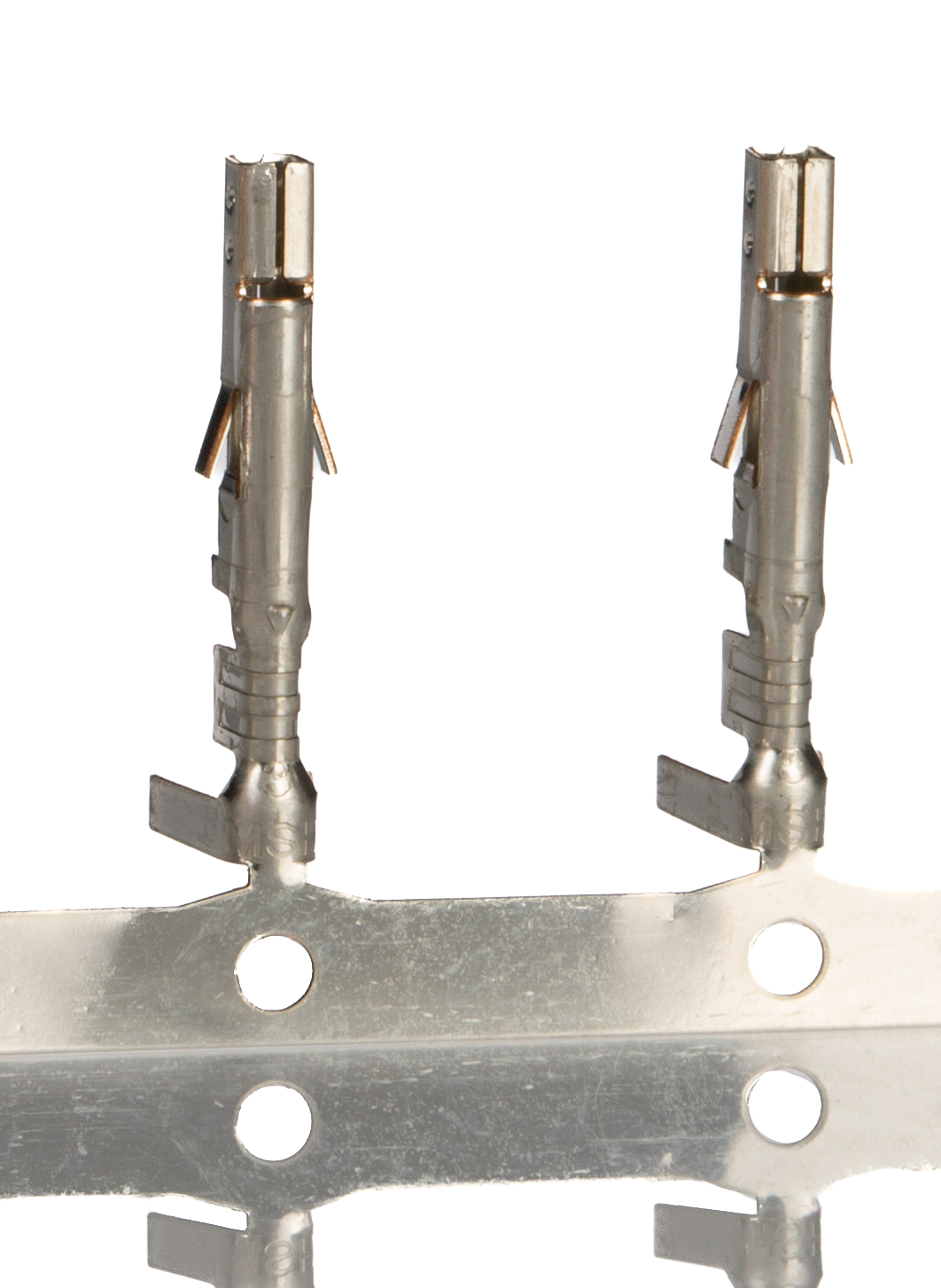

The Molex 39-00-0059 is a precision-engineered female crimp terminal created for the Mini-Fit 5556 series power connector systems. It comes with a tin (Sn) plated phosphor-bronze construction to ensure reliable conductivity and long-term corrosion resistance. These terminals are supplied on a reel, optimised for high-volume automated assembly processes, and are suitable for wire-to-wire or wire-to-board power applications in industrial and electronic equipment.

Salient Features and Benefits of Choosing the Molex Crimp Terminal Contact

Designed for the Mini-Fit 5556 series, enabling compatibility with a wide range of power housings.
Tin plating over phosphor-bronze base material ensures reliable electrical contact and corrosion resistance.
Reel packaging supports high-volume automated insertion and crimping processes.
Rated to operate at wire insulation diameters from 1.30 to 3.10 mm, facilitating diverse cabling environments.
Specified for up to 600 V (depending on housing system) and 9 A current in typical configurations.

Built for Reliable Power Connections

This robust terminal delivers consistent electrical performance in demanding environments. The phosphor-bronze core provides a strong mechanical spring force and resilience to repeated mating cycles. Designed for use with established Mini-Fit housings, this terminal helps designers build high-density, low-profile power connector arrays without compromising safety or service life.

Application Potential of the Product

Wire-to-wire power harnesses in industrial machinery and control cabinets.
Wire-to-board power connections in servers, telecom systems, and enclosures.
Automated assembly in high-volume appliance or consumer electronics applications.
Retrofitting or maintenance of Mini-Fit power systems in automotive or EV charging infrastructure.
