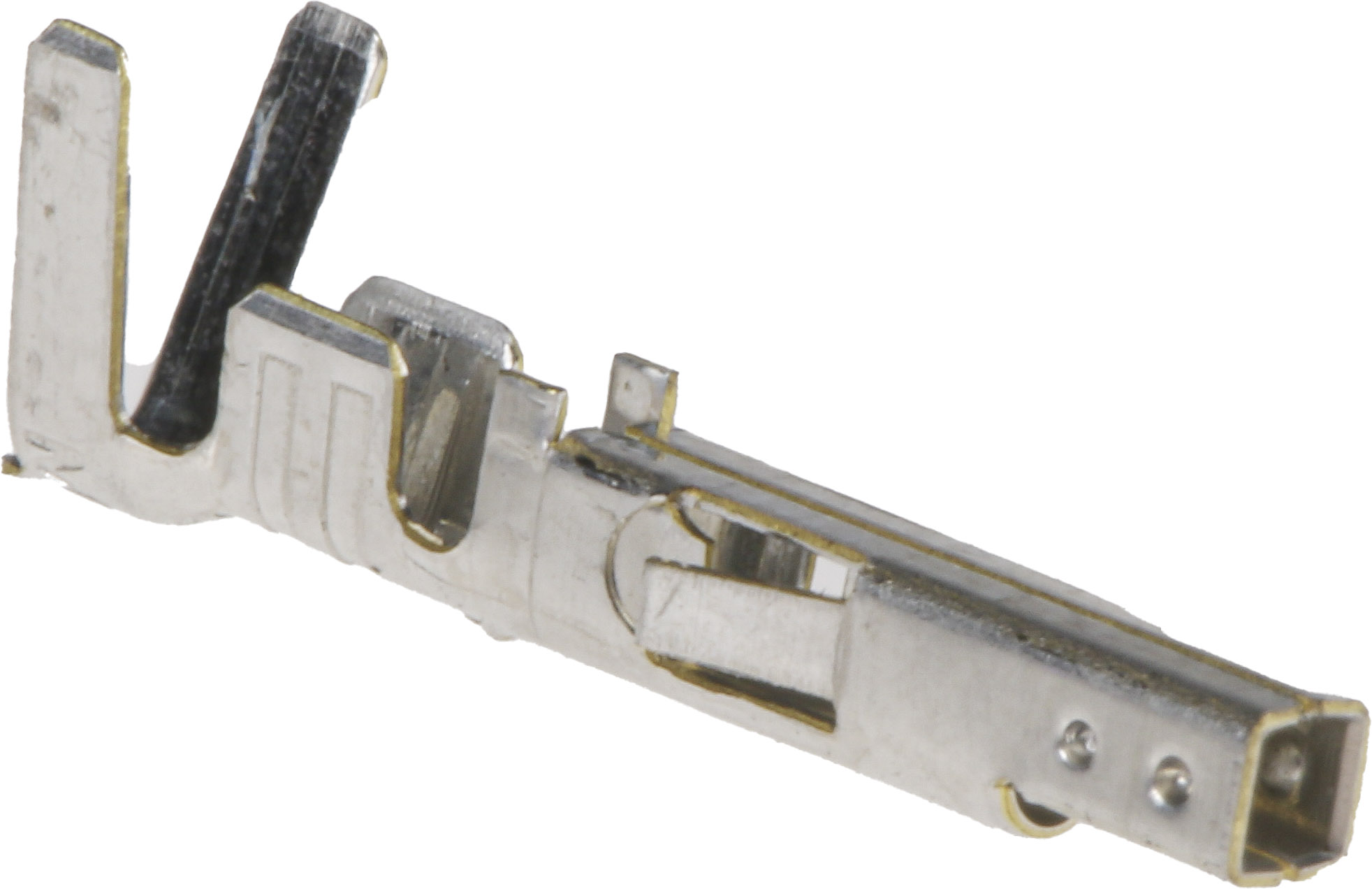

Molex 39-00-0038, MINI-FIT, Female Crimp Terminal Contact, Tin Plating 5556, 0.2mm² to 0.8mm², 24AWG to 18AWG

Enrgtech Part No: ET16777983
|
Manufacturer Part No:
39-00-0038
|
Manufacturer: Molex

39-00-0038 Molex , MINI-FIT, Female Crimp Terminal Contact, Tin Plating 5556, 0.2mm² to 0.8mm², 24AWG to 18AWG

Product Information

Minimum Wire Size mm²:

0.2mm²

Maximum Wire Size mm²:

0.8mm²

Maximum Current:

Maximum Contact Resistance:

10mΩ

Gender:

Female

Termination Method:

Crimp

Minimum Wire Size AWG:

24AWG

Contact Plating:

Tin

Series:

Mini-Fit

For Use With:

5557 Mini-Fit Jr. Receptacle Housing, 44516 Mini-Fit BMI Slide and Lock Panel Mount, Mini-Fit BMI Panel Mount Receptacle Housing

Maximum Wire Size AWG:

18AWG

Contact Material:

Brass

Checking for live stock

The Molex 39-00-0038 is a female crimp terminal contact designed for use in the MINI-FIT family of connectors. This versatile and reliable terminal contact is characterised by its tin plating and compatibility with a wide range of wire sizes, making it a vital component in various electrical and electronic applications.

MINI-FIT Connector Compatibility

The 39-00-0038 female crimp terminal contact is designed explicitly with Molex's MINI-FIT connectors, a widely used and trusted family of connectors known for their robust performance and versatility.

Distinguishing Features and Benefits of the Female Crimp Contact

The terminal contact is tin-plated, which offers several features and advantages, such as:

This female crimp terminal contact is compatible with a broad range of wire sizes, ranging from 0.2mm² (approximately 24AWG) to 0.8mm² (approximately 18AWG).
The 39-00-0038 contact is designed for crimp termination, a secure and efficient method of attaching wires to terminals.
Crimping provides a mechanically robust and electrically reliable connection, reducing the risk of intermittent connections or disconnections.

Use Cases of the Molex 39-00-0038, MINI-FIT, Female Crimp Terminal Contact, Tin Plating.

The Molex 39-00-0038 female crimp’s compatibility with a wide range of wire sizes, tin plating for corrosion resistance, and ease of crimp termination make it an essential choice for various electrical and electronic applications across multiple industries, including:

Electronics: It is commonly used in electronic equipment, circuit boards, and wiring harnesses for reliable electrical connections.
Automotive: The contact's compatibility with various wire sizes makes it suitable for automotive applications, from engine control modules to in-vehicle infotainment systems.
Industrial: It can be found in industrial control systems, machinery, and automation equipment.
Aerospace: Its tin-plated construction resists corrosion and oxidation, making it suitable for aerospace applications.
