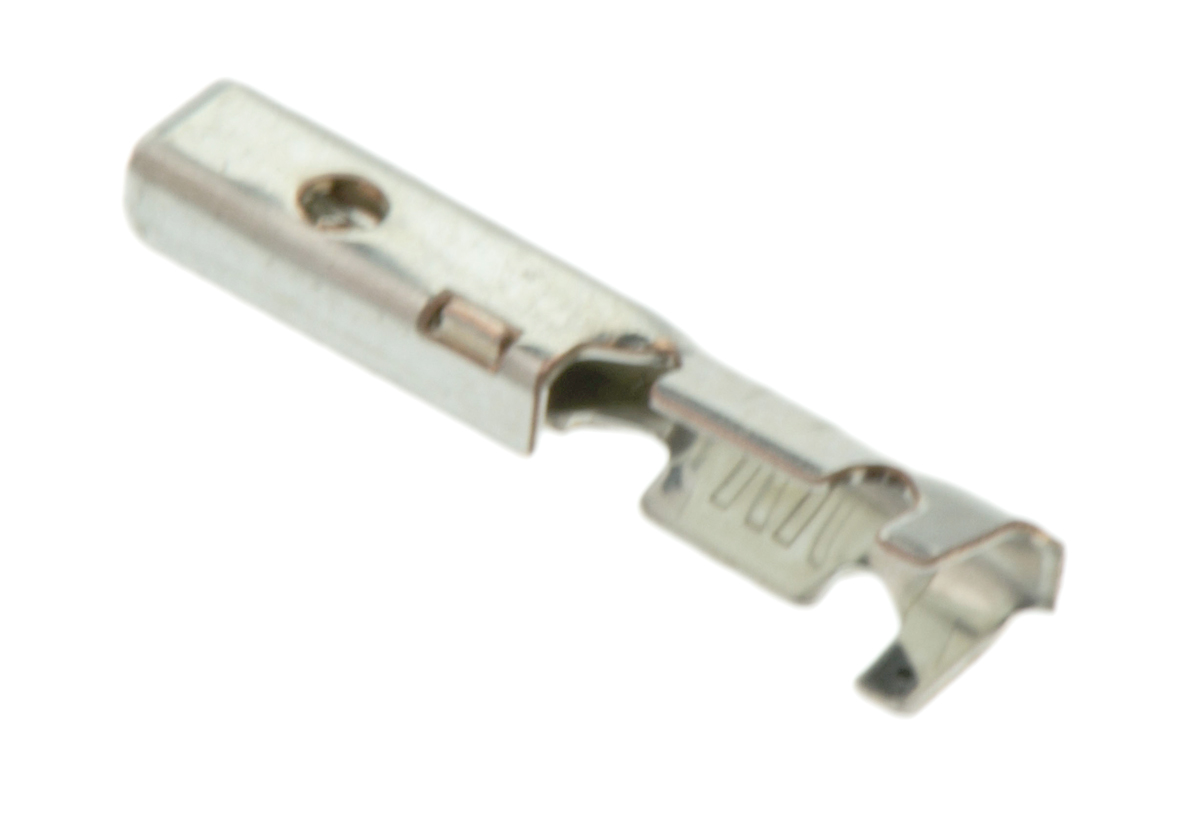

JST JWPF Crimp Terminal Contact, Female, 0.1mm² to 0.3mm², 26AWG to 22AWG, Tin Plating

SWPR-001T-P025 JST JWPF Crimp Terminal Contact, Female, 0.1mm² to 0.3mm², 26AWG to 22AWG, Tin Plating
SWPR-001T-P025
JST

Product Information

Maximum Wire Size mm²:
0.33mm²
Maximum Current:
3A
Maximum Contact Resistance:
15mΩ
Gender:
Female
Termination Method:
Crimp
Minimum Wire Size AWG:
26AWG
Contact Plating:
Tin
Series:
JWPF
For Use With:
JWPF Connector Housing
Maximum Wire Size AWG:
22AWG
Minimum Wire Size mm²:
0.13mm²
Maximum Operating Temperature:
+85°C
Minimum Operating Temperature:
-55°C
Contact Material:
Copper Alloy
RoHs Compliant
Checking for live stock

This is JWPF Crimp Terminal Contact Female 0.1mm² to 0.3mm² 26AWG to 22AWG Tin Plating manufactured by JST. The manufacturer part number is SWPR-001T-P025. The wire has a maximum size of 0.33mm². It also carries 3a maximum current. Additionally, it has a maximum 15mω contact resistance . In addition, female is the available "Gender" of the product. It allows crimp termination method. While the minimum wire size AWG includes 26awg. The high-quality tin is used as contact plating material. The product jwpf, is a highly preferred choice for users. The product is highly suitable for jwpf connector housing. Its maximum wires size includes 22awg. On the other hand, the wire has 0.13mm² of minimum size. It has a maximum operating temperature of +85°c. Whereas, the minimum operating temperature of the product is -55°c. The product is made from sturdy copper alloy materials.

pdf icon
JWPF Series Wire to Wire 2.0mm pitch Connector - Catalogue Pages(Technical Reference)
