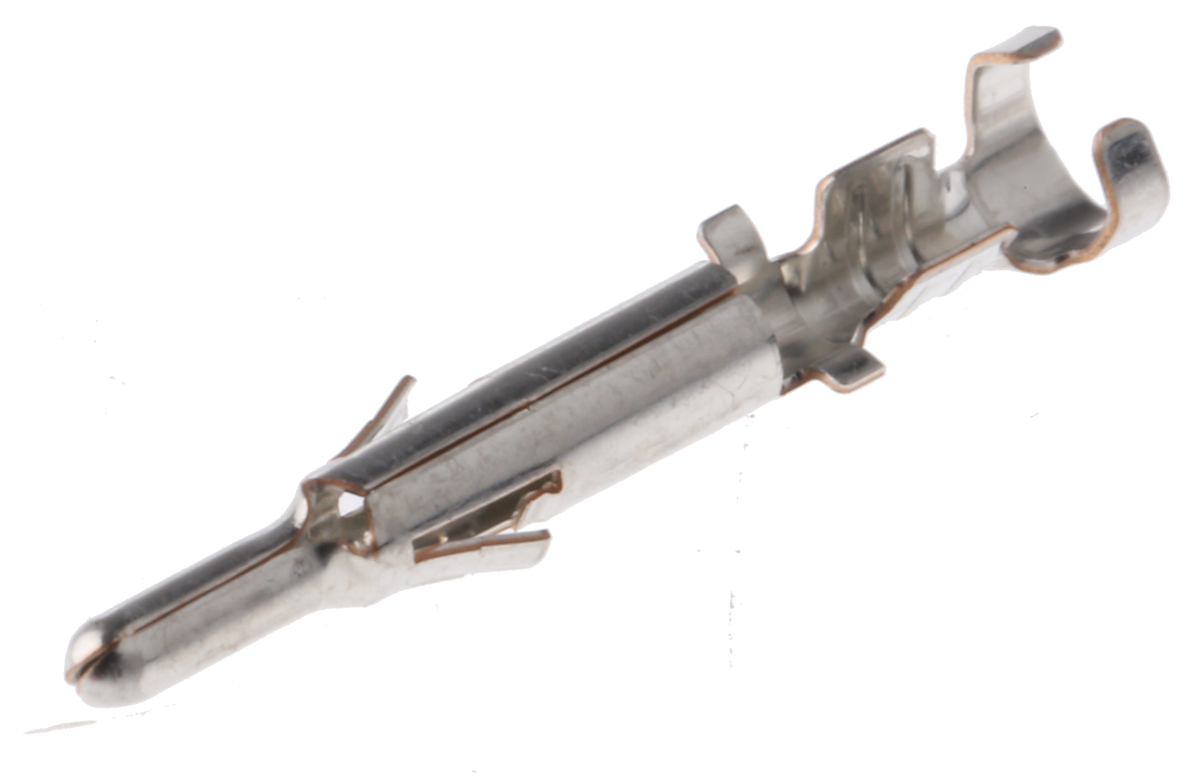

JST EL Crimp Terminal Contact, Male, 0.1mm² to 0.5mm², 26AWG to 20AWG, Tin Plating

LLM-01T-P1-3E JST EL Crimp Terminal Contact, Male, 0.1mm² to 0.5mm², 26AWG to 20AWG, Tin Plating
LLM-01T-P1.3E
JST

Product Information

Maximum Wire Size mm²:
0.5mm²
Maximum Current:
5A
Maximum Contact Resistance:
10mΩ
Gender:
Male
Termination Method:
Crimp
Minimum Wire Size AWG:
26AWG
Contact Plating:
Tin
Series:
EL
For Use With:
EL Connector Housing
Maximum Wire Size AWG:
20AWG
Minimum Wire Size mm²:
0.1mm²
Maximum Operating Temperature:
+90°C
Minimum Operating Temperature:
-25°C
Contact Material:
Phosphor Bronze
RoHs Compliant
Checking for live stock

This is EL Crimp Terminal Contact Male 0.1mm² to 0.5mm² 26AWG to 20AWG Tin Plating manufactured by JST. The manufacturer part number is LLM-01T-P1.3E. The wire has a maximum size of 0.5mm². It also carries 5a maximum current. Additionally, it has a maximum 10mω contact resistance . In addition, male is the available "Gender" of the product. It allows crimp termination method. While the minimum wire size AWG includes 26awg. The high-quality tin is used as contact plating material. The product el, is a highly preferred choice for users. The product is highly suitable for el connector housing. Its maximum wires size includes 20awg. On the other hand, the wire has 0.1mm² of minimum size. It has a maximum operating temperature of +90°c. Whereas, the minimum operating temperature of the product is -25°c. The product is made from sturdy phosphor bronze materials.
