Manufacturer : Molex
Manufacturer Part No : 39-00-0207
Enrgtech Part No : ET14022650
Product Range : PolySwitch RXEF Series

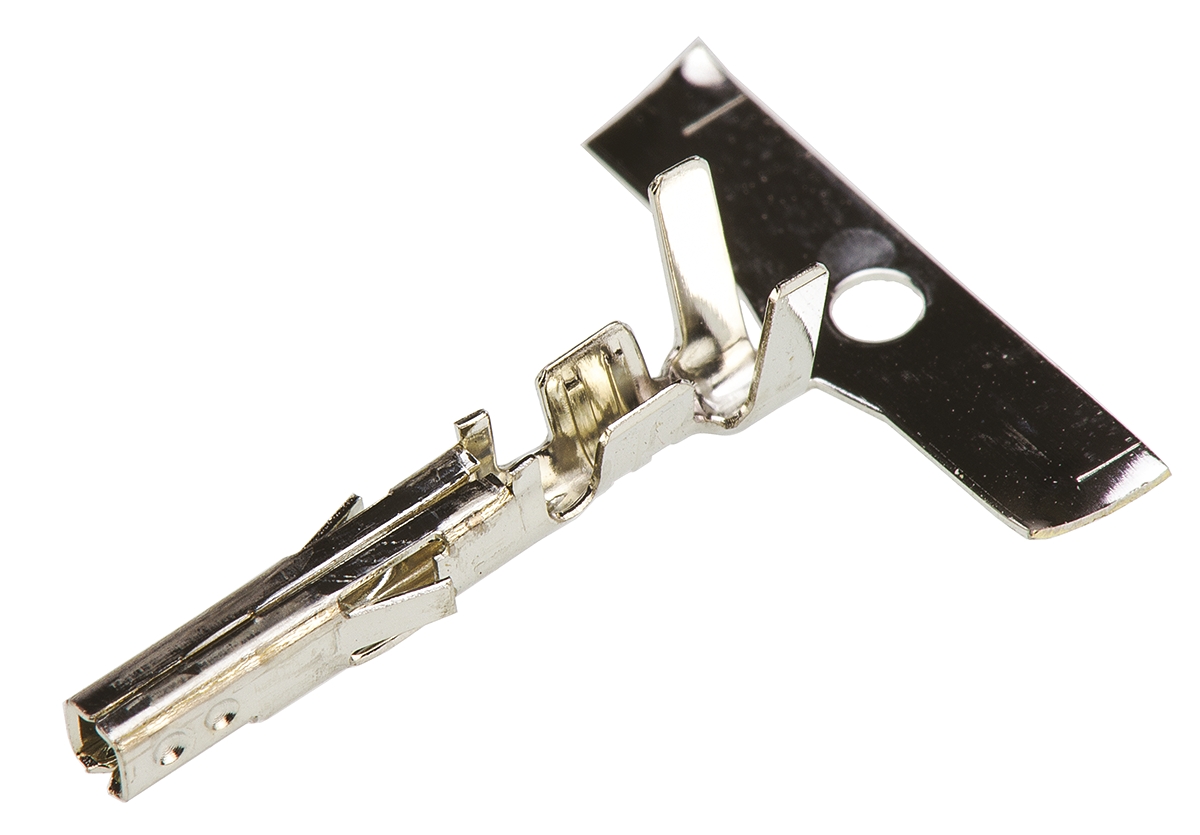

Molex MINI-FIT, 5556 Series Number Crimp Terminal, Female, 24AWG to 18AWG, Tin over Nickel Plating

Mini-Fit Junior Crimp Contacts A range of Mini-Fit Jr. Crimp Terminal Contacts. HCS Contacts Series 44476, 44478 and 44485: provide an additional 3A/circuit, whilst utilising the same shells. Molex Minifit Jr.™ Series The Mini-Fit Jr.™ series is a range of single and dual row, high current/high density wire-to-wire (free or via a panel) and wire-to-board connectors, for both power and signal applications. HCS contacts provide even greater power in the same size shells. The Molex Mini-Fit Jr. range has: 4.2mm pitch, fully isolated terminals, positive housing locks, low-engagement forces and polarized housings. Products in the Mini-Fit Jr. range are UL recognized, CSA approved and TUV licensed as well as all components being lead-free and RoHS compliant. Housing Nylon 6/6 94V-2 OR Nylon 6/6 94V-0 Terminals Tin plated brass Voltage rating 600V (r.m.s.) Standard contacts HCS contacts Current rating 2-way 9A 12A 4, 6-way 8A 11A 8, 10-way 7A 10A 12-way and greater 9A Contact resistance 10mΩ max. Insulation resistance 1000MΩ min. Dielectric strength 1500V a.c.

Product Information

Minimum Wire Size mm² : 0.2mm²
Maximum Wire Size mm² : 0.8mm²
Maximum Contact Resistance : 10mΩ
Gender : Female
Termination Method : Crimp
Minimum Wire Size AWG : 24AWG
Contact Plating : Tin
Series : Mini-Fit
For Use With : Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings
Maximum Wire Size AWG : 18AWG
Contact Material : Brass
Maximum Operating Temperature : +105°C
Minimum Operating Temperature : -40°C
rohs : RoHS Certificate of Compliance
Series Number : 5556
