Manufacturer : Molex
Manufacturer Part No : 39-00-0081
Enrgtech Part No : ET14022647
Product Range : PolySwitch RXEF Series

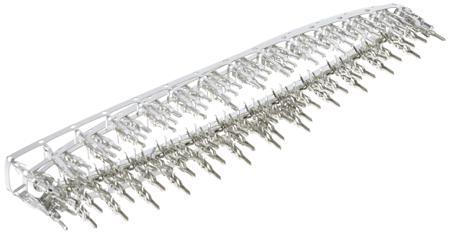

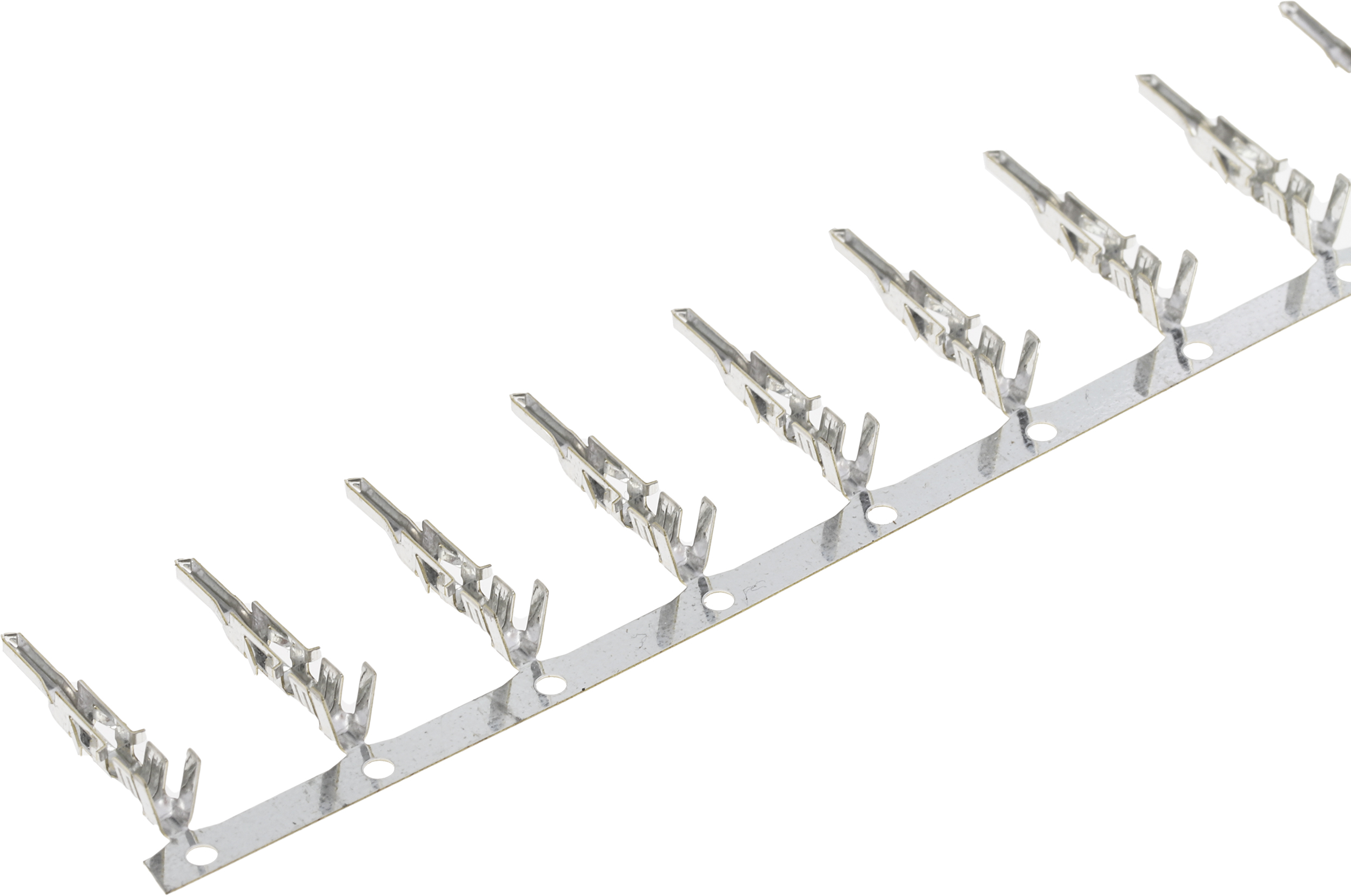

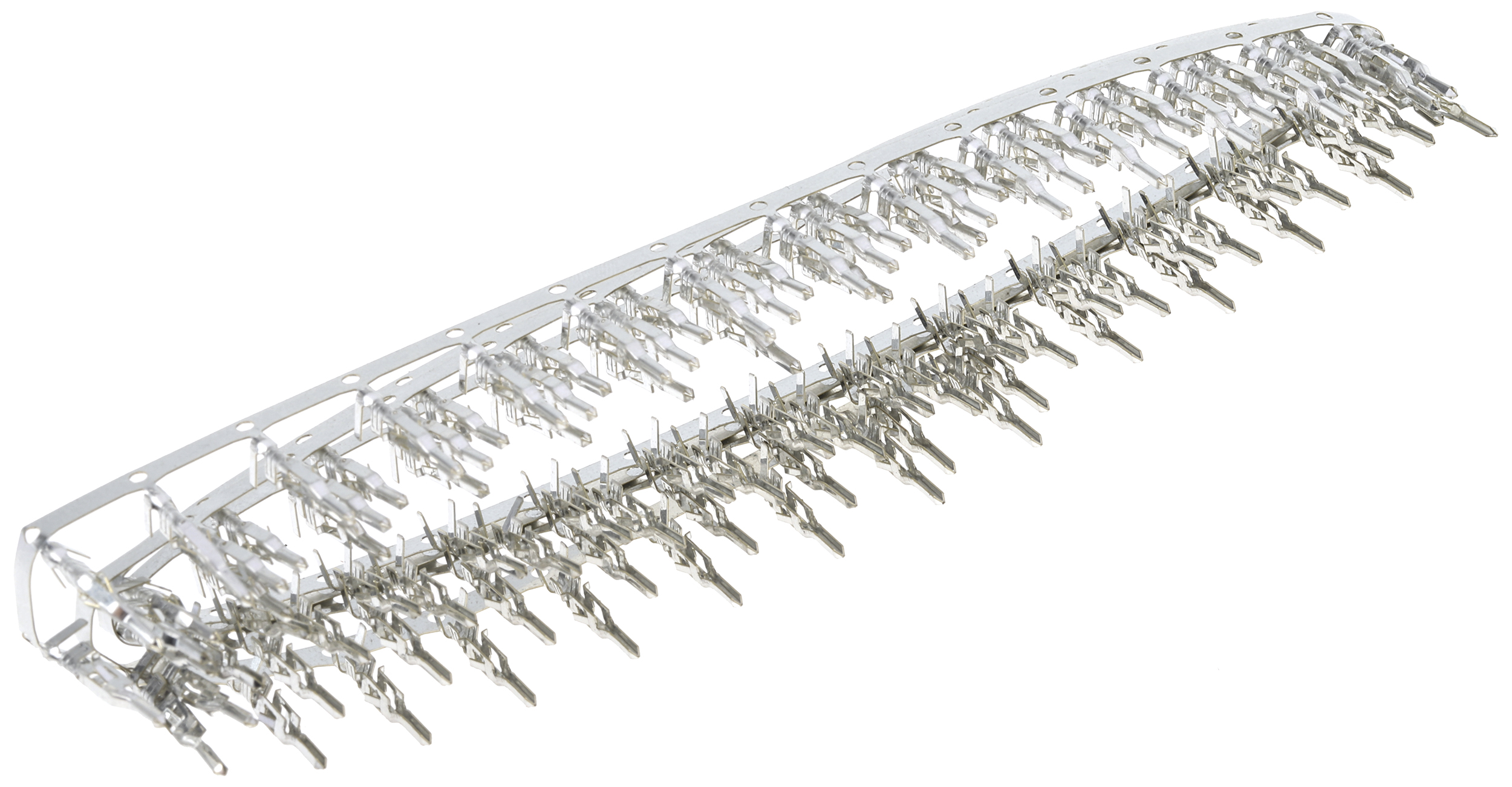

Molex MINI-FIT, 5558 Series Number Crimp Terminal, Male, 16AWG to 16AWG, Tin over Nickel Plating

Mini-Fit Junior Crimp Contacts A range of Mini-Fit Jr. Crimp Terminal Contacts. HCS Contacts Series 44476, 44478 and 44485: provide an additional 3A/circuit, whilst utilising the same shells. Molex Minifit Jr.™ Series The Mini-Fit Jr.™ series is a range of single and dual row, high current/high density wire-to-wire (free or via a panel) and wire-to-board connectors, for both power and signal applications. HCS contacts provide even greater power in the same size shells. The Molex Mini-Fit Jr. range has: 4.2mm pitch, fully isolated terminals, positive housing locks, low-engagement forces and polarized housings. Products in the Mini-Fit Jr. range are UL recognized, CSA approved and TUV licensed as well as all components being lead-free and RoHS compliant. Housing Nylon 6/6 94V-2 OR Nylon 6/6 94V-0 Terminals Tin plated brass Voltage rating 600V (r.m.s.) Standard contacts HCS contacts Current rating 2-way 9A 12A 4, 6-way 8A 11A 8, 10-way 7A 10A 12-way and greater 9A Contact resistance 10mΩ max. Insulation resistance 1000MΩ min. Dielectric strength 1500V a.c.

Product Information

Minimum Operating Temperature : -40°C
Maximum Contact Resistance : 10mΩ
Gender : Male
Termination Method : Compression, Crimp
Contact Plating : Tin
Series : Mini-Fit
For Use With : 5559 Mini-Fit Jr. Plug Housings, 30068 Mini-Fit TPA Plug Housings, 42475 Mini-Fit BMI Plug Housings
Maximum Wire Size AWG : 16AWG
Contact Material : Brass
Maximum Operating Temperature : +80 (Formed Brass) °C, +105 (Solid Brass) °C
rohs : RoHS Certificate of Compliance
Series Number : 5558
