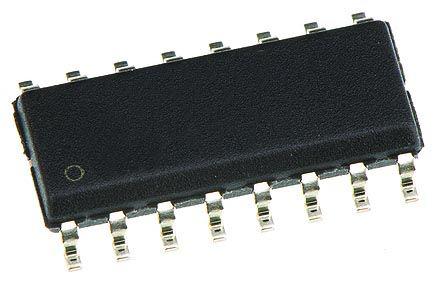

NXP HEF4021BT,652 8-stage Shift Register, Parallel to Serial, 3 → 15 V, 16-Pin SOIC

HEF4021BT-652 NXP HEF4021BT,652 8-stage Shift Register, Parallel to Serial, 3 → 15 V, 16-Pin SOIC
NXP

Product Information

Number of Elements:
1
Dimensions:
10 x 4 x 1.45mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Minimum Operating Supply Voltage:
3 V
Logic Function:
Shift Register
Operation Mode:
Parallel to Serial
Logic Family:
HEF
Height:
1.45mm
Width:
4mm
Length:
10mm
Package Type:
SOIC
Number of Stages:
8
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
15 V
Triggering Type:
Positive Edge
Maximum Operating Temperature:
+125 °C
Pin Count:
16
RoHs Compliant
Checking for live stock

This is 8-stage Shift Register Parallel to Serial 3 → 15 V 16-Pin SOIC manufactured by NXP. The manufacturer part number is HEF4021BT,652. It carries 1 elements. The given dimensions of the product include 10 x 4 x 1.45mm. The product is available in surface mount configuration. While is configured as uni-directional. While its minimum operating supply voltage is 3 v. The primary function of logic includes shift register. Its operation mode is parallel to serial . The logic family is hef. In addition, the height is 1.45mm. Furthermore, the product is 4mm wide. Its accurate length is 10mm. The package is a sort of soic. It includes 8 stages. Whereas, the minimum operating temperature of the product is -40 °c. It has 15 v maximum operating supply voltage. It is tailored with a positive edge type triggering . It has a maximum operating temperature of +125 °c. It contains 16 pins.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
8-bit Static Shift Register Datasheet(Technical Reference)
