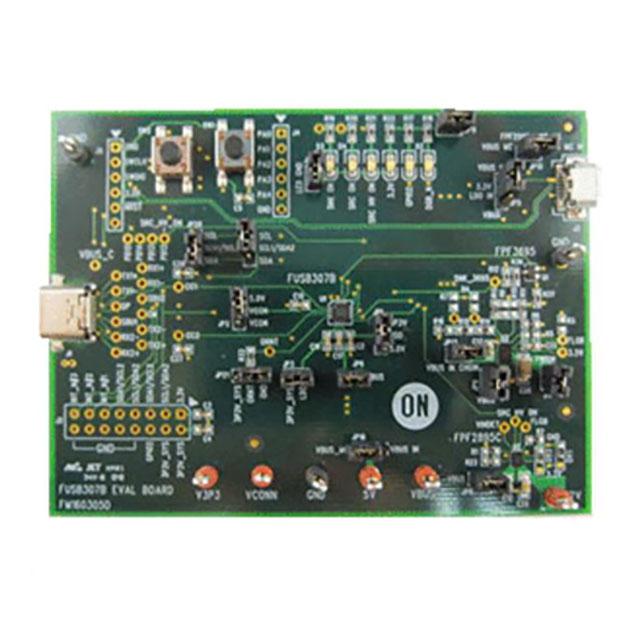

onsemi FUSB307BGEVB, Evaluation Board

Enrgtech Part No: ET21479799
|
Manufacturer Part No:
FUSB307BGEVB
|
Manufacturer: onsemi

(0)

Product Information

The FUSB307BGEVB by Onsemi is a cutting-edge evaluation board created to streamline and expedite the development of USB Type-C and Power Delivery applications. It is a comprehensive tool providing engineers with exceptional insight and control over the FUSB307B chip, a highly versatile USB PD controller that supports dynamic testing and optimization.

For Use With:

FUSB307BMPX

Featured Device:

FUSB307B

Kit Classification:

Evaluation Board

Kit Name:

Eval board for FUSB307B

HTSUS:

8473.30.1180

RoHS Status:

ROHS3 Compliant

Secondary Attributes:

Type:

Interface

Function:

USB Type-C®

Primary Attributes:

REACH Status:

REACH Unaffected

Embedded:

Checking for live stock

The Onsemi FUSB307BGEVB is a rugged and protean tool created for evaluating and testing the capabilities of the FUSB307B USB Type-C PD (Power Delivery) controller. It is a feature-rich and universal instrument that greatly benefits engineers and developers involved in USB Type-C PD implementations. Its comprehensive features, ease of use, and flexibility make it an essential component in evaluating, developing, and testing USB Type-C PD solutions. With its robust attributes and user-friendly design, this evaluation board enables engineers and developers to gain valuable insights into the performance and functionality of the FUSB307B controller.

Key Features of the onsemi FUSB307BGEVB, Evaluation Board Include:

FUSB307B USB Type-C PD Controller: The eval board is equipped with the FUSB307B controller, which supports USB Power Delivery 3.0 specifications and provides enhanced power negotiation and control features.
USB Type-C and USB PD Connectivity: The board includes a USB Type-C receptacle and multiple USB PD ports, allowing easy connectivity with various USB Type-C devices and power sources.
Debugging Interfaces: The eval board provides essential debugging interfaces, such as I2C and UART, to enable efficient monitoring, debugging, and firmware development.
Flexible Power Supply Options: It supports multiple power supply options, including USB Type-C and external power, providing flexibility for testing scenarios.
Programmable Power Parameters: Users can easily configure and customize power delivery parameters, such as voltage, current limits, and power profiles, through the evaluation board.

Typical Uses of onsemi FUSB307BGEVB, Evaluation Board:

Product Development: The eval board is a helpful tool for product development teams, enabling them to test and validate USB Type-C PD implementations and ensure product compatibility and reliability.
Firmware Development: It provides a platform for developers to test and refine their code, monitor communication between devices, and ensure proper power negotiation and delivery.
Compliance Testing: The board can be used for USB Type-C PD compliance testing, allowing engineers to verify adherence to industry standards and certifications.
Education and Training: The FUSB307BGEVB Eval Board is also a beneficial educational resource for institutes, training centres, and USB Type-C workshops, providing hands-on experience with USB Type-C PD regulators and power delivery systems.

Benefits Offered By oonsemi FUSB307BGEVB, Evaluation Board:

Rapid Evaluation and Testing: The evaluation board simplifies the process of evaluating the FUSB307B controller, allowing engineers to quickly assess its performance, reliability, and compatibility with different USB Type-C devices.
Efficient Development and Debugging: With its comprehensive set of debugging interfaces and software tools, the eval board streamlines the development and debugging process, helping engineers identify and resolve issues effectively.
Customization and Optimization: The board's programmable power parameters enable users to fine-tune power delivery settings according to their specific application requirements, facilitating the optimization and customization of USB Type-C PD implementations.
Real-World Testing Scenarios: The FUSB307BGEVB Eval Board allows engineers to mimic real-world techniques and evaluate the behaviour of the FUSB307B controller under different power profiles, device configurations, and load conditions.

Datasheet(Technical Reference)

FUSB307B(Datasheets)

onsemi RoHS(Environmental Information)
