Automotive Standard:
No
Maximum Power Dissipation Pd:
200W
Transistor Polarity:
PNP
Maximum Transition Frequency ft:
1MHz
Maximum Collector Base Voltage VCBO:
250V
Maximum Emitter Base Voltage VEBO:
5V
Maximum DC Collector Current Idc:
-15A
Height:
40.3mm
Width:
5 mm
Length:
15.8mm

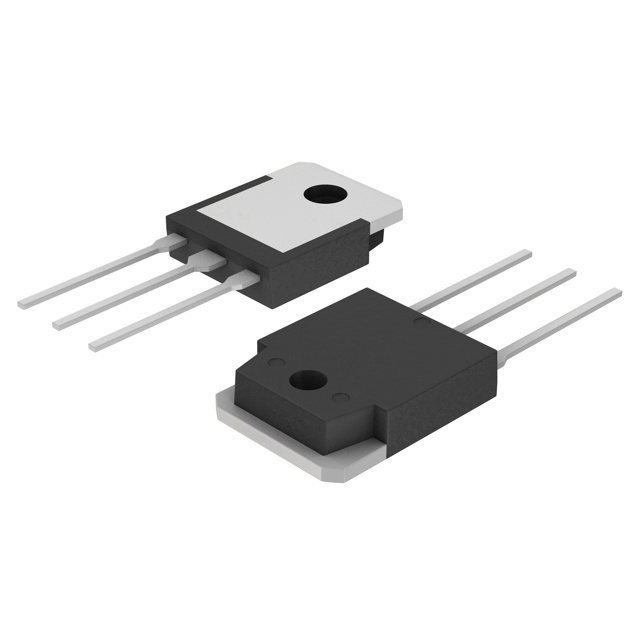

Package Type:
TO-3P
Minimum DC Current Gain hFE:
45
Minimum Operating Temperature:
-65°C
Transistor Configuration:
Single
Standards/Approvals:
No
Maximum Collector Emitter Voltage Vceo:
-250V
Product Type:
Transistor
Maximum Operating Temperature:
150°C
Pin Count:
3
Mount Type:
Through Hole
Current - Collector (Ic) (Max):
15 A
HTSUS:
8541.29.0075
RoHS Status:
ROHS3 Compliant
Voltage - Collector Emitter Breakdown (Max):
250 V
Operating Temperature:
-65°C ~ 150°C (TJ)
Package / Case:
TO-3P-3, SC-65-3
DC Current Gain (hFE) (Min) @ Ic, Vce:
75 @ 3A, 5V
Frequency - Transition:
30MHz
REACH Status:
REACH Unaffected
Transistor Type:
PNP
Vce Saturation (Max) @ Ib, Ic:
600mV @ 800mA, 8A
Moisture Sensitivity Level (MSL):
Not Applicable
standardLeadTime:
13 Weeks
Current - Collector Cutoff (Max):
50µA (ICBO)
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
TO-3P-3L
Packaging:
Tube
Power - Max:
200 W
Base Product Number:
NJW1302
ECCN:
EAR99
