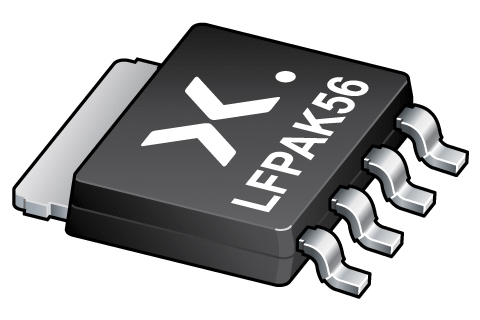

Nexperia PHPT61003NYX NPN Transistor, 3 A, 100 V, 4 + Tab-Pin LFPAK56, SOT669

PHPT61003NYX Nexperia NPN Transistor, 3 A, 100 V, 4 + Tab-Pin LFPAK56, SOT669
PHPT61003NYX Nexperia NPN Transistor, 3 A, 100 V, 4 + Tab-Pin LFPAK56, SOT669
Nexperia

Product Information

Transistor Polarity:
NPN
Maximum Transition Frequency ft:
140MHz
Width:
4.45 mm
Maximum Collector Emitter Voltage Vceo:
100V
Automotive Standard:
AEC-Q101
Transistor Configuration:
Single
Maximum Collector Base Voltage VCBO:
100V
Maximum DC Collector Current Idc:
3A
Package Type:
SOT-669
Minimum DC Current Gain hFE:
150
Product Type:
Transistor
Maximum Operating Temperature:
175°C
Length:
5mm
Standards/Approvals:
RoHS
Maximum Emitter Base Voltage VEBO:
7V
Pin Count:
5
Mount Type:
Surface
Maximum Power Dissipation Pd:
25W
Series:
PHPT61003N
Height:
1mm
Minimum Operating Temperature:
-55°C
RoHs Compliant
Checking for live stock

This is NPN Transistor 3 A 100 V 4 + Tab-Pin LFPAK56 SOT669 manufactured by Nexperia. The manufacturer part number is PHPT61003NYX. Furthermore, the product is 4.45 mm wide. The product complies with automotive standard - aec-q101. The product offers single transistor configuration. The package is a sort of sot-669. transistor is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 175°c. Its accurate length is 5mm. It contains 5 pins. It has a surface type mount . The product phpt61003n, is a highly preferred choice for users. In addition, the height is 1mm. Whereas, the minimum operating temperature of the product is -55°c.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship PHPT61003NYX Internationally to many countries around the world.
Yes. You can also search PHPT61003NYX on website for other similar products.
We accept all major payment methods for all products including ET16800338. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16800338 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16800338.
You can order Nexperia brand products with PHPT61003NYX directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Bipolar Transistors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nexperia PHPT61003NYX NPN Transistor, 3 A, 100 V, 4 + Tab-Pin LFPAK56, SOT669. You can also check on our website or by contacting our customer support team for further order details on Nexperia PHPT61003NYX NPN Transistor, 3 A, 100 V, 4 + Tab-Pin LFPAK56, SOT669.
