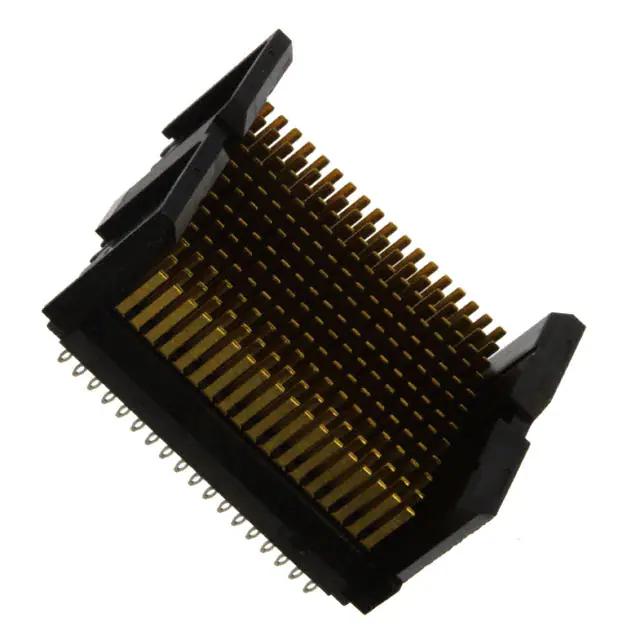

Amphenol FCI 10076197-101LF

10076197-101LF Amphenol FCI
10076197-101LF
Amphenol FCI

Product Information

Number of Columns:
12
Current Rating:
250mA
Gender:
Male
Body Orientation:
Straight
Pitch:
1.8mm
Termination Method:
Press-In
Housing Material:
Thermoplastic
Number of Rows:
18
Contact Plating:
Gold over Palladium Nickel
Series:
ZipLine
Number of Contacts:
216
Backplane Connector Type:
High Density
Contact Material:
Copper Alloy
Manufacturer Standard Lead Time:
15 Weeks
Connector Style:
High Density (HDC, HDI, HPC)
Contact Finish Thickness:
30.0µin (0.76µm)
Number of Positions:
216
Connector Usage:
Backplane
Number of Rows:
18
Standard Package:
27
Manufacturer:
Amphenol FCI
Number of Columns:
12
Contact Layout, Typical:
72 Signal Pairs, 72 Ground
Material Flammability Rating:
UL94 V-0
Connector Type:
Header, Male Pins
Contact Finish:
Gold or Gold, GXT™
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Press-Fit
Mounting Type:
Through Hole
Color:
Black
Series:
ZipLine™
Packaging:
Bulk
Pitch:
0.071" (1.80mm)
Other Names:
10076197101LF 609-3136
Number of Positions Loaded:
All
RoHs Compliant
Checking for live stock

This is manufactured by Amphenol FCI. The manufacturer part number is 10076197-101LF. It has a sum of 12 columns. The product has a current rating of 250ma. In addition, male is the available "Gender" of the product. It has straight body orientation. Moreover, the product is 1.8mm. It allows press-in termination method. The product also features robust thermoplastic housing material. It comes in 18 of rows. The high-quality gold over palladium nickel is used as contact plating material. The product zipline, is a highly preferred choice for users. The product contains 216 contacts. It has a high density type backplane connector . The product is made from sturdy copper alloy materials. It has typical 15 weeks of manufacturer standard lead time. It comes in high density (hdc, hdi, hpc) connector style. It has 30.0µin (0.76µm) of contact finishing thickness. The product carries possible position value of 216. While the connector is used as a backplane. It is available in the standard package of 27. The amphenol fci's product offers user-desired applications. The typical contact layout includes 72 signal pairs, 72 ground. It carries ul94 v-0 of material flammability rating. header, male pins Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold or gold, gxt™ contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features press-fit termination style. The product is available in through hole configuration. It has a classic black colour. The product zipline™, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. Moreover, the product is 0.071" (1.80mm). Alternative Names include 10076197101lf 609-3136. However, all is the Number of Positions Loaded.

pdf icon
10076197 Customer Drawing(Technical Reference)
pdf icon
Zipline/Location 04/Mar/2013(PCN Assembly/Origin)
pdf icon
10076197 Drawing(Datasheets)
pdf icon
499 (UK2011-EN PDF)(Catalog Page)
