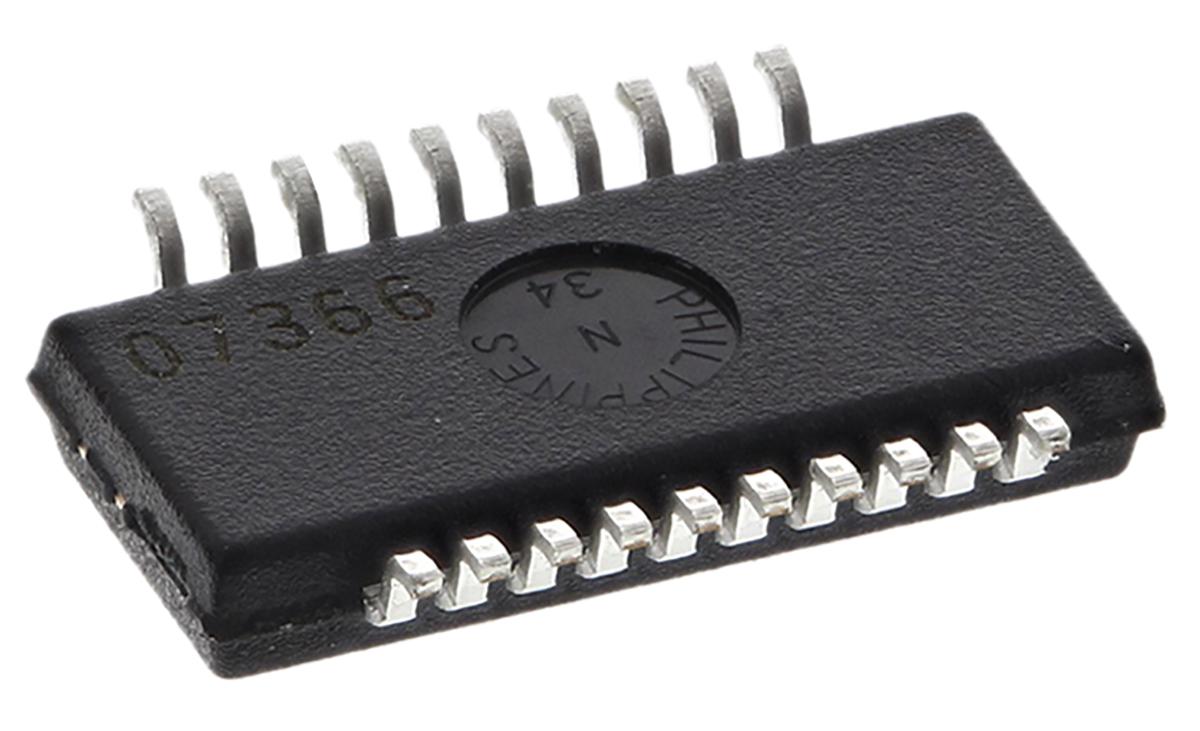

Image is for illustrative purposes only.
Please refer to product description.

manufacturer logo

Manufacturer : Analog Devices
Manufacturer Part No : AD8436ARQZ
Enrgtech Part No : ET14102255
Product Range : PolySwitch RXEF Series

Analog Devices AD8436ARQZ, True RMS-DC Converter 20-Pin, QSOP

RMS to DC Converters, Analog Devices A range of true RMS to DC Converters from Analog Devices. These products provide integrated circuit solutions to the requirement to accurately measure the true RMS level of complex AC or DC signals. Many of the devices have an additional logarithmic dB output making them ideally suited to audio applications.

Product Information

Dimensions : 8.76 x 4.01 x 1.65mm
Mounting Type : Surface Mount
Operating Temperature Range : -40 → +125 °C
Input Voltage Range : ±2.4 → ±18 (Dual) V, 4.8 → 36 (Single) V
Height : 1.65mm
Width : 4.01mm
Length : 8.76mm
Package Type : QSOP
Minimum Operating Temperature : -40 °C
Minimum Input Voltage : ±2.4 V, 36 V
Maximum Operating Temperature : +125 °C
Pin Count : 20
rohs : RoHS Certificate of Compliance
Maximum Input Voltage : ±18 V, 36 V

Technical Documents

  • Datasheet (Technical Reference)

Availability:
43
in stock
